Self-Diagnosis Procedure: Operation: Notes

WARNING: This page is about a different car, the 2003 Subaru Outback and 2003 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

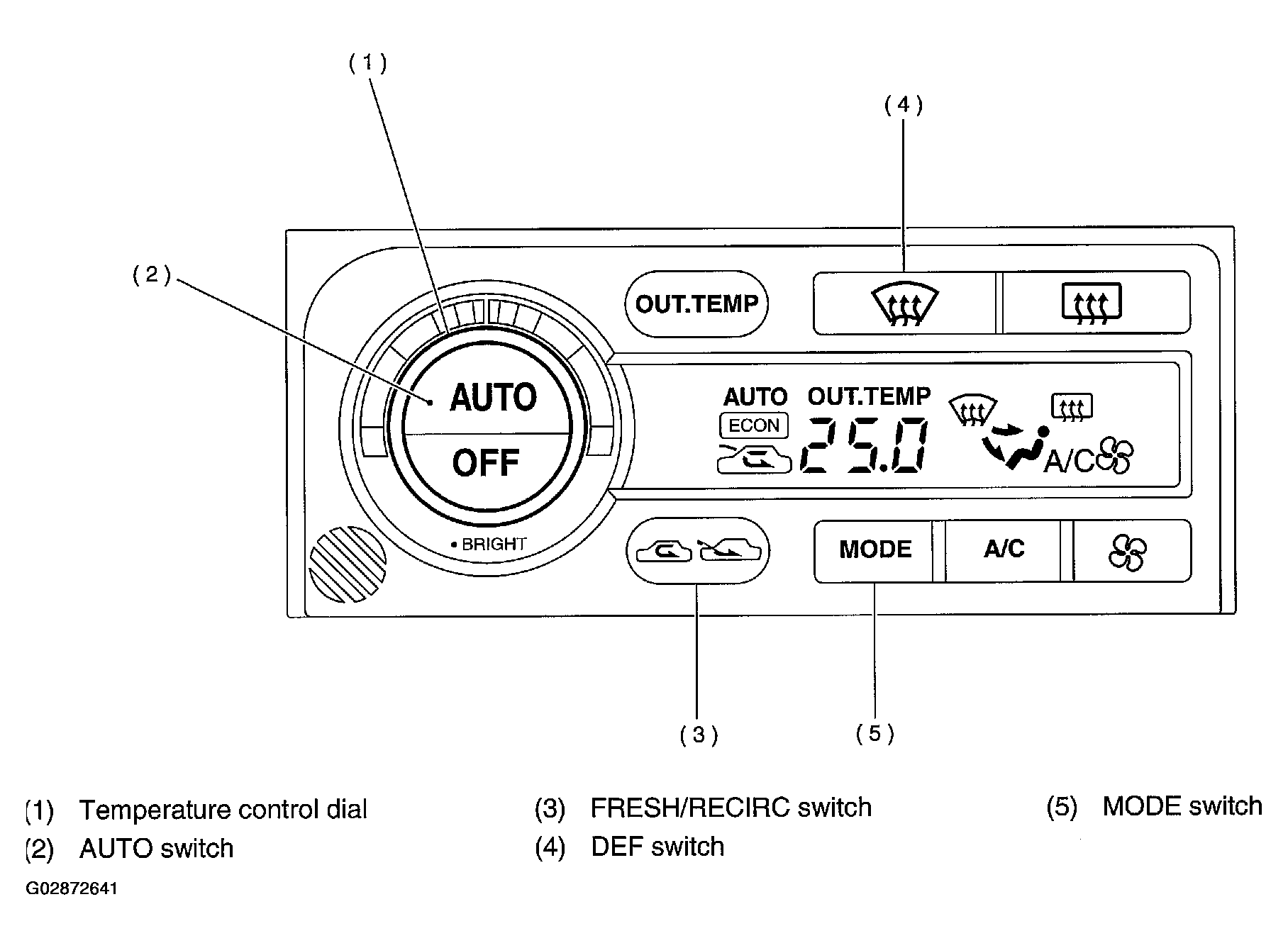

Fig 1: Identifying Self-Diagnosis Procedure Operation

Courtesy of SUBARU OF AMERICA, INC.

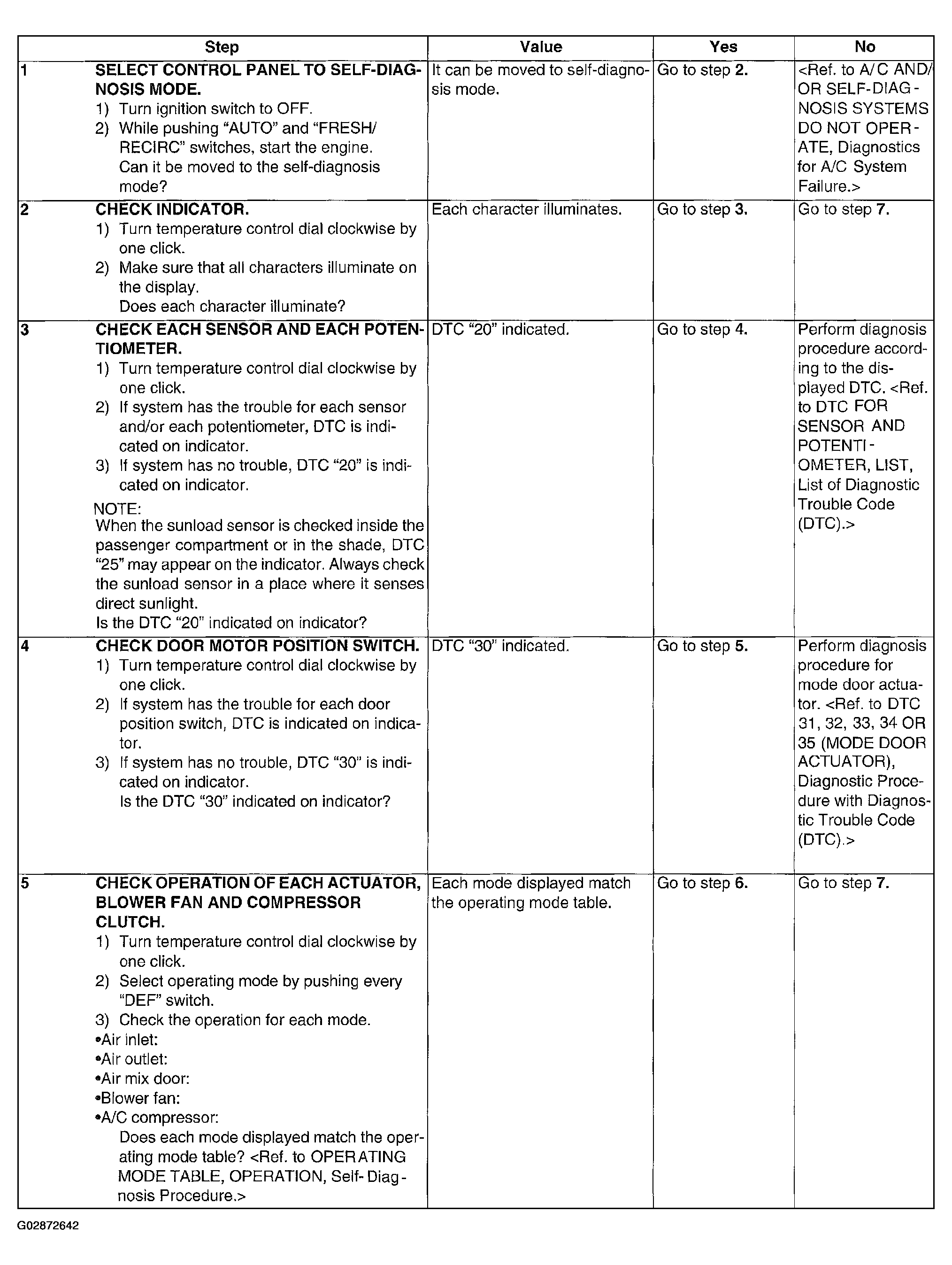

Fig 2: Self-Diagnosis Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

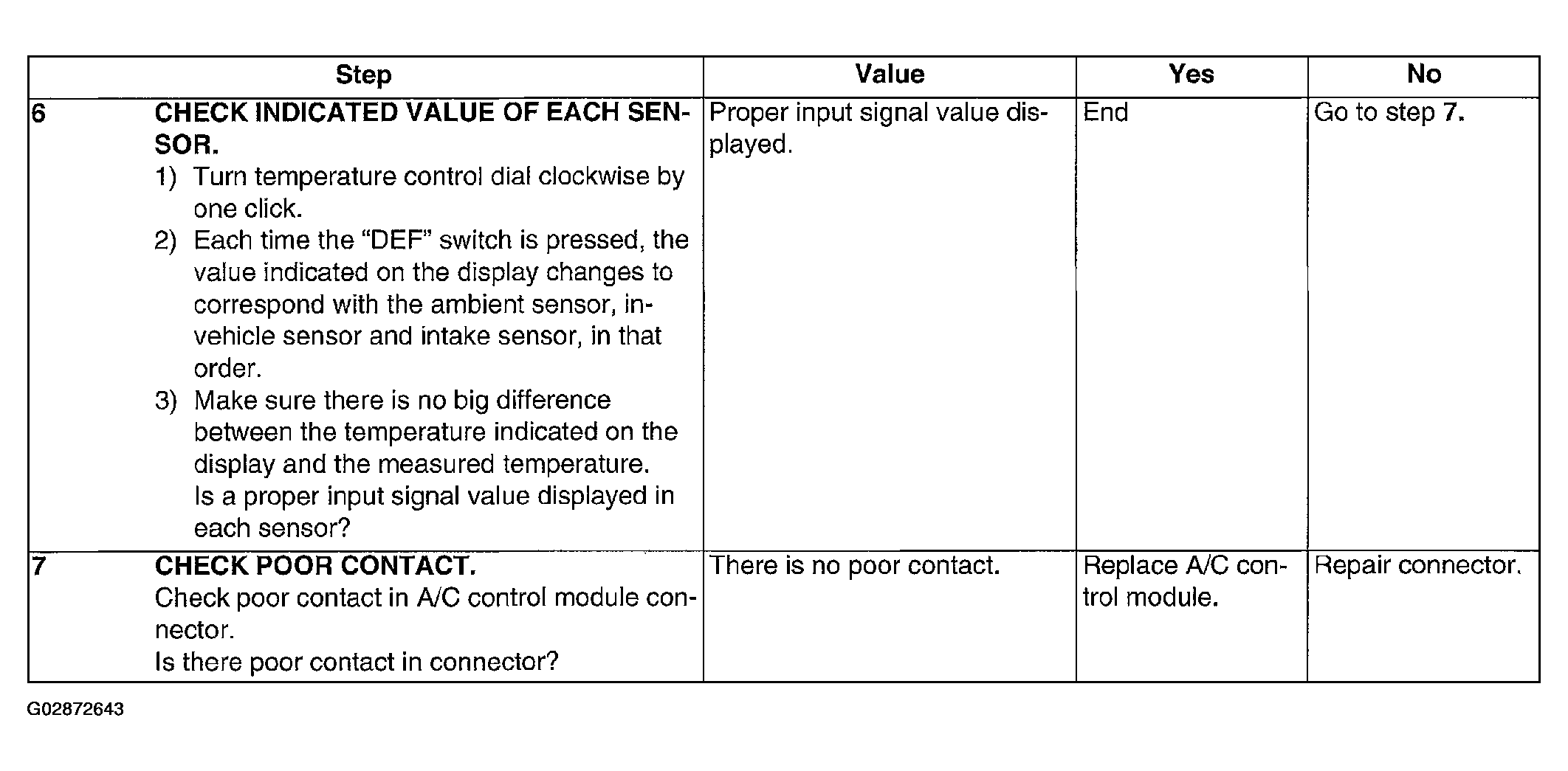

Fig 3: Self-Diagnosis Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
