Rear Combination Light Assembly: Removal: Sedan

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Remove clips and then detach trunk rear trim.
    Fig 1: Removing Clips & Detaching Trunk Rear Trim
    G02872814Courtesy of SUBARU OF AMERICA, INC.
  3. Remove hook (A) and then turn over the trunk side trim of rear portion.
    Fig 2: Removing Hook
    G02872815Courtesy of SUBARU OF AMERICA, INC.
  4. Remove harness clip (A).
  5. Remove three nuts and then detach rear combination light while disconnecting connector.

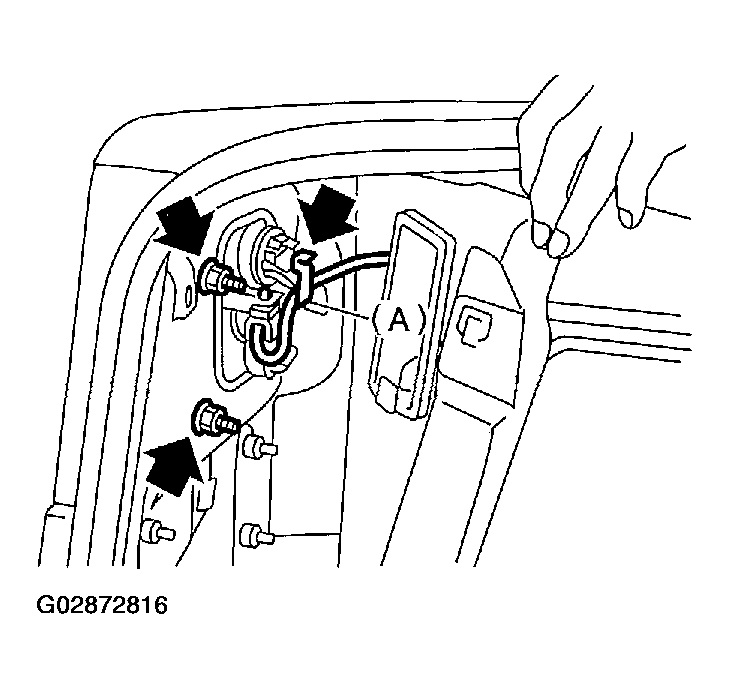

    Fig 3: Removing Nuts & Detaching Rear Combination Light
    G02872816Courtesy of SUBARU OF AMERICA, INC.
