Pitching Stopper
WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the ground cable from battery.
- Remove the air cleaner case. (2.5 L model)
< Ref. to
REMOVAL
, Air Cleaner Case.>
- Remove air intake chamber. (3.0 L model)
< Ref. to
REMOVAL
, Air Intake Chamber.>

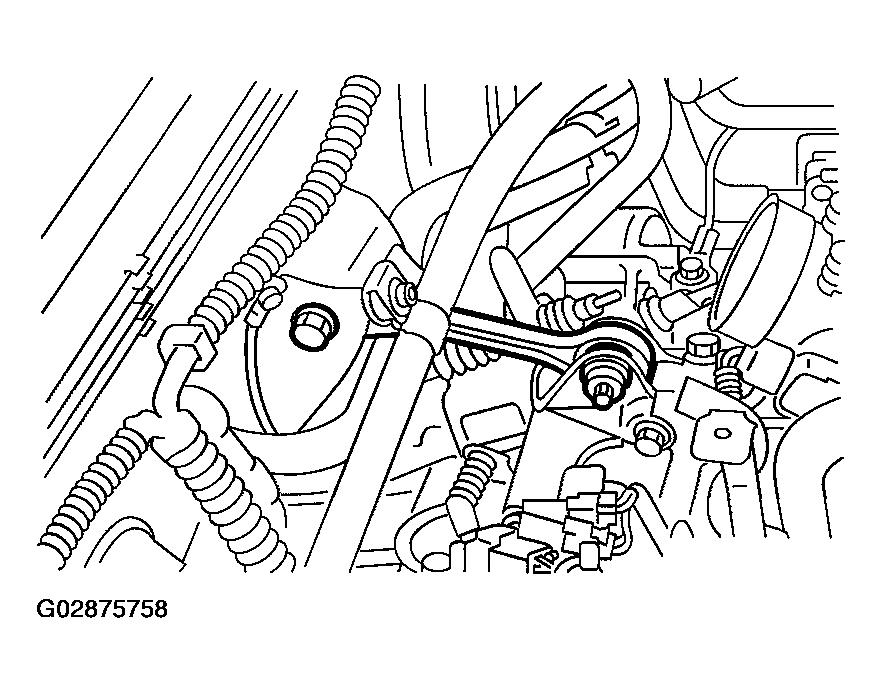

- Remove the pitching stopper.
Courtesy of SUBARU OF AMERICA, INC.
