Reduction Drive Gear: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly from the vehicle. < Ref. to REMOVAL , Automatic Transmission Assembly.>
  2. Remove rear vehicle speed sensor, and separate the transmission case and extension case.

    < Ref. to REMOVAL , Extension Case.>

  3. Remove the reduction driven gear. < Ref. to REMOVAL , Reduction Driven Gear.>
  4. Using ST, extract the reduction drive gear.
    1. ST1 499737100 PULLER
    2. ST2 899524100 PULLER SET

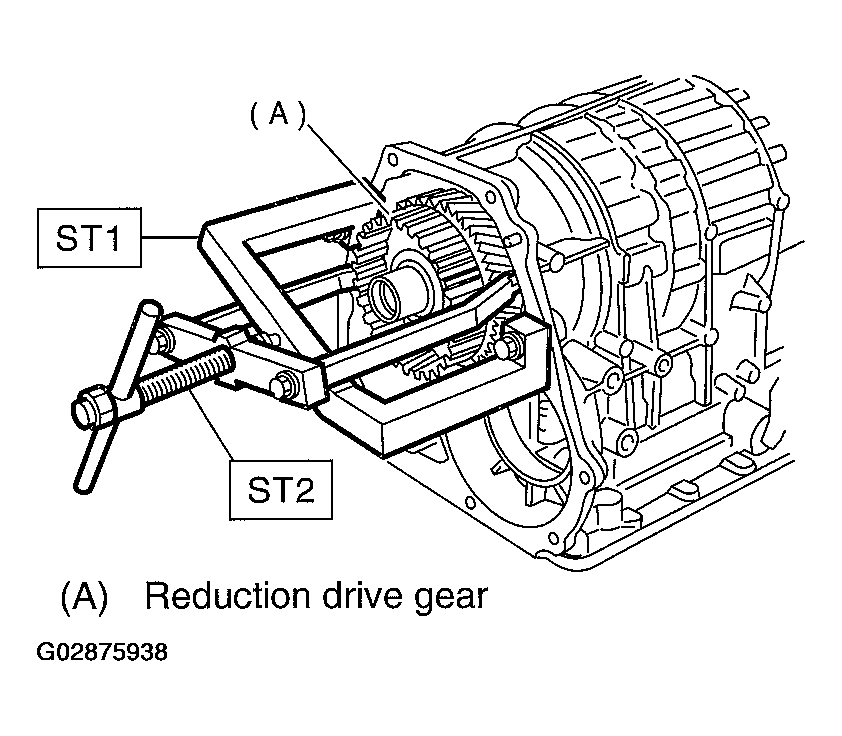

    Fig 1: Extracting Reduction Drive Gear
    G02875938Courtesy of SUBARU OF AMERICA, INC.
