Center Differential Carrier: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly from vehicle. < Ref. to REMOVAL , Automatic Transmission Assembly.>
  2. Remove the rear wheel speed sensor, and separate the extension case from the transmission case. < Ref. to REMOVAL , Extension Case.>
  3. Pull out the rear driveshaft. < Ref. to REMOVAL , Rear Drive Shaft.>
  4. Using the special tools, pull out the center differential carrier assembly.
    1. ST1 499737100 Puller
    2. ST2 899524100 Puller set

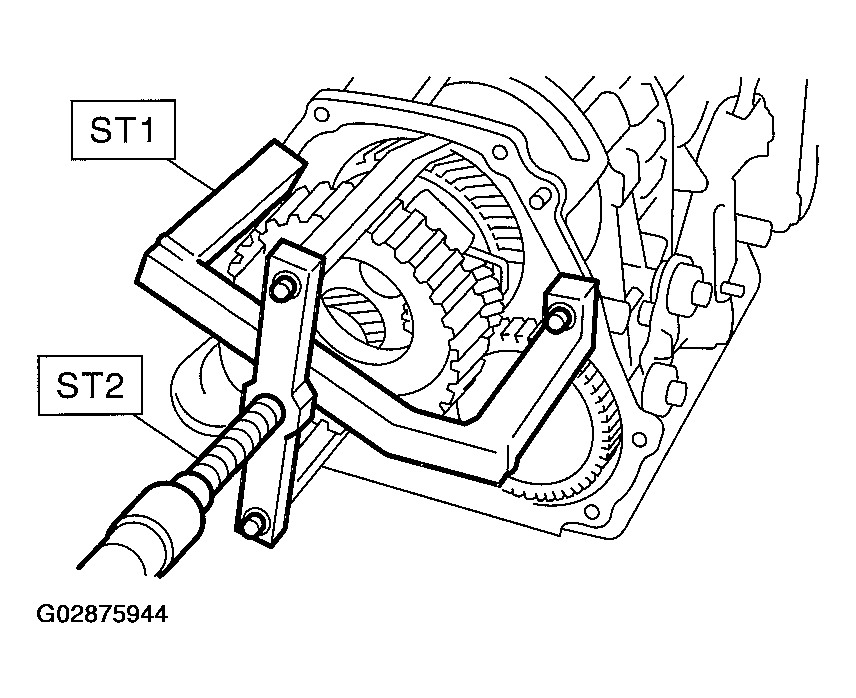

    Fig 1: Pulling Out Center Differential Carrier Assembly
    G02875944Courtesy of SUBARU OF AMERICA, INC.
  5. Pull out the shim(s) from transmission case.
