Center Differential Carrier: Disassembly

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seal rings.

Fig 1: Removing Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
Using a press and the special tool, remove the ball bearing.
1. ST 498077600 Remover
Fig 2: Removing Ball Bearing
Courtesy of SUBARU OF AMERICA, INC.

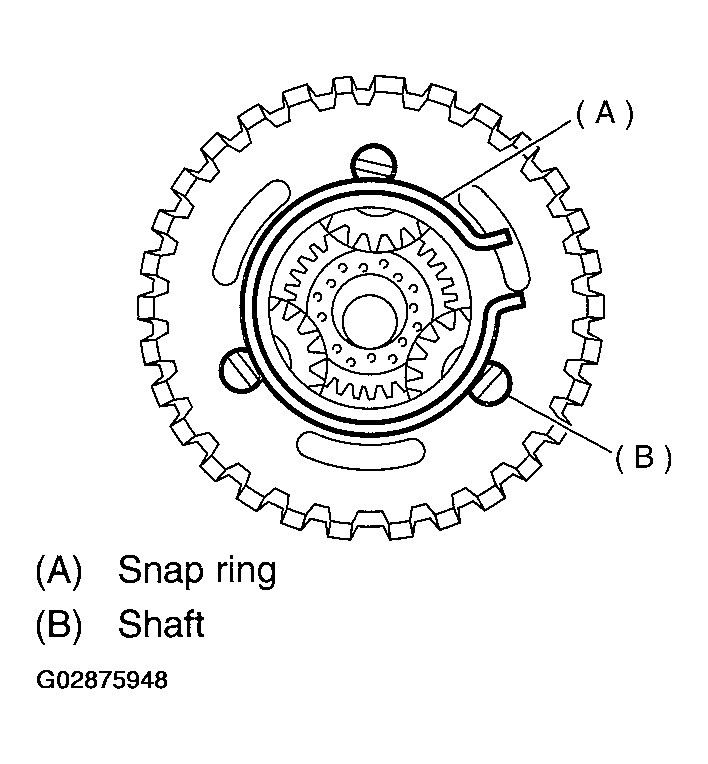

Remove the snap ring, and pull out the shaft from the center differential assembly.

Fig 3: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust washers, pinion gears, and washers from the center differential assembly.

Fig 4: Removing Thrust Washers
Courtesy of SUBARU OF AMERICA, INC.
Pull out the intermediate shaft and thrust bearing.
