Section 143 (Intake (Induction, H6DO)): General Description: Component

WARNING: This page is about a different car, the 2003 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.

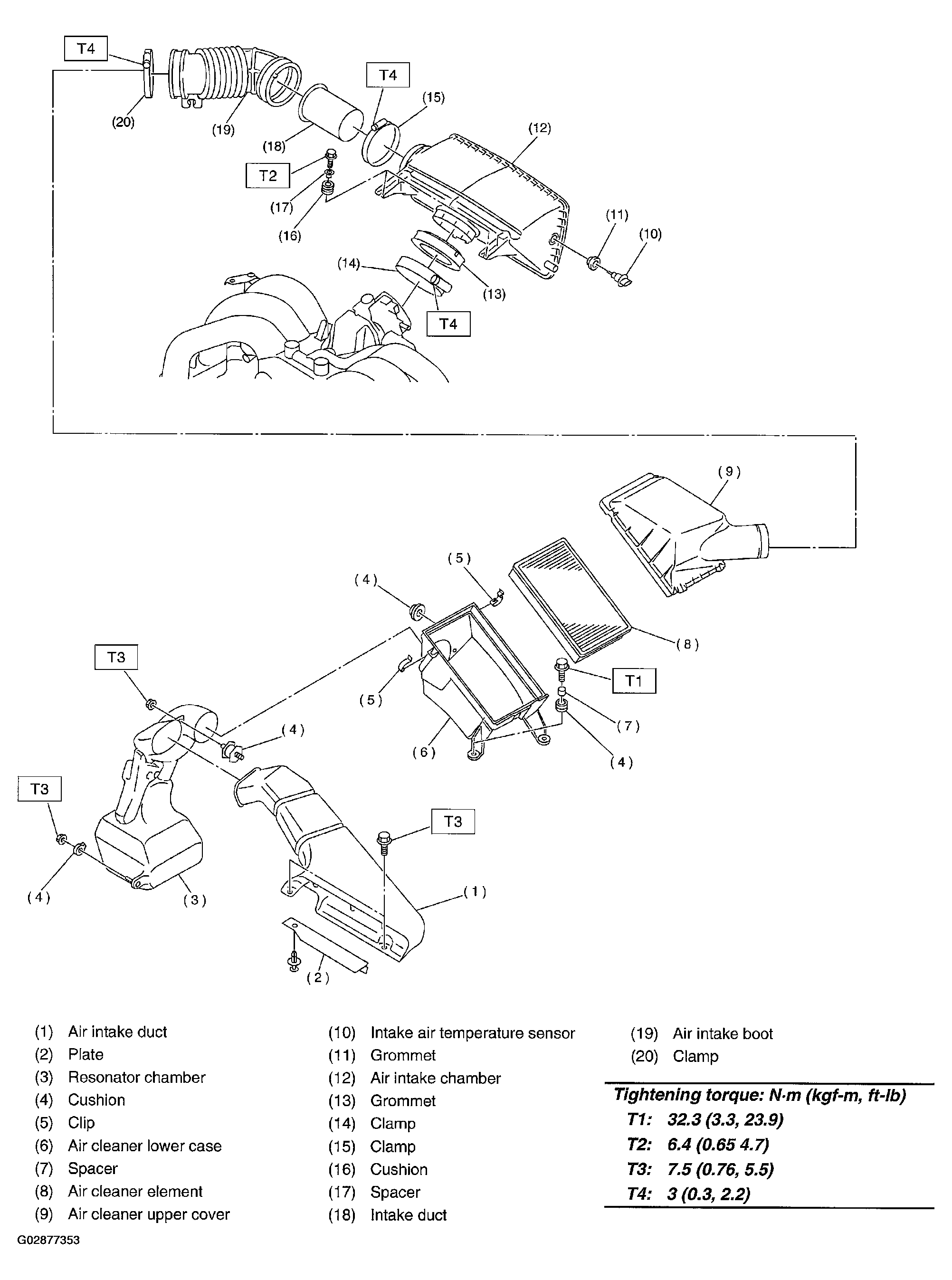

Fig 1: Exploded View Of Intake (Induction) Component With Torque Specifications
G02877353Courtesy of SUBARU OF AMERICA, INC.
