Upper Inner Trim: Installation

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

CAUTION: Be sure to securely hook pawls of inner trim panel to body flange.

NOTE: When installing center pillar upper trim and front pillar upper trim, be sure to set front mole as shown in figure.

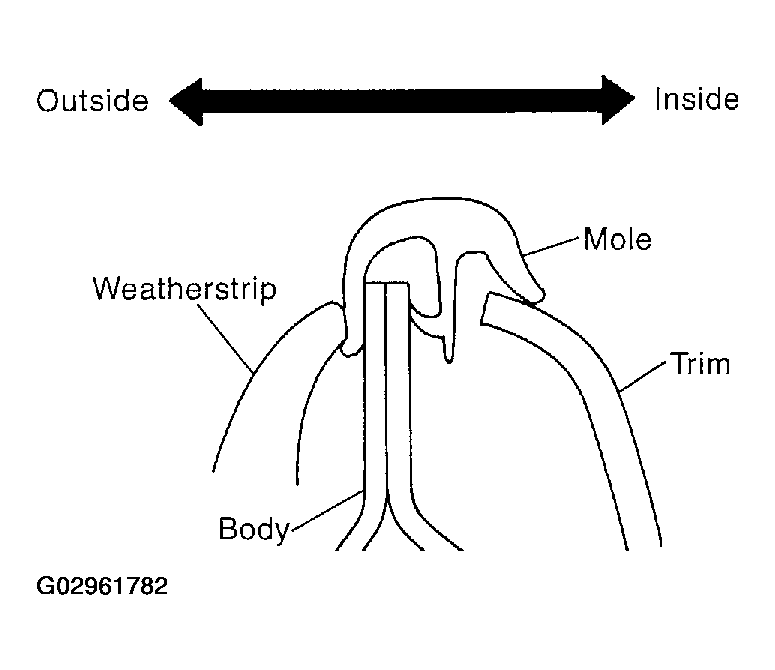

Fig 1: Installing Center Pillar Upper Trim & Front Pillar Upper Trim

Courtesy of SUBARU OF AMERICA, INC.
