Trailer Hitch: Installation

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Because trailer hitch is heavy, two people are required to remove it.
  1. Install in the reverse order of removal.
  2. For installation method of bolt, see Fig 1 .

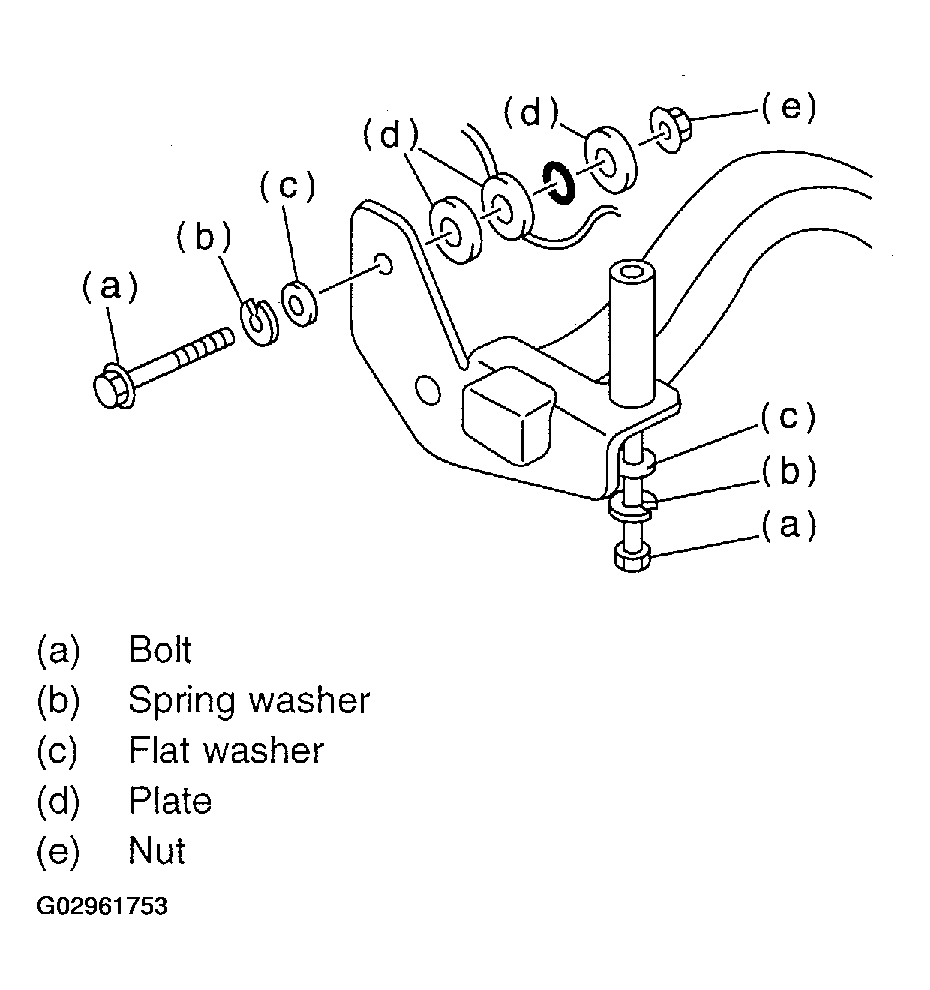

    Fig 1: Installing Bolt
    G02961753Courtesy of SUBARU OF AMERICA, INC.
