Section 132 (Exterior / Interior Trim): Spoiler: Removal

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open trunk lid.
  2. Remove electrical connector (a) of high-mounted stop light.
  3. Remove mounting nut of rear spoiler to remove rear spoiler.
CAUTION:
  • When removing nut, do not drop it into trunk lid.
  • Pay attention to avoid damage during removal or installation.

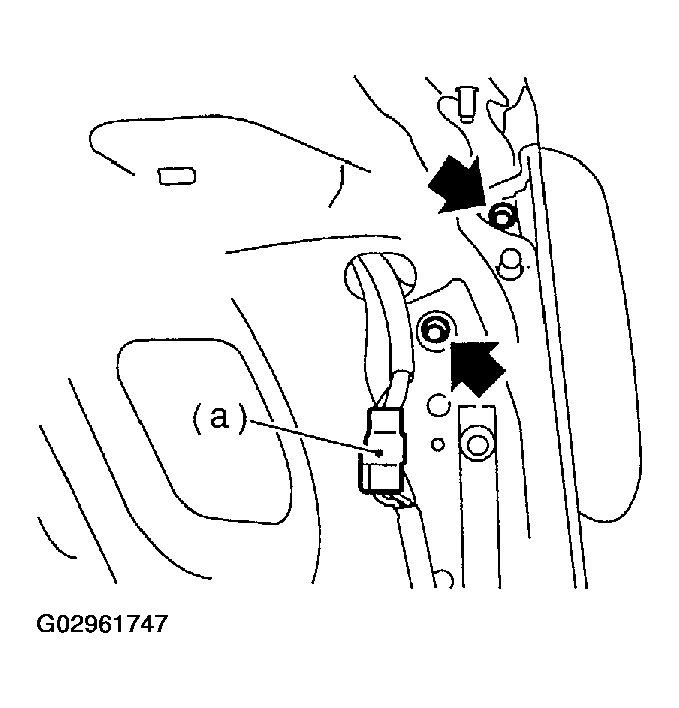

    Fig 1: Removing Mounting Nut Of Rear Spoiler
    G02961747Courtesy of SUBARU OF AMERICA, INC.
