Section 132 (Exterior / Interior Trim): Protector: Installation

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Apply primer to original side protector (if used), and attach two-sided tape to side protectors as shown.
1. Two-sided tape:
2. Thickness; 1.2 mm (0.047 in) Width; 5 mm (0.20 in)
3. Recommended primer:
4. SUMITOMO 3MK-500 or equivalent
5. Recommended two-sided tape:
6. SUMITOMO 3M4210 or equivalent

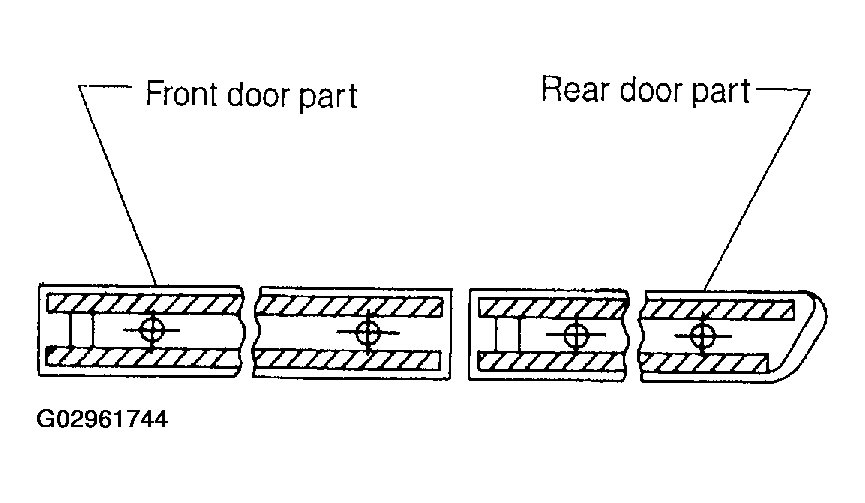

  Fig 1: Installing Front & Rear Door Part
  Courtesy of SUBARU OF AMERICA, INC.
Using an infrared lamp, heat body panel to 40 to 60°C (104 to HOT) and rear surface of side protector to 20 to 30°C (68 to 86°F).
Remove tack paper from two-sided paper. While aligning clips with holes in body panel, attach two-sided tape to side protector and body panel with a force of more than 49 N (5 kgf, 11 lb) with roller. Do not allow air to enter mating surface of the two.

CAUTION:

To maintain adhesive power, do not wash the vehicle for 24 hours after tape application.
Push clip in securely using hands. (To prevent deformation, do not use excessive force.)
