Lower Inner Trim: Removal

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front pillar lower trim (A).
  2. Remove side sill front lower cover- (B).
  3. For sedan: Remove rear seat cushion , then remove side sill rear upper cover (C).
    1. For wagon: Rise rear seat cushion, then remove side sill rear upper cover (C).
  4. Remove side sill rear lower cover (D).
  5. Remove center pillar lower trim (E).

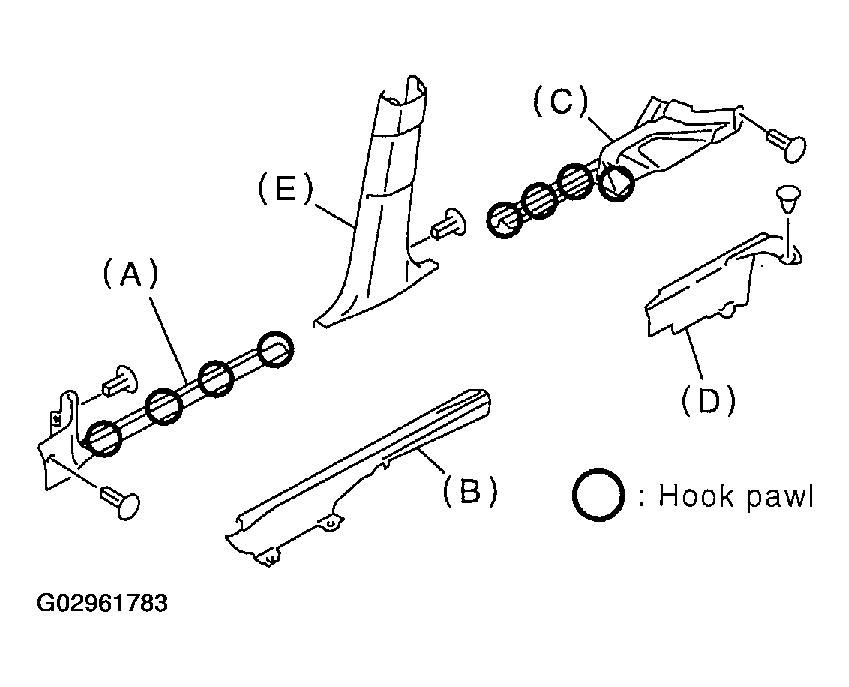

    Fig 1: Removing Lower Inner Trim
    G02961783Courtesy of SUBARU OF AMERICA, INC.
