Instrument Panel Assembly: Installation
WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal.
CAUTION:
- Be careful not to snag the harness.
- Make sure to connect harness connector.
- Take care not to scratch the instrument panel and related parts.
NOTE:

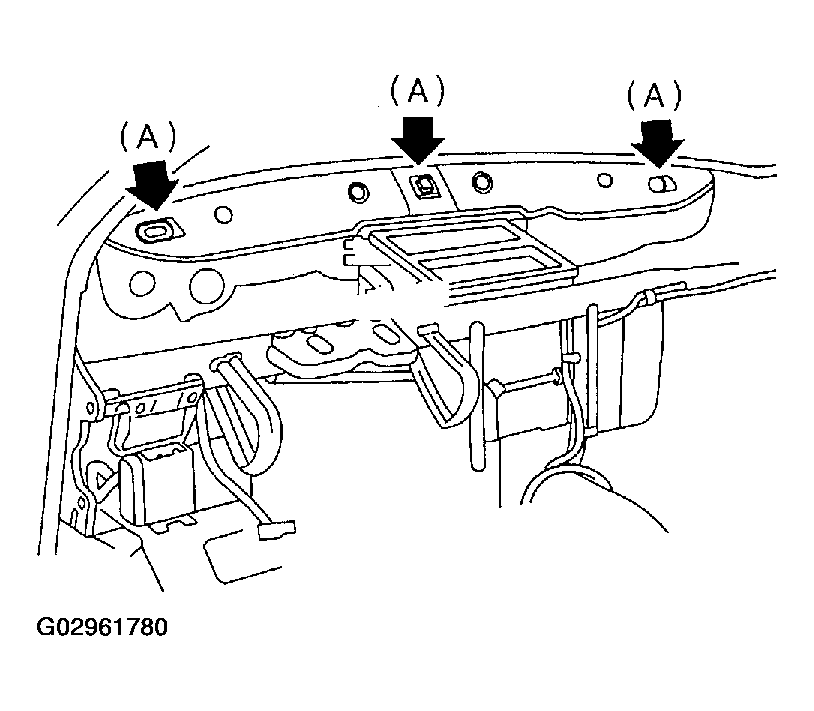

When setting the instrument panel into position, push the three hooks into grommet (A) on the body panel.
- Tightening torque:
- Refer to COMPONENT in General Description. Refer to INSTRUMENT PANEL , COMPONENT, General Description.
