Rear Turn Signal Light Bulb: Removal: Wagon

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear combination light assembly. Refer to WAGON  , REMOVAL, Rear Combination Light Assembly.
  2. Remove the light cover mounting screws then detach the cover.
  3. Turn the socket and remove the bulb.

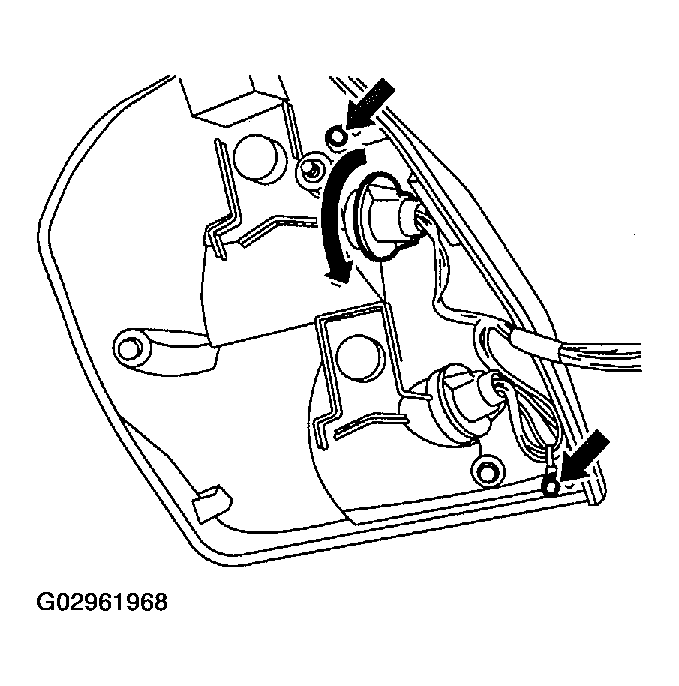

Fig 1: Turning Socket & Removing Bulb
G02961968Courtesy of SUBARU OF AMERICA, INC.
