Rear Finisher Light Assembly: Removal: Wagon

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Remove rear gate lower trim. Refer to REMOVAL , Rear Gate Trim.
  3. Remove rear gate trim lower (A).

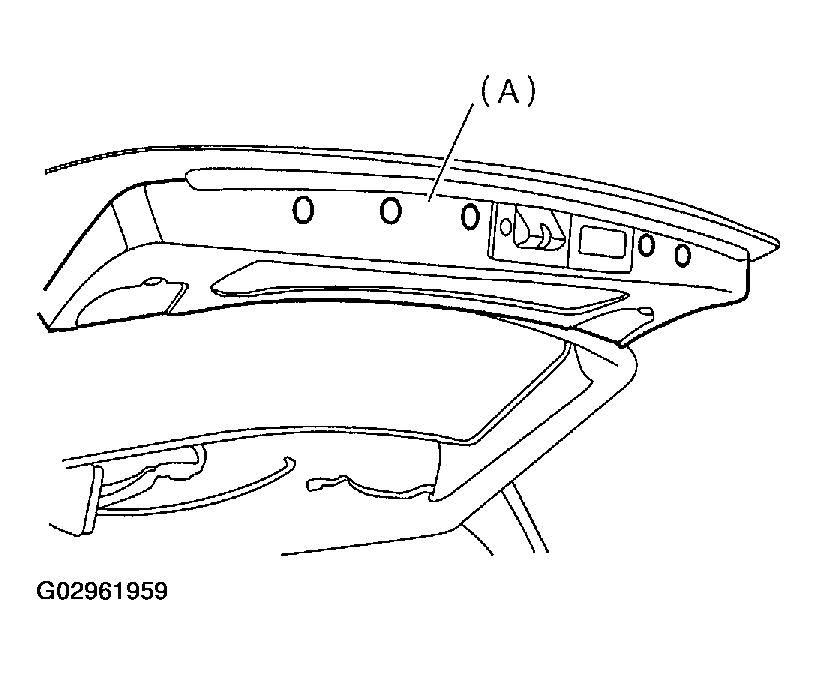

    Fig 1: Removing Rear Gate Trim Lower
    G02961959Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect connector from rear finisher light.
  5. Remove nuts (A) and then remove rear finisher light from rear gate.

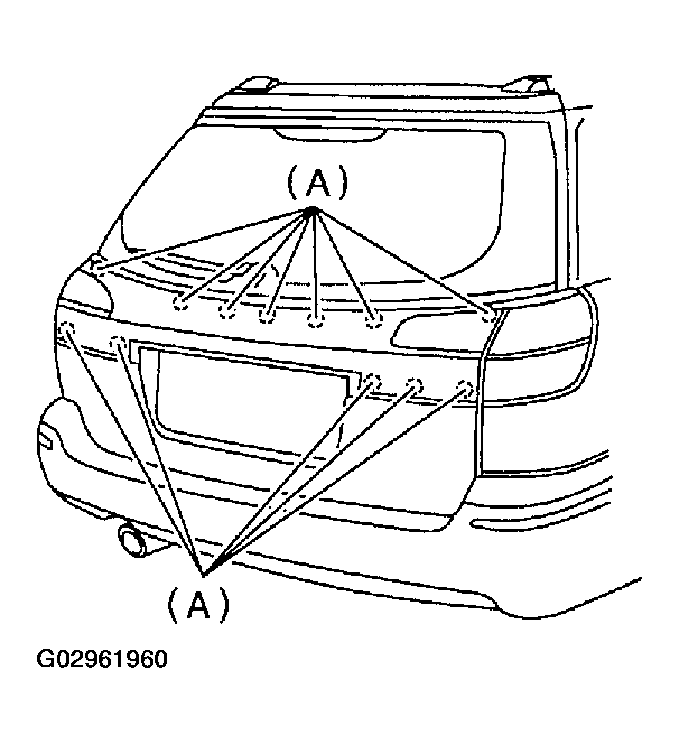

Fig 2: Removing Nuts & Rear Finisher Light From Rear Gate
G02961960Courtesy of SUBARU OF AMERICA, INC.
