Rear Finisher Light Assembly: Removal: Sedan

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Open the trunk lid.
  3. Remove cover (A).
  4. Disconnect connector (B) from rear finisher light.
  5. Remove ten nuts and then detach rear finisher light from trunk lid.

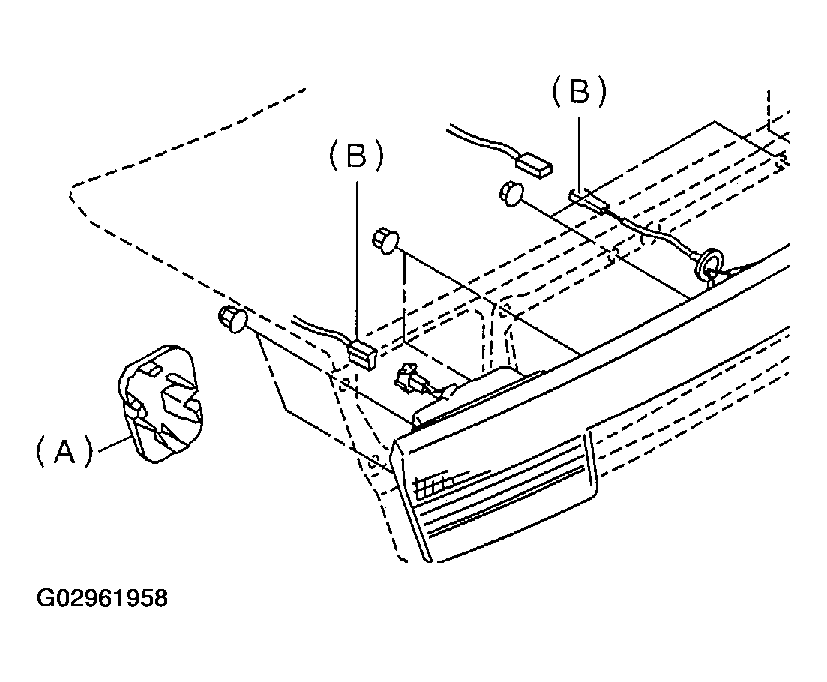

Fig 1: Removing Nuts & Detaching Rear Finisher Light From Trunk Lid
G02961958Courtesy of SUBARU OF AMERICA, INC.
