Pitching Stopper

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery ground cable.
  2. Remove the air cleaner case or air intake chamber.

    Refer to REMOVAL , Air Cleaner Case. (2.5L Model)

    Refer to REMOVAL , Air Intake Chamber. (3.0L Model)

  3. Remove the pitching stopper.

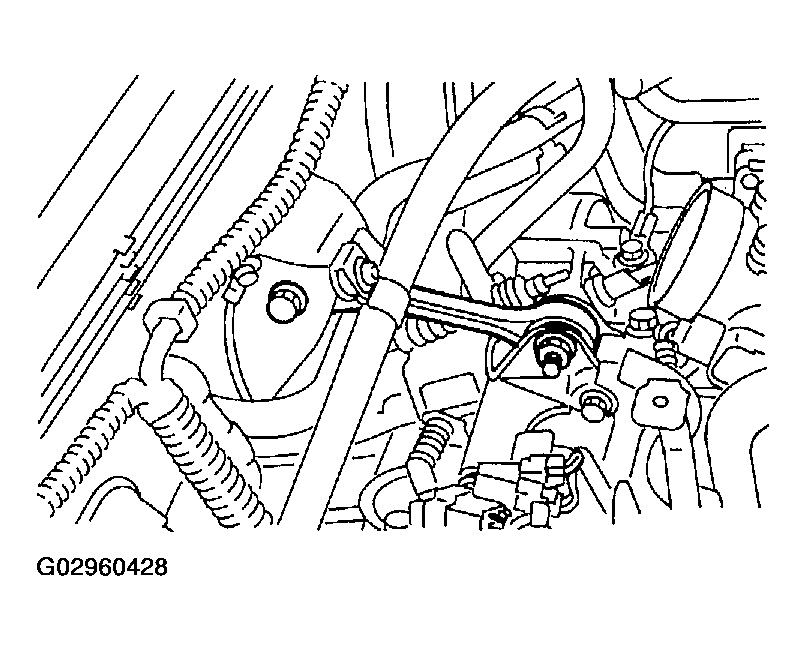

    Fig 1: Removing Pitching Stopper
    G02960428Courtesy of SUBARU OF AMERICA, INC.
