Section 123 (Intake (Induction) (H4SO)): General Description: Component

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

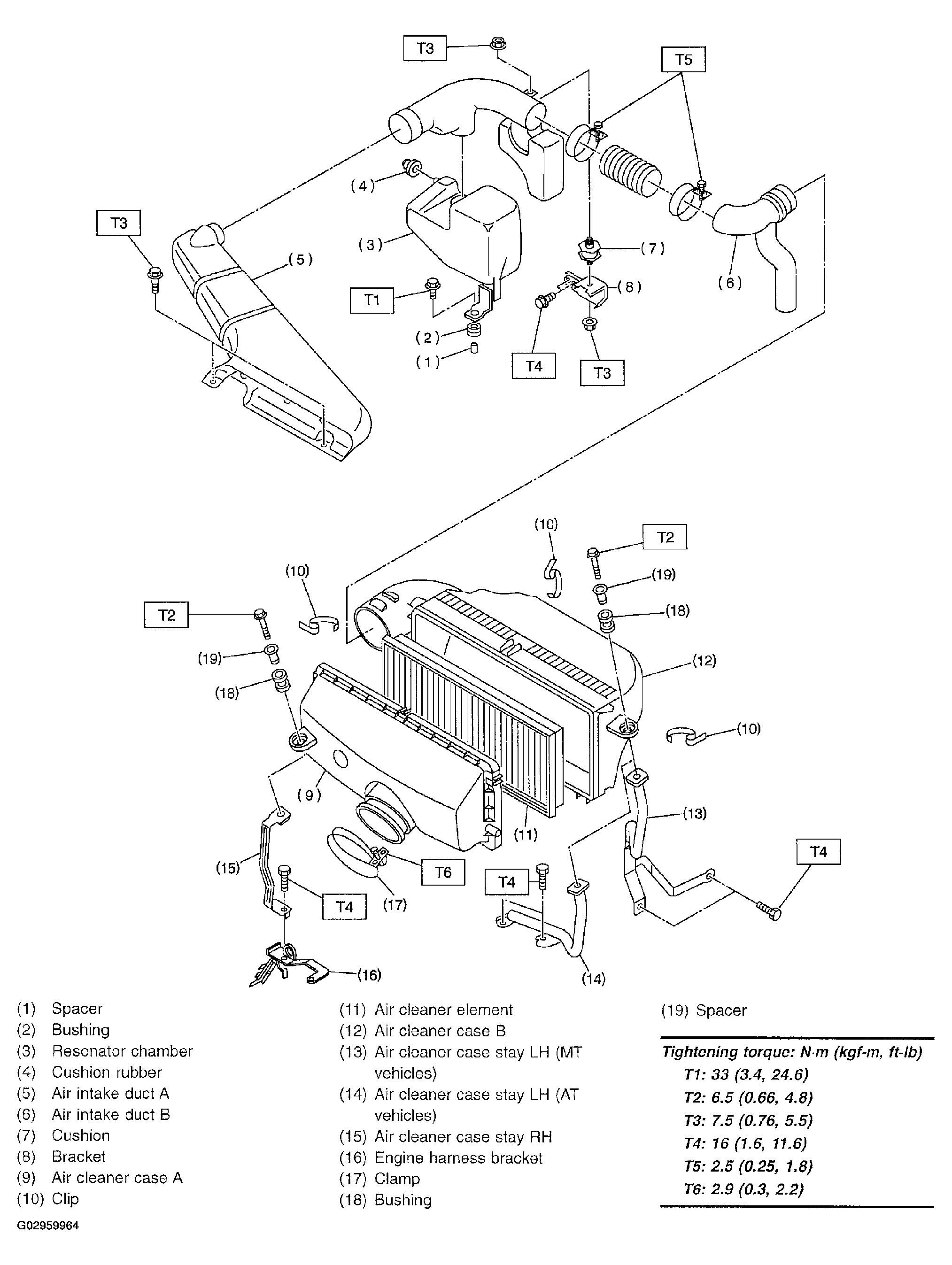

Fig 1: Identifying Intake Components
G02959964Courtesy of SUBARU OF AMERICA, INC.
