Front Seat

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

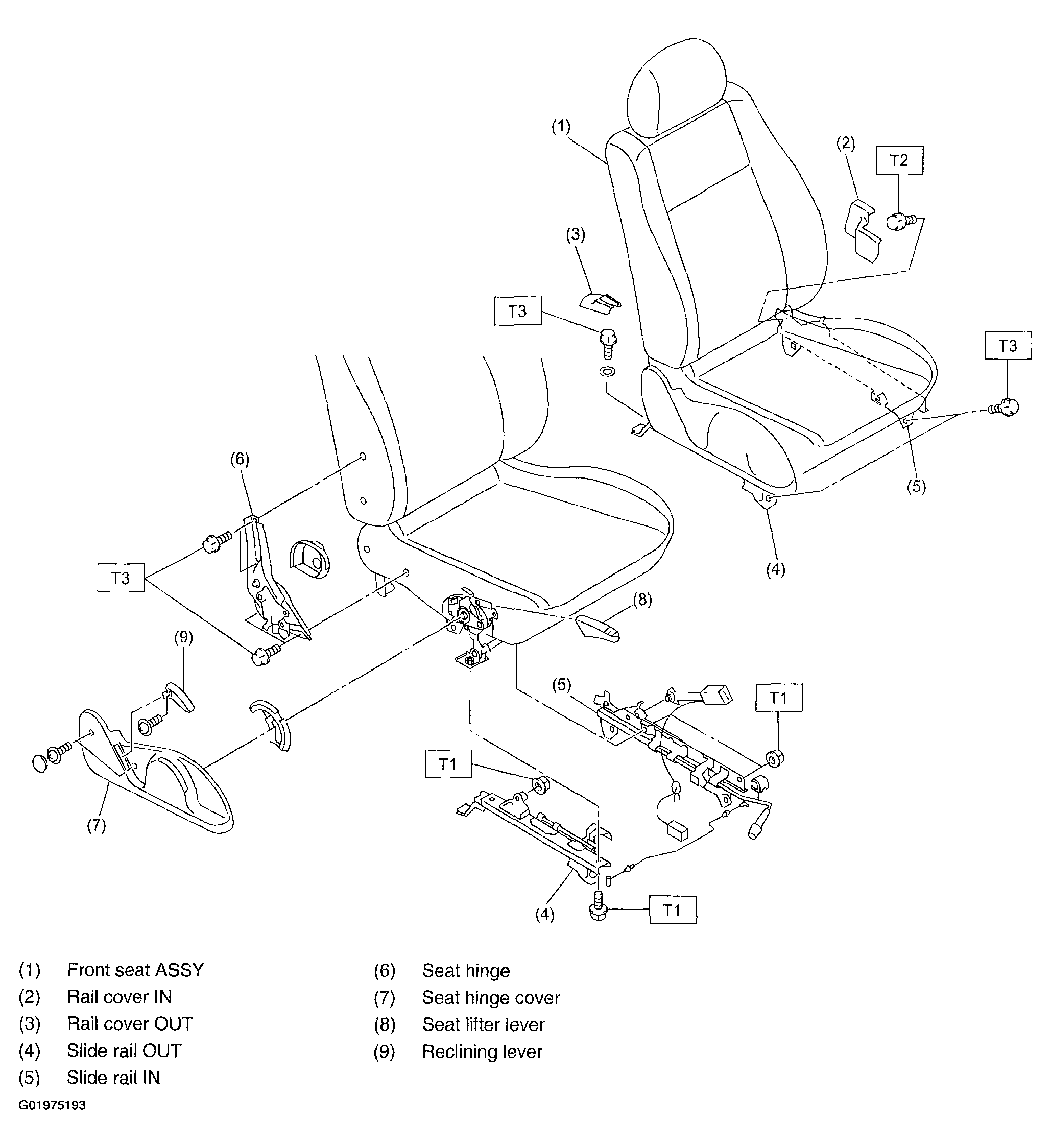

Fig 1: Identifying Front Seat Components
G01975193Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  24.5 (2.5, 18)
  2. T2:  30 (3.1, 22)
  3. T3:  53 (5.4, 39)
