Rear Combination Light Assembly: Removal: Wagon

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery.
  2. Remove the clips and then detach the rear combination light covers.
    Fig 1: Removing Clips & Detaching Rear Combination Light Covers
    G01974979Courtesy of SUBARU OF AMERICA, INC.
  3. Remove two bolts.
    Fig 2: Removing Two Bolts
    G01974980Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the rear quarter trim. See WAGON , REMOVAL, Rear Quarter Trim.
  5. Disconnect the connector and then detach the rear combination light assembly.

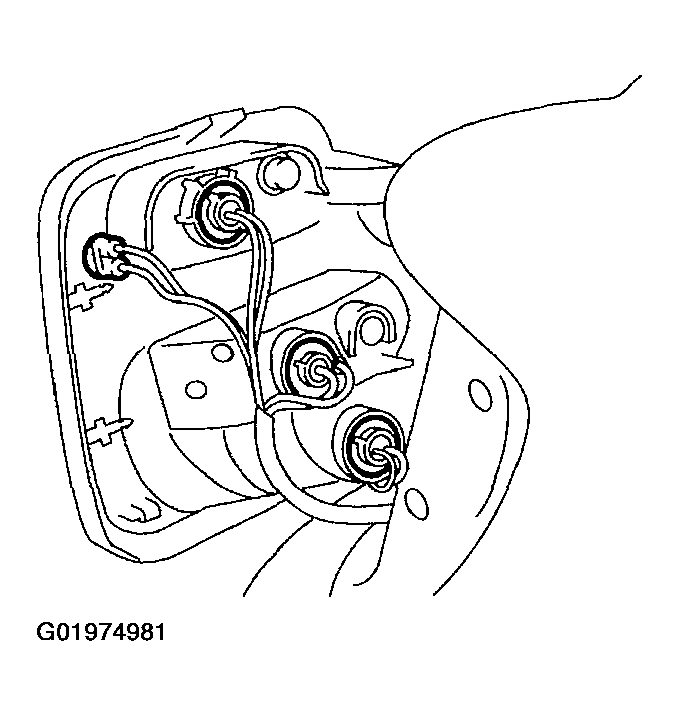

    Fig 3: Disconnecting Connector & Detaching Rear Combination Light Assembly
    G01974981Courtesy of SUBARU OF AMERICA, INC.
