High-Mounted Stop Light: Removal: Wagon

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery.
  2. Remove the screws (A) and then detach the cover (B).
  3. Remove the screws (C) and then detach the high-mounted stop light while disconnecting the connector.

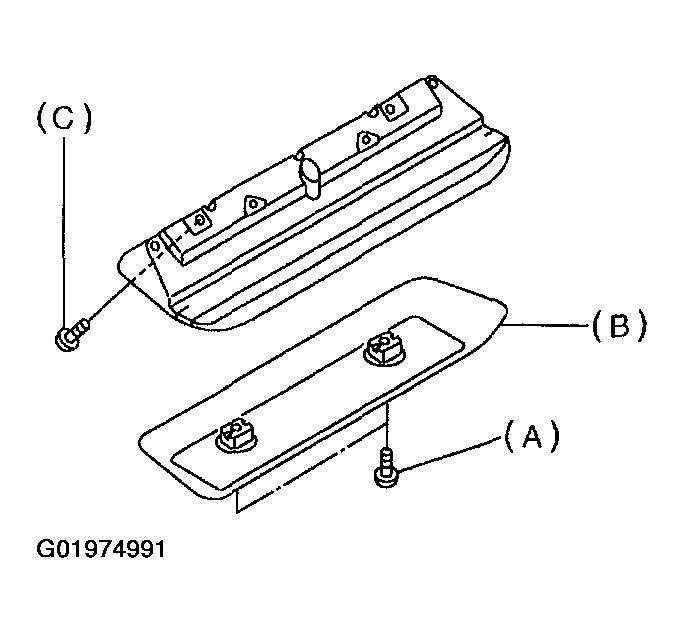

    Fig 1: Removing Screws & Detaching Cover
    G01974991Courtesy of SUBARU OF AMERICA, INC.
