Refrigerant Recovery Procedure: Operation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • During operation, be sure to wear safety goggles and protective gloves.
  • Connect the refrigerant recovery system with the manifold gauge set to discharge the refrigerant from the A/C system and reuse it.
  • When reusing the discharged refrigerant, keep service cans on hand. Because the discharge rate with the recovery system is approximately 90%, service cans are necessary to charge the refrigerant.
  • Follow the detailed operation procedure described in the operation manual attached to the refrigerant recovery system.
  1. Perform the compressor oil return operation. See OPERATION  , Compressor Oil.
  2. Stop the engine.
  3. Close the valves on the low-high-pressure sides of the manifold gauge set.

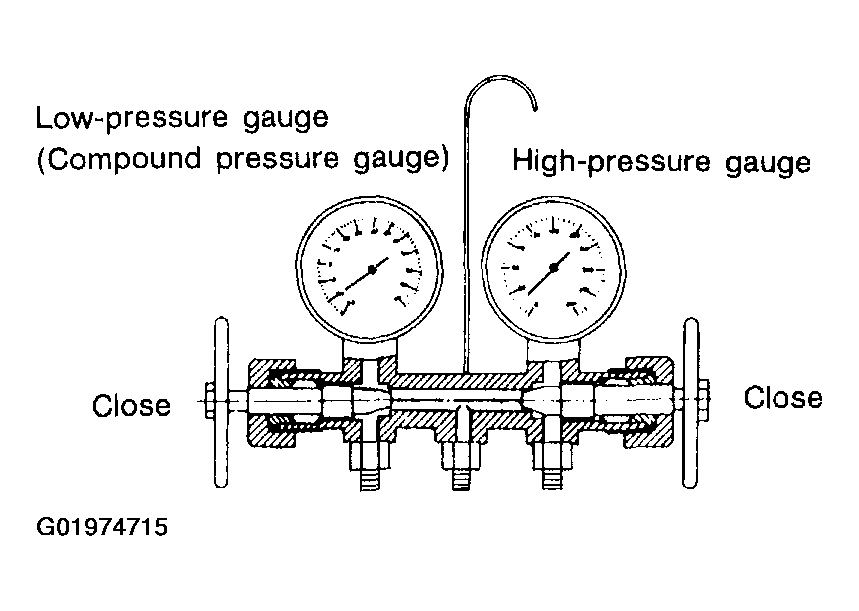

    Fig 1: Closing Valves On Low/High-Pressure Sides Of Manifold Gauge Set
    G01974715Courtesy of SUBARU OF AMERICA, INC.
  4. Install the low-high-pressure sides of the vehicle respectively.

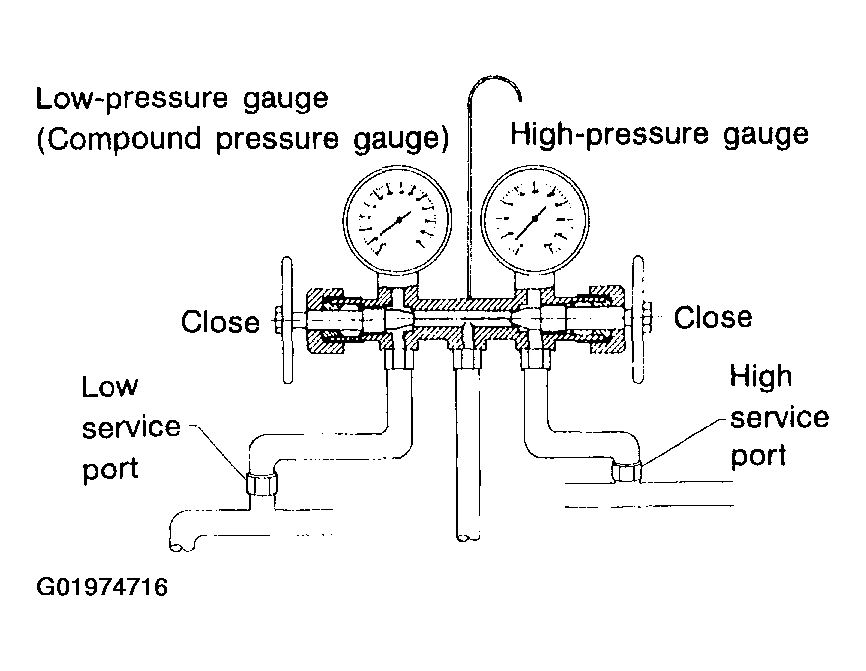

    Fig 2: Installing Low/High-Pressure Sides Of Vehicle Respectively
    G01974716Courtesy of SUBARU OF AMERICA, INC.
  5. Connect the center hose to the refrigerant recovery system.
  6. Follow the operation manual to activate the refrigerant recovery system.
