Heater Core: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater and cooling unit. See REMOVAL  , Heater and Cooling Unit.
  2. Loosen the screws to remove heater core cover.
    Fig 1: Loosening Screws To Remove Heater Core Cover
    G01974744Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the heater core.

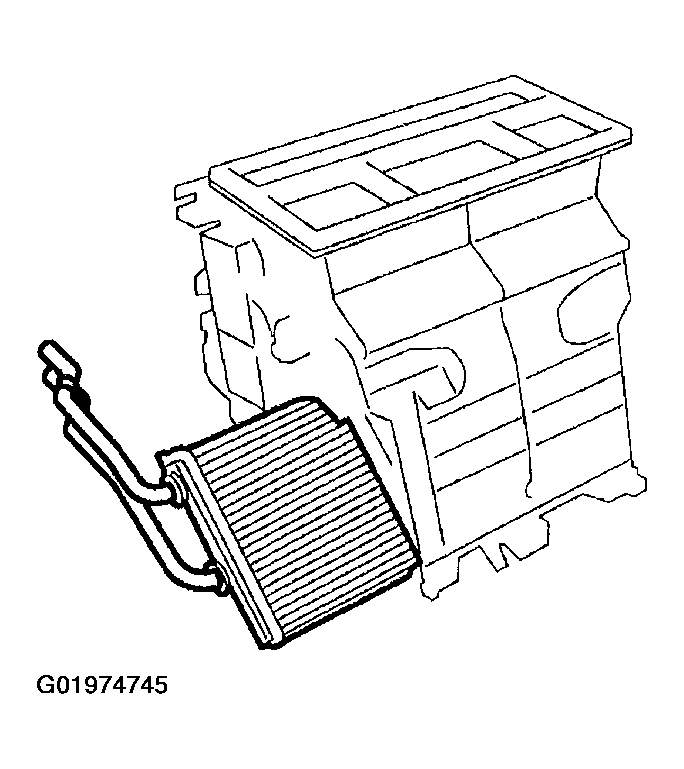

    Fig 2: Removing Heater Core
    G01974745Courtesy of SUBARU OF AMERICA, INC.
