Blower Motor Unit Assembly: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery.
Remove the glove box. See REMOVAL , Glove Box.
Loosen the nuts to remove support beam stay.

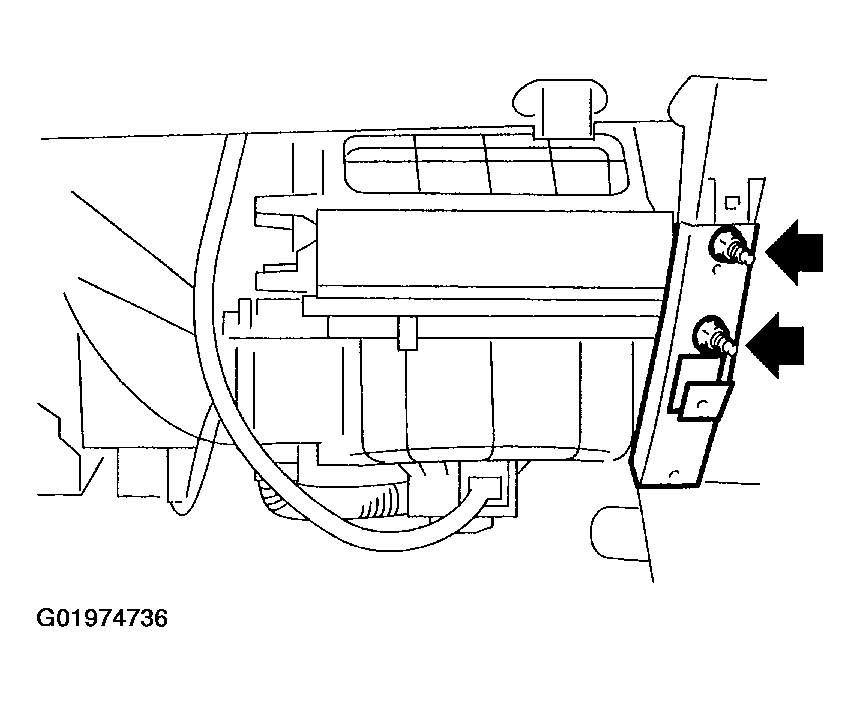

Fig 1: Loosening Nuts To Remove Support Beam Stay
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the blower motor connector.

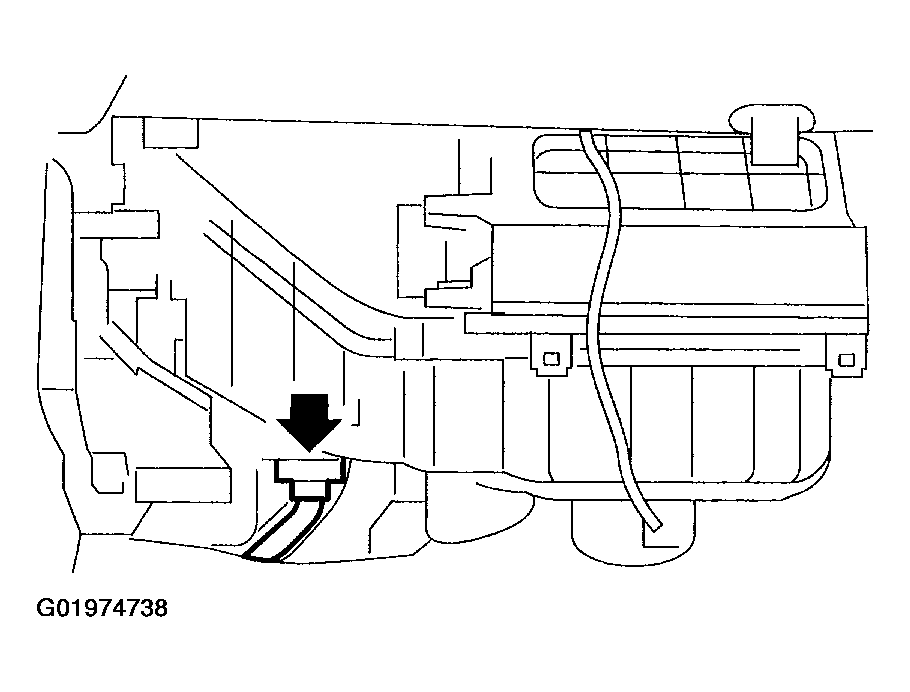

Fig 2: Disconnecting Blower Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the blower resistor connector.

Fig 3: Disconnecting Blower Resistor Connector
Courtesy of SUBARU OF AMERICA, INC.
Loosen the bolt and nut to remove blower motor unit assembly.

Fig 4: Loosening Bolts/Nuts To Remove Blower Motor Unit Assembly
Courtesy of SUBARU OF AMERICA, INC.
