Blower Motor Unit Assembly: Inspection

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Connect the motor connector terminal 1 from the battery to the positive (+) lead and terminal 2 to the negative (-) lead. Make sure the motor runs smoothly.

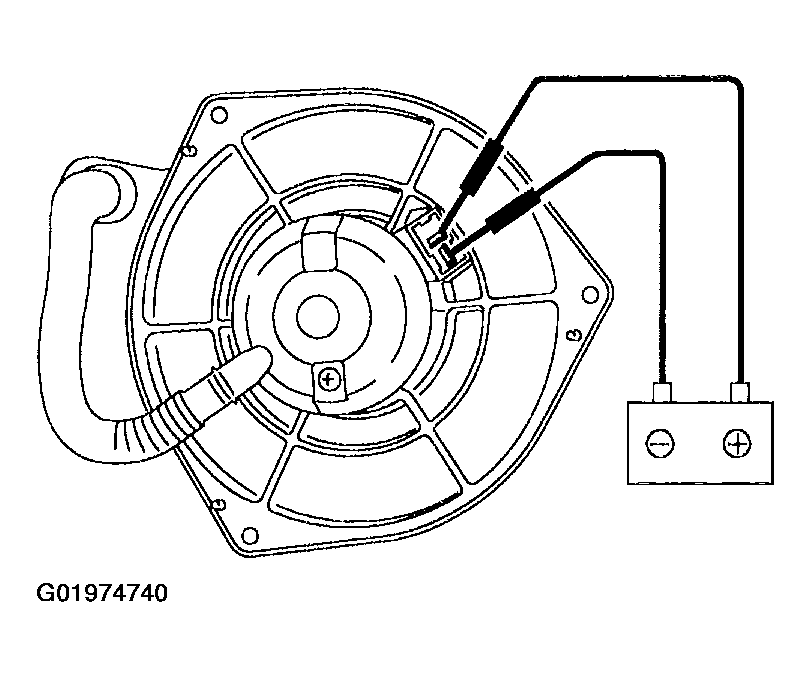

Fig 1: Inspecting Blower Motor Operation
G01974740Courtesy of SUBARU OF AMERICA, INC.
