General Diagnostic Table: Inspection

WARNING: This page is about a different car, the 2004 Subaru Impreza and 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Vibration while cruising may be caused by an unbalanced tire, improper tire inflation pressure, improper wheel alignment, etc.

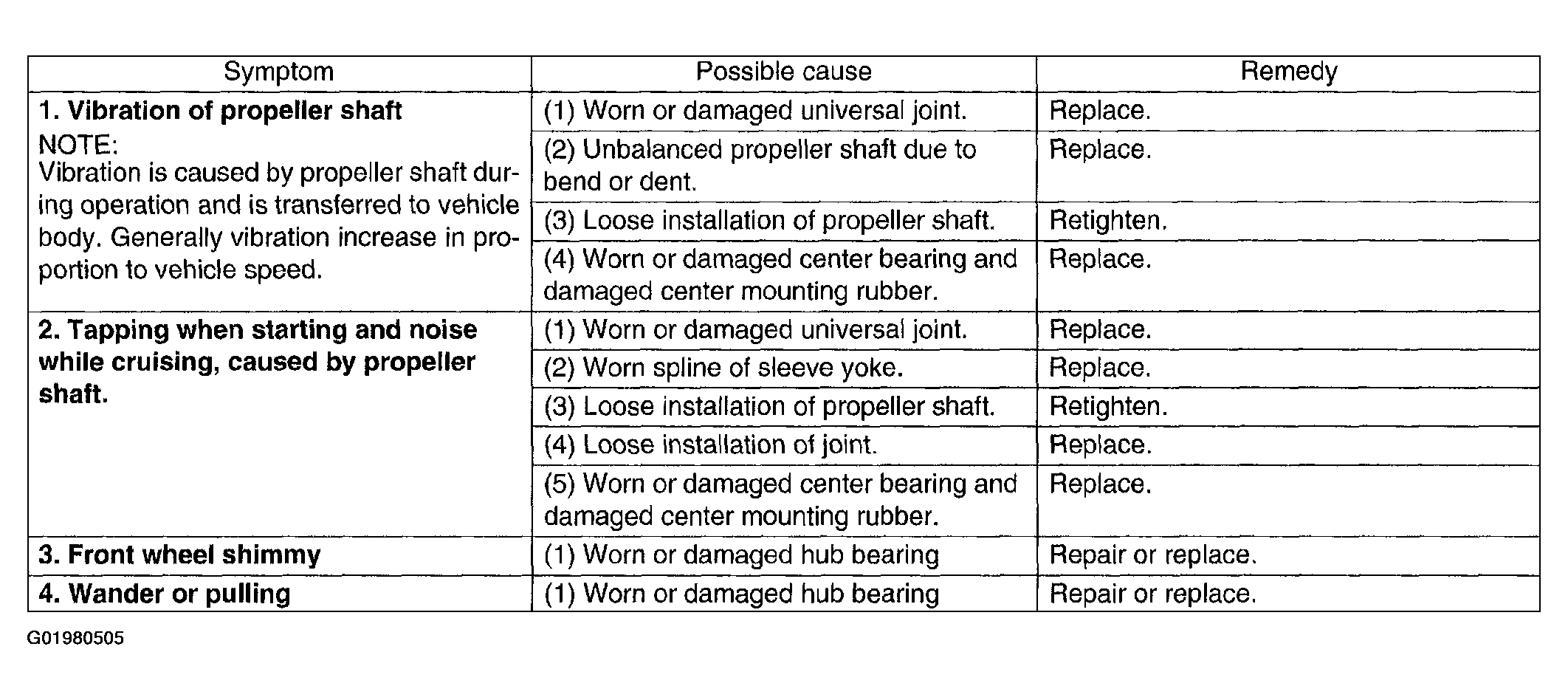

Fig 1: General Diagnostic Inspection Chart
G01980505Courtesy of SUBARU OF AMERICA, INC.
