Propeller Shaft

WARNING: This page is about a different car, the 2004 Subaru Impreza and 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

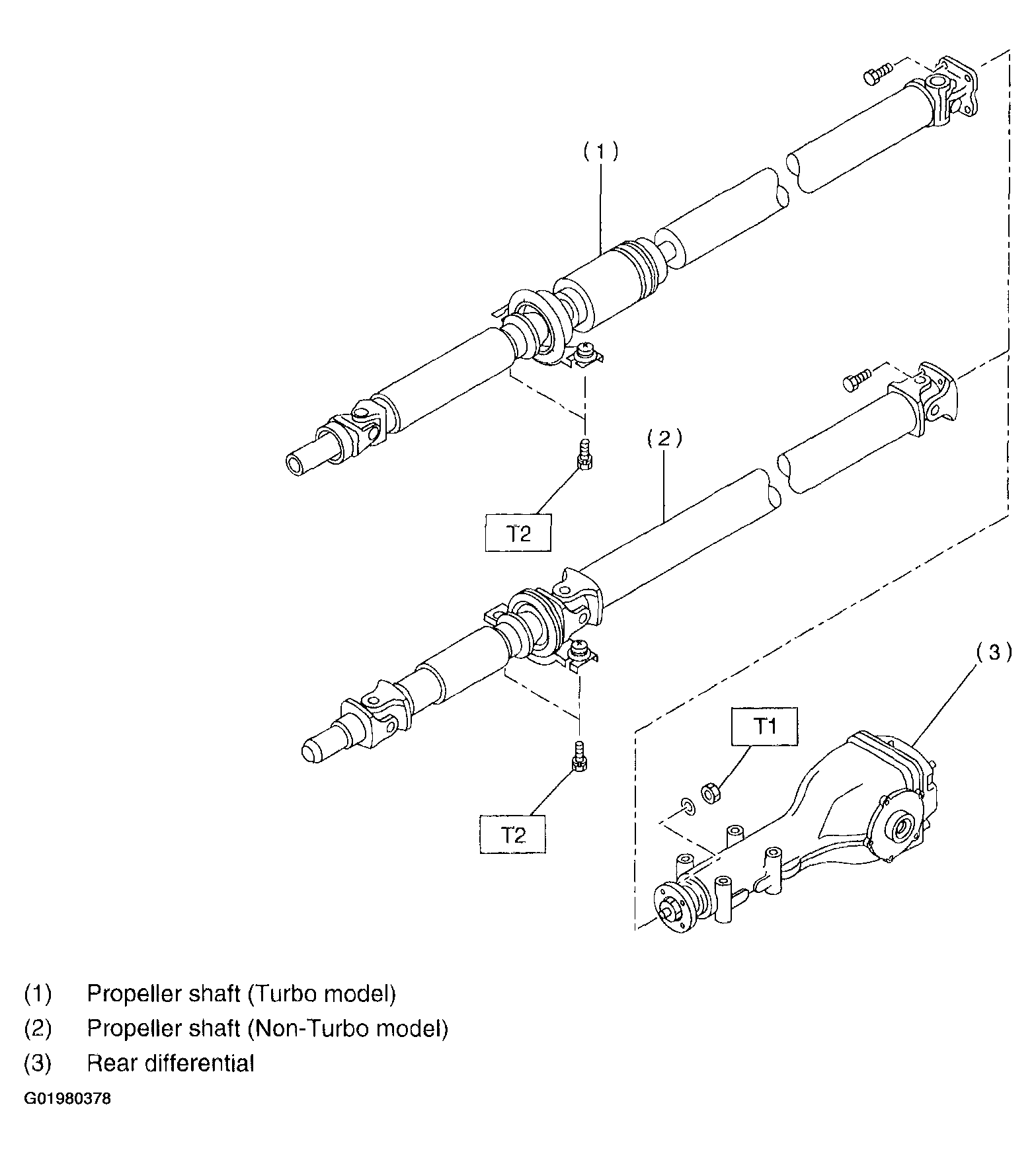

Fig 1: Identifying Propeller Shaft Components
G01980378Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  31 (3.2, 23.1)
  2. T2:  52 (5.3, 38.3)
