Relay And Fuse: Inspection

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Check conduction with a circuit tester (ohm range) according to the following table in figure.

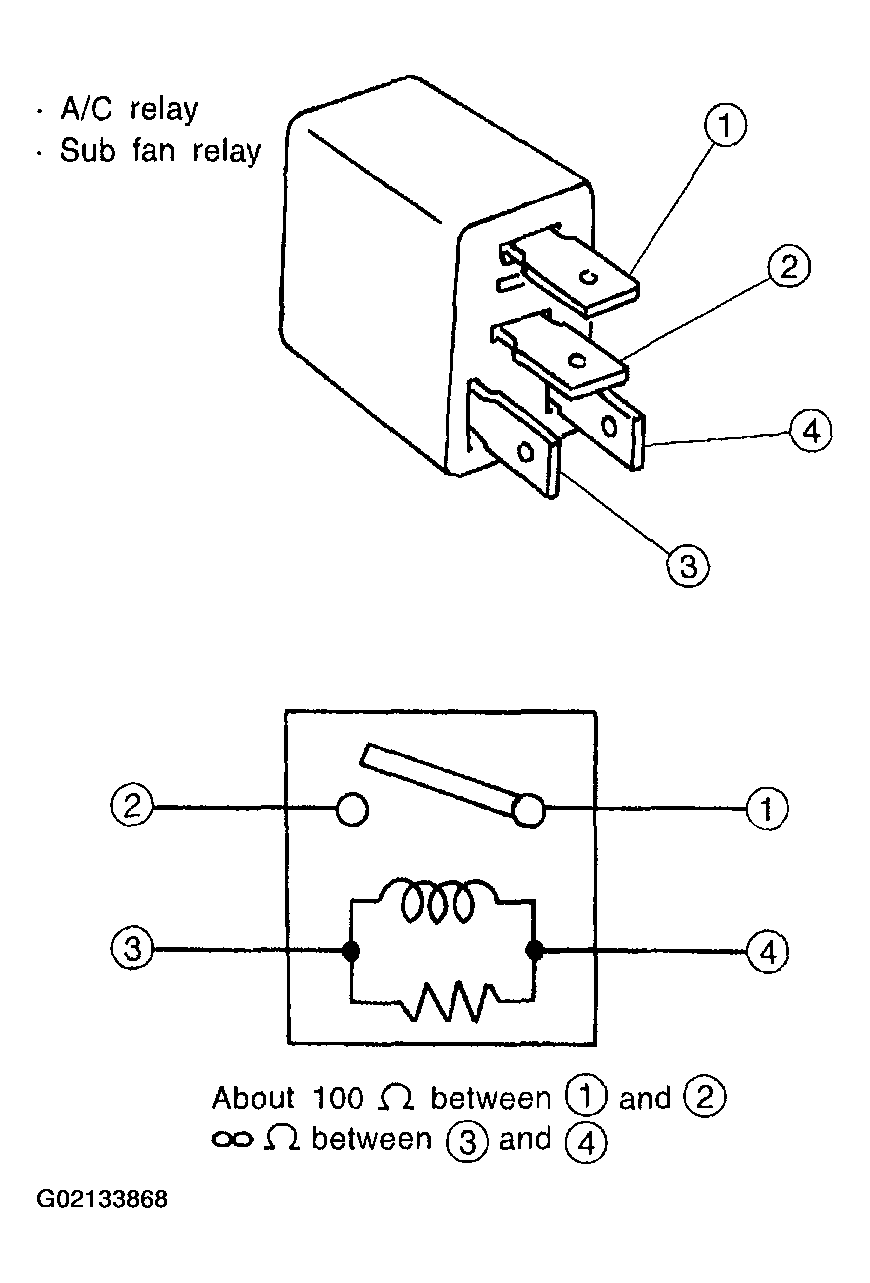

Fig 1: Testing Conductivity Of A/C Relay & Sub Fan Relay
G02133868
