Oil Pressure System: Schematic

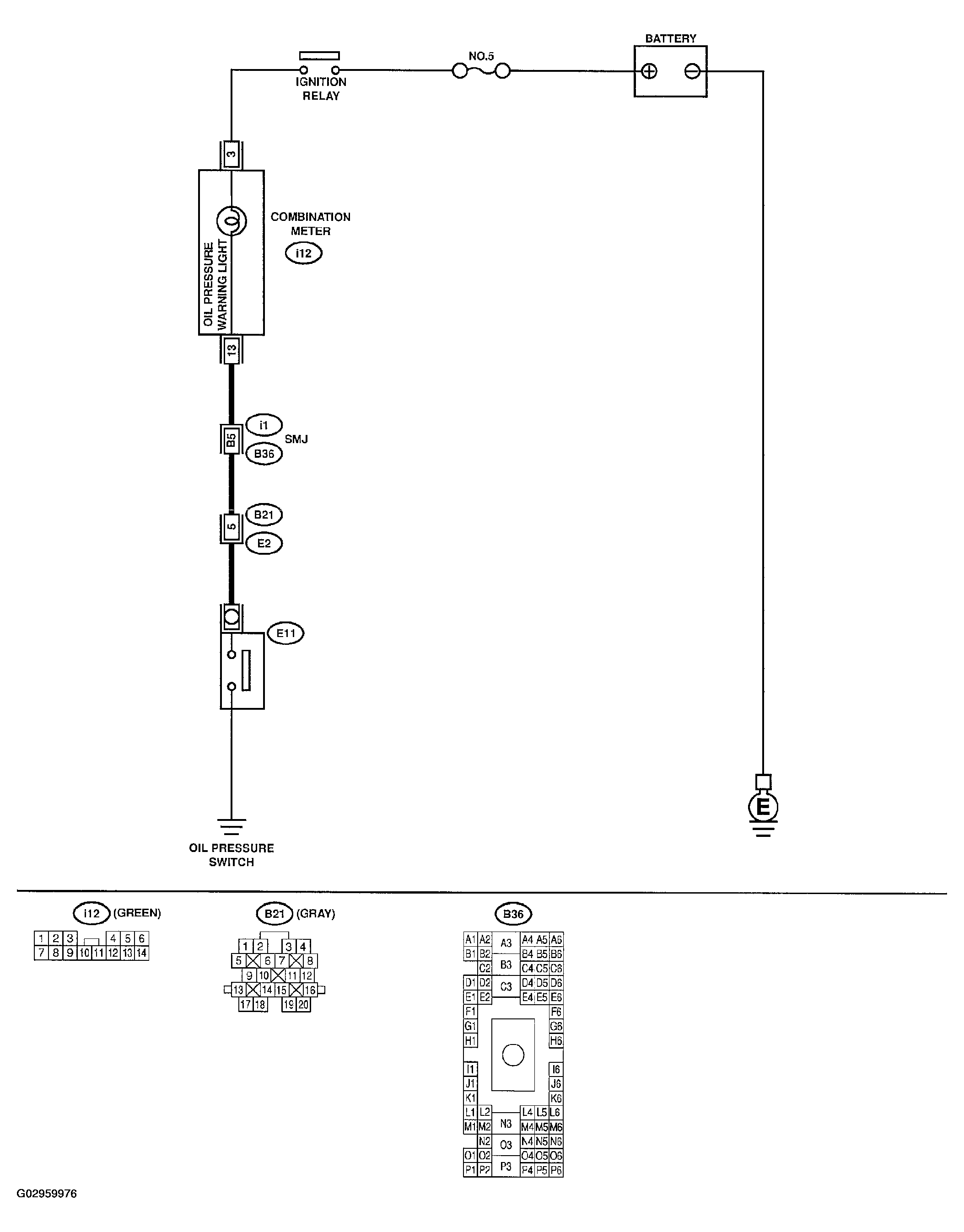

Fig 1: Oil Pressure System Schematic Diagram

G02959976

Courtesy of SUBARU OF AMERICA, INC.
