Oil Pressure System: Inspection

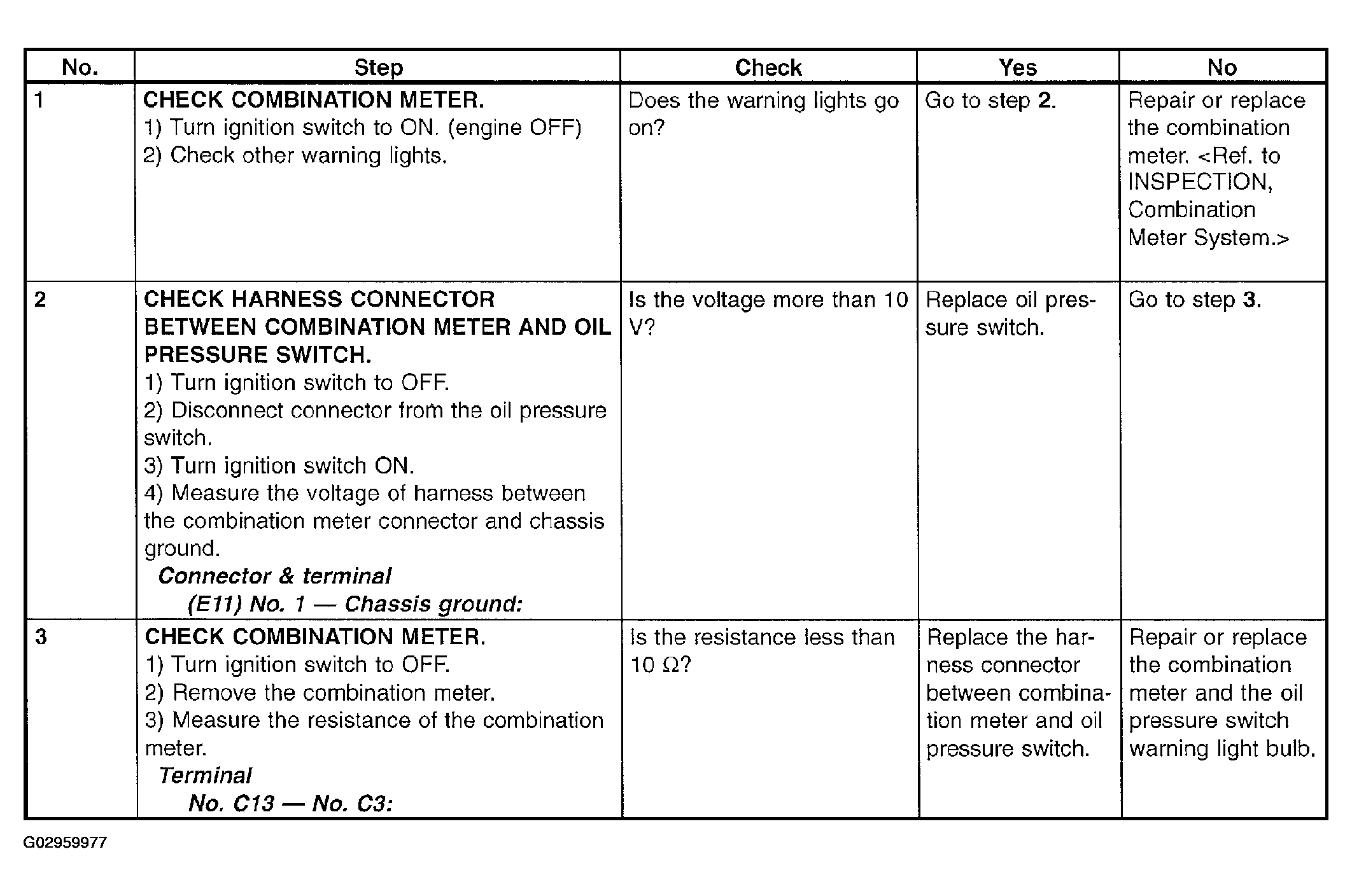

Fig 1: Oil Pressure System Inspection Chart

G02959977

Courtesy of SUBARU OF AMERICA, INC.
