Oil Pressure Switch: Installation

  1. Apply fluid packing to oil pressure switch threads.
    1. Fluid packing:  THREE BOND 1215 or equivalent

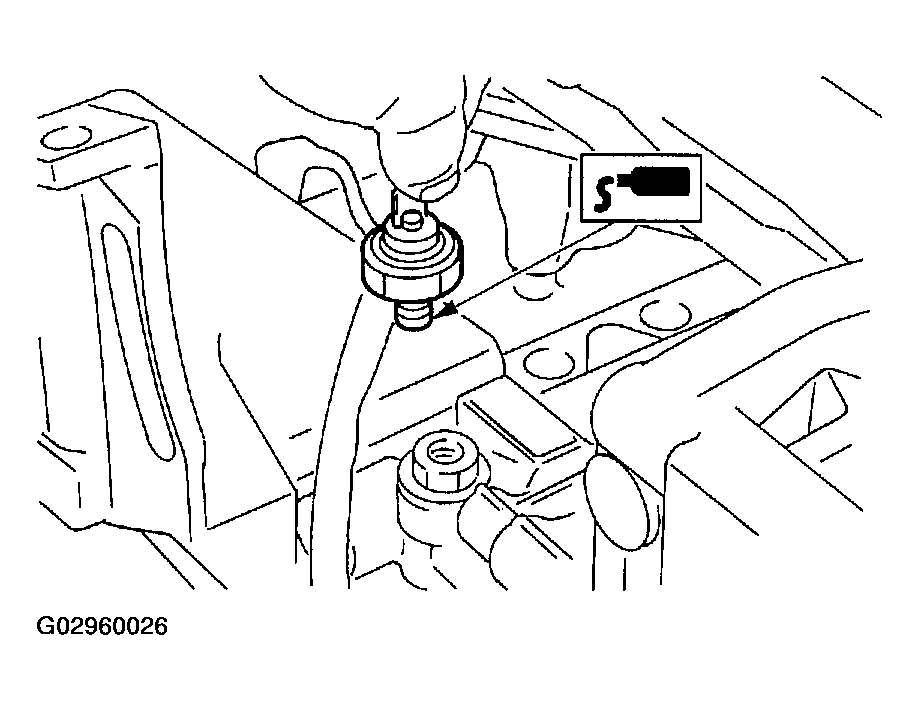

    Fig 1: Applying Fluid Packing To Oil Pressure Switch Threads
    G02960026Courtesy of SUBARU OF AMERICA, INC.
  2. Install oil pressure switch onto engine block.
    1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

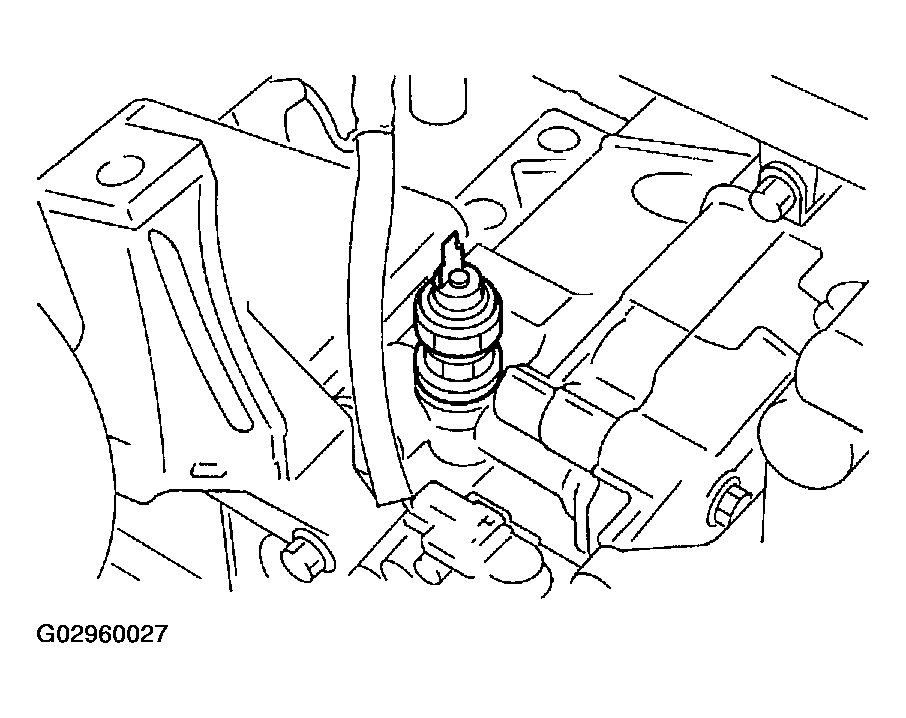

    Fig 2: Installing Oil Pressure Switch Onto Engine Block
    G02960027Courtesy of SUBARU OF AMERICA, INC.
  3. Connect terminal of oil pressure switch.

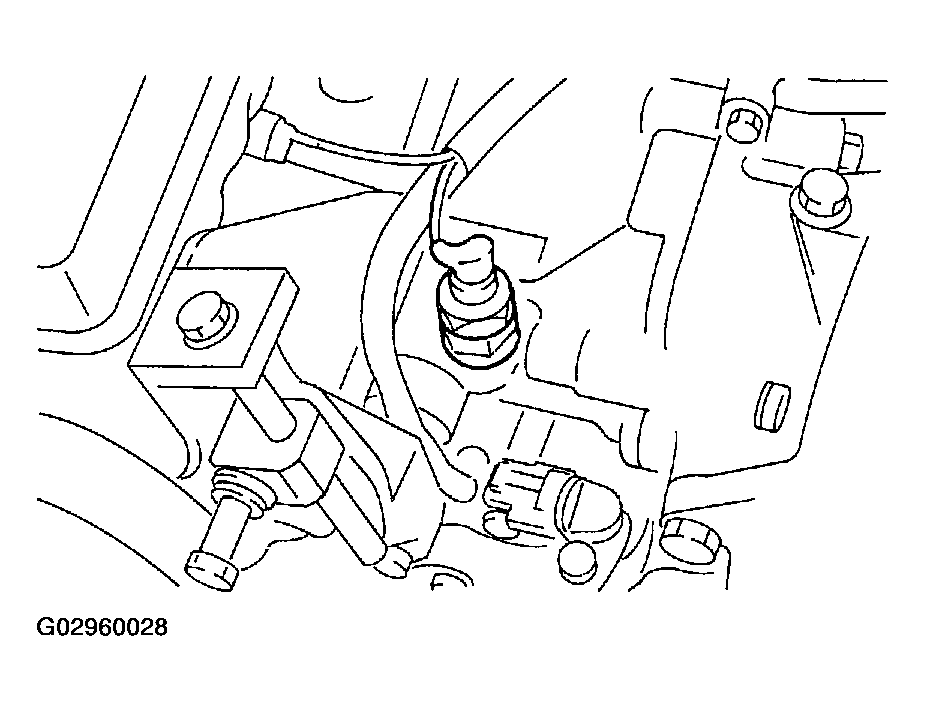

    Fig 3: Connecting Terminal Of Oil Pressure Switch
    G02960028Courtesy of SUBARU OF AMERICA, INC.
  4. Install generator on bracket. Refer to INSTALLATION , Generators
