Lubrication (H4SO) - Mechanism & Function
>>
Engine Oil Flow
Engine Oil Flow

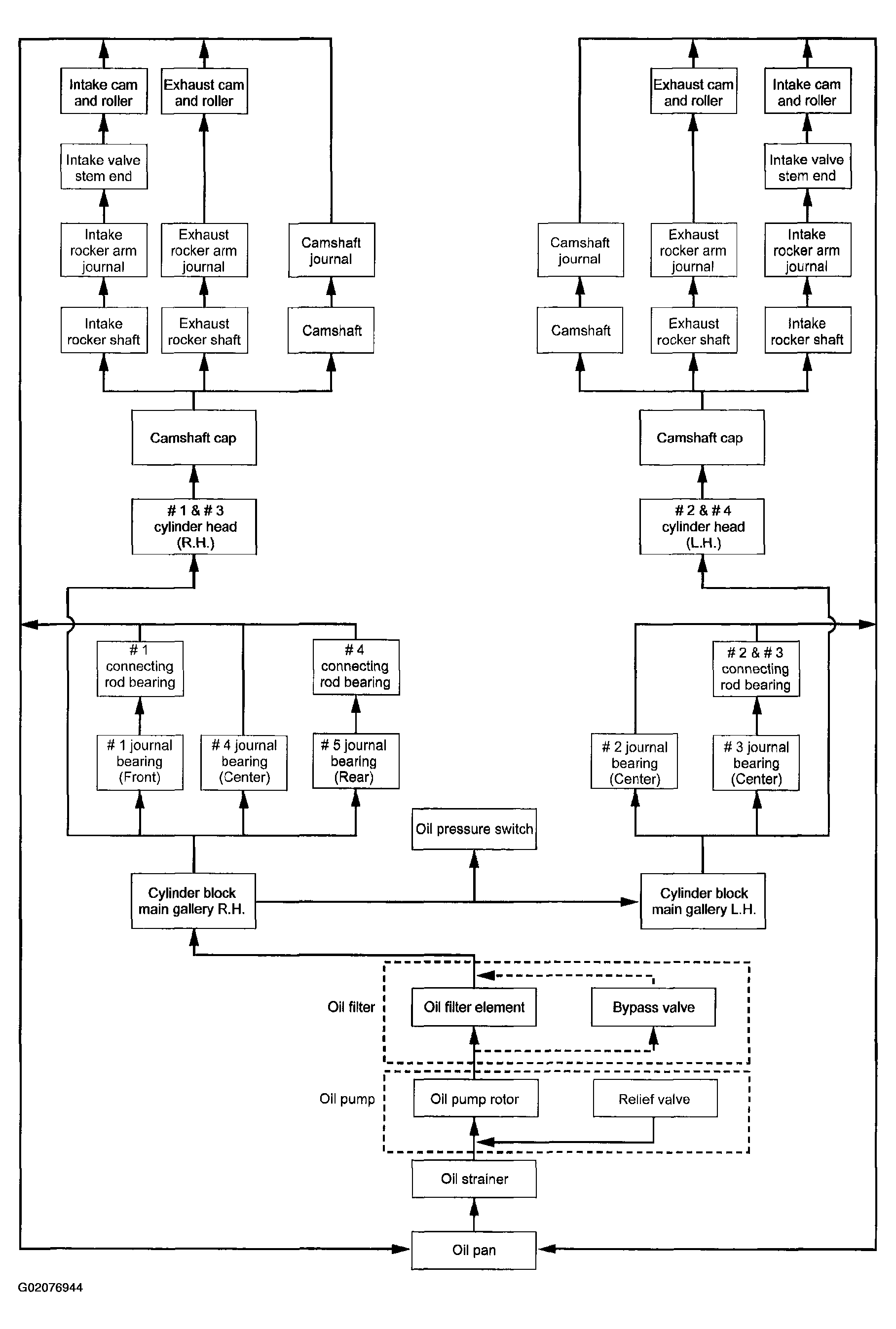

Fig 1: Engine Oil Flow Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
