LEMON Manuals: Even more car manuals for everyone

Home >> Subaru >> 2001 >> Outback Base, Automatic >> Repair and Diagnosis >> Drivelines & Axles >> Differentials & Drive Axles >> General Diagnostic Table >> Inspection

General Diagnostic Table: Inspection

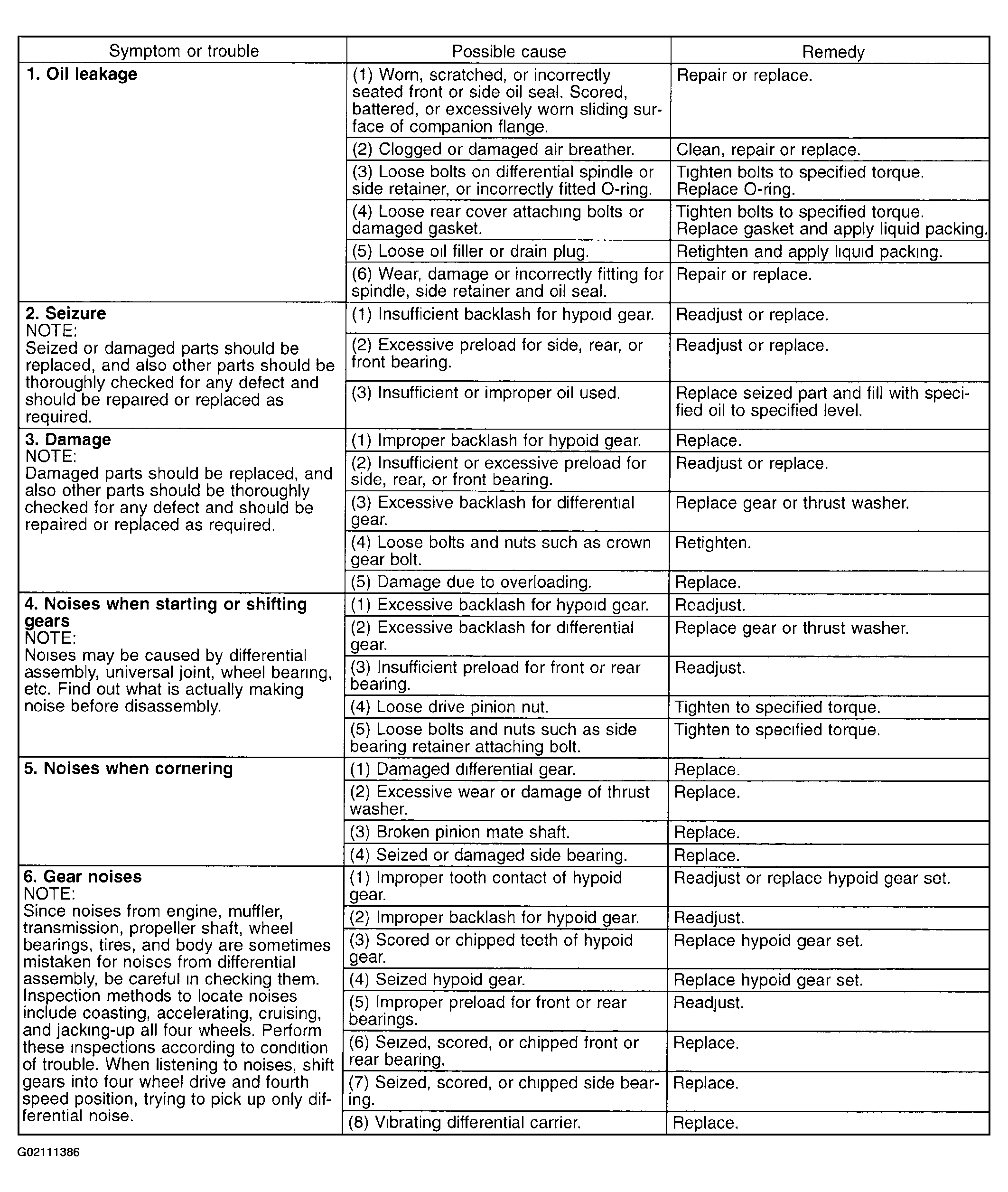

Fig 1: General Diagnostic Table

G02111386
