Rear Differential Mounting System

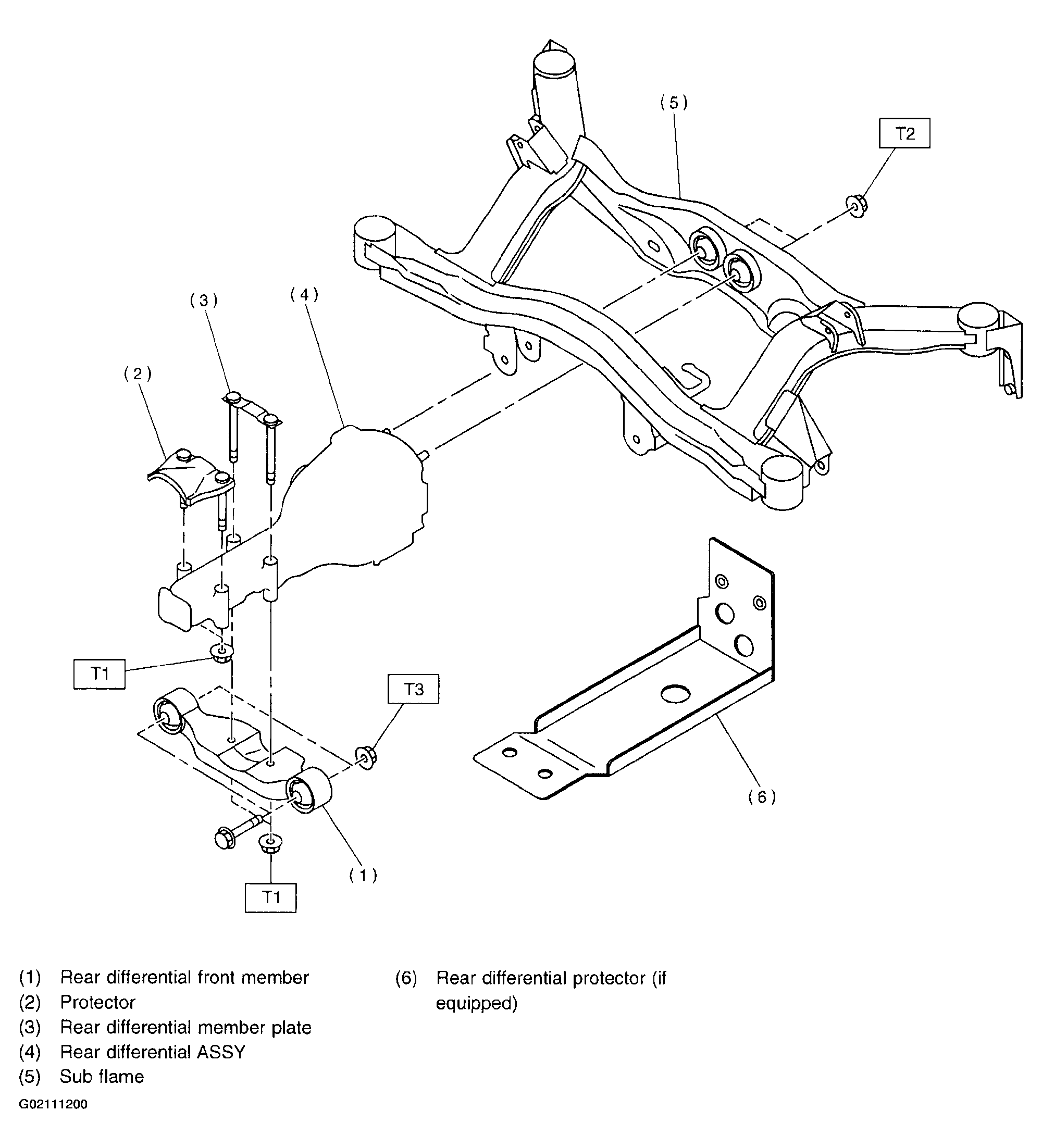

Fig 1: Exploded View Of Rear Differential Mounting System
G02111200

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  65 (6.6, 48)
  2. T2:  70 (7.1, 51)
  3. T3:  110 (11.2, 81)
