Electrical Components Location
>>
Location
Electrical Components Location: Location
Fig 1: Electrical Components Location Chart (1 Of 2)

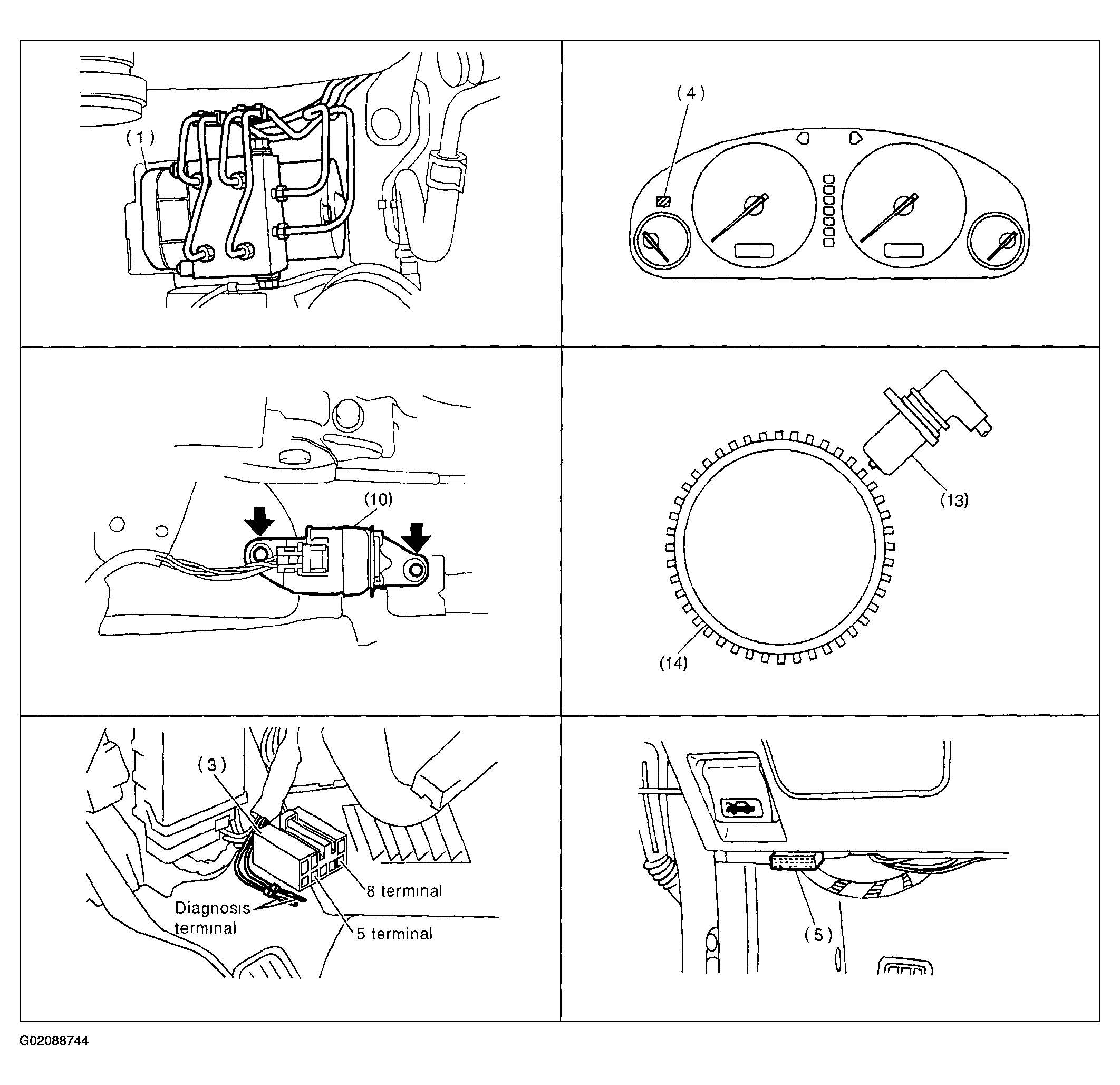

Fig 2: Electrical Components Location Chart (2 Of 2)
