Steering Wheel And Column

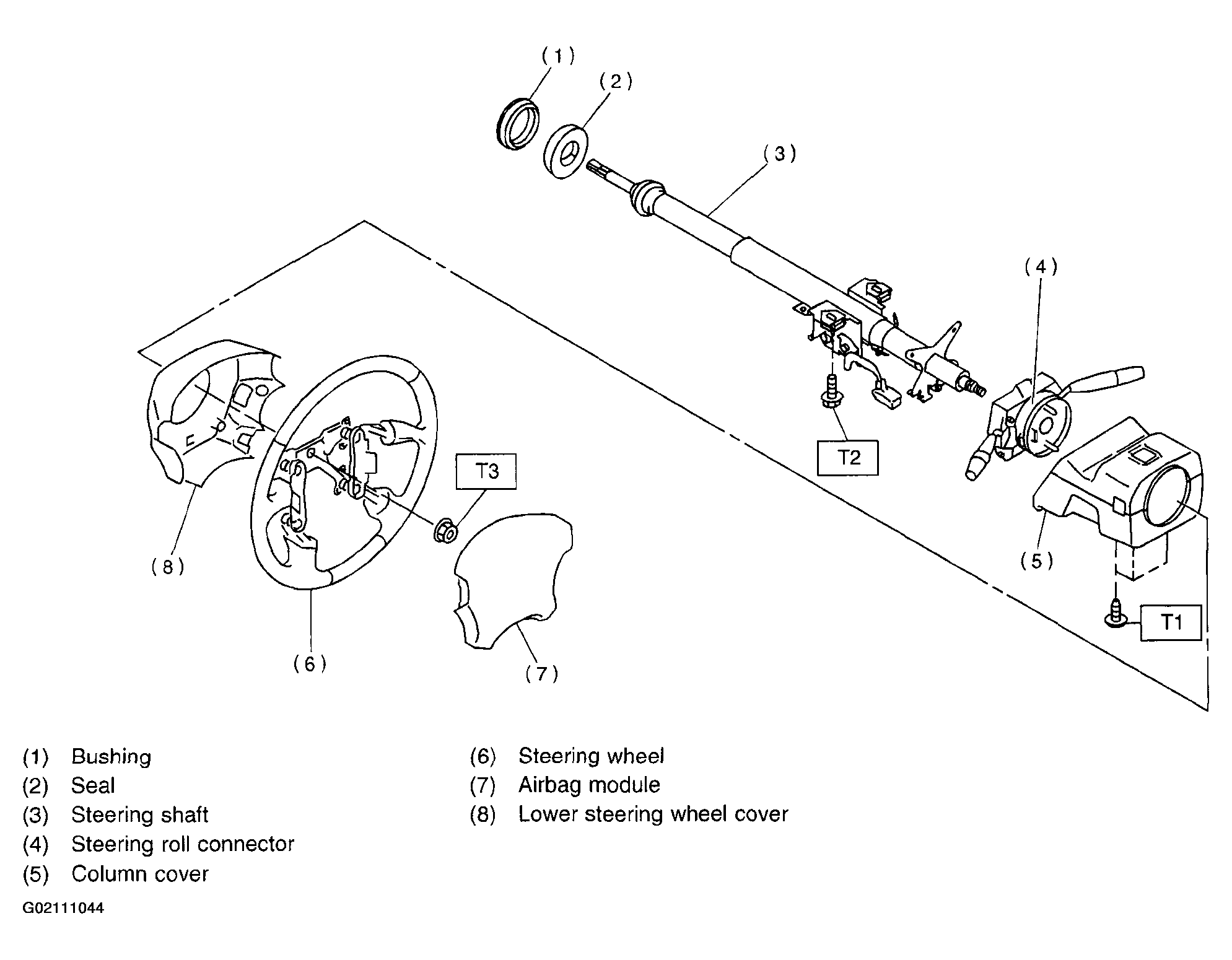

Fig 1: Exploded View Of Steering Wheel & Column
G02111044

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  1.2 (0.12, 0.9)
  2. T2:  25 (2.5, 18.1)
  3. T3:  44 (4.5, 32.5)
