Trouble Code 49 Abnormal Engine Speed Signal: Wiring Diagram

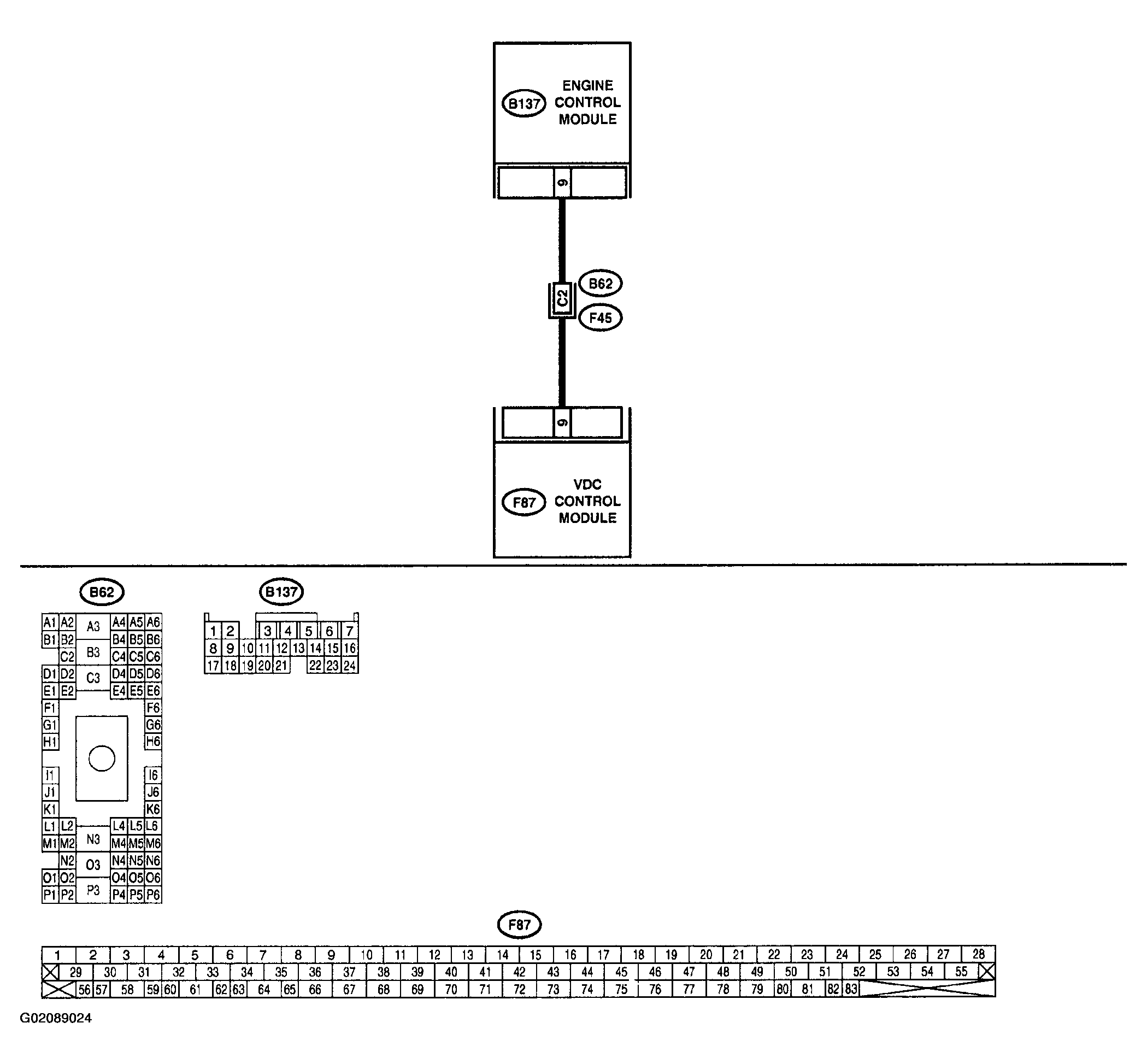

Fig 1: Wiring Diagram - Trouble Code 49 - With Select Monitor (Abnormal Engine Speed Signal)

G02089024
