Code 71: Abnormal Steering Angle Sensor: Wiring Diagram

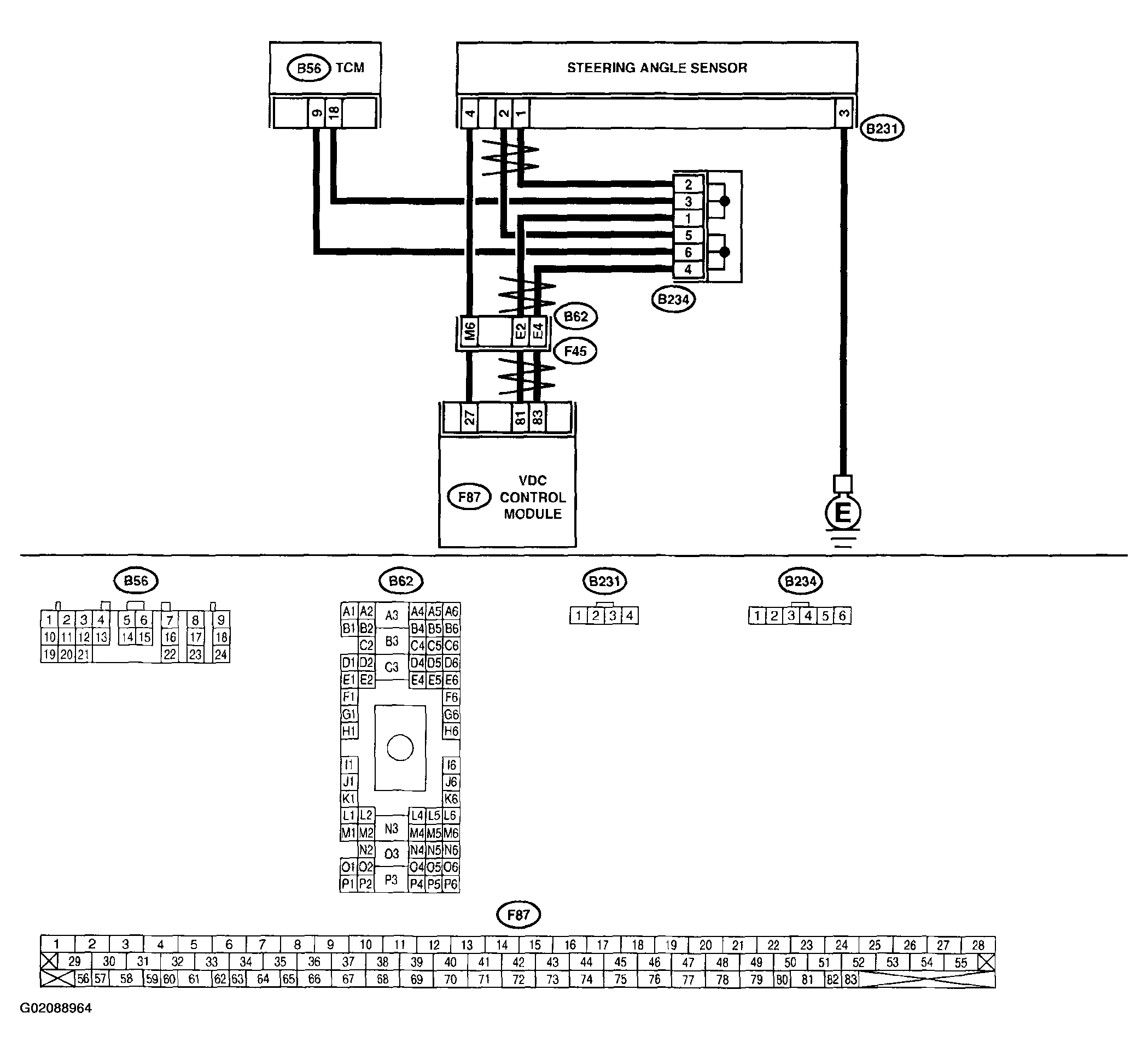

Fig 1: Wiring Diagram - Trouble Code 71 - With Diagnostic Connector

G02088964
