Diagnostic Chart

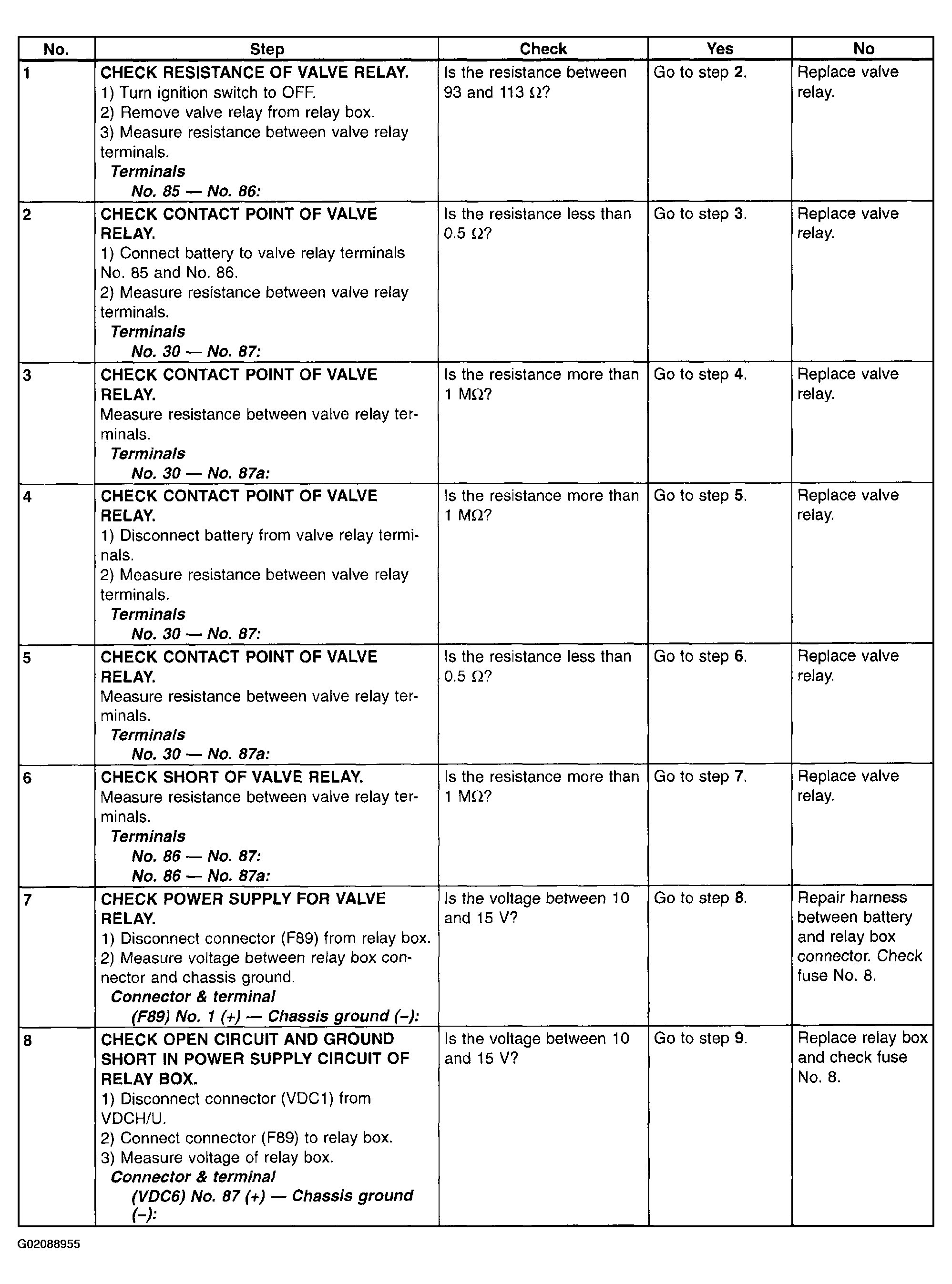

Fig 1: Diagnostic Chart - Trouble Code 51 - With Diagnostic Connector (1 Of 5)
G02088955

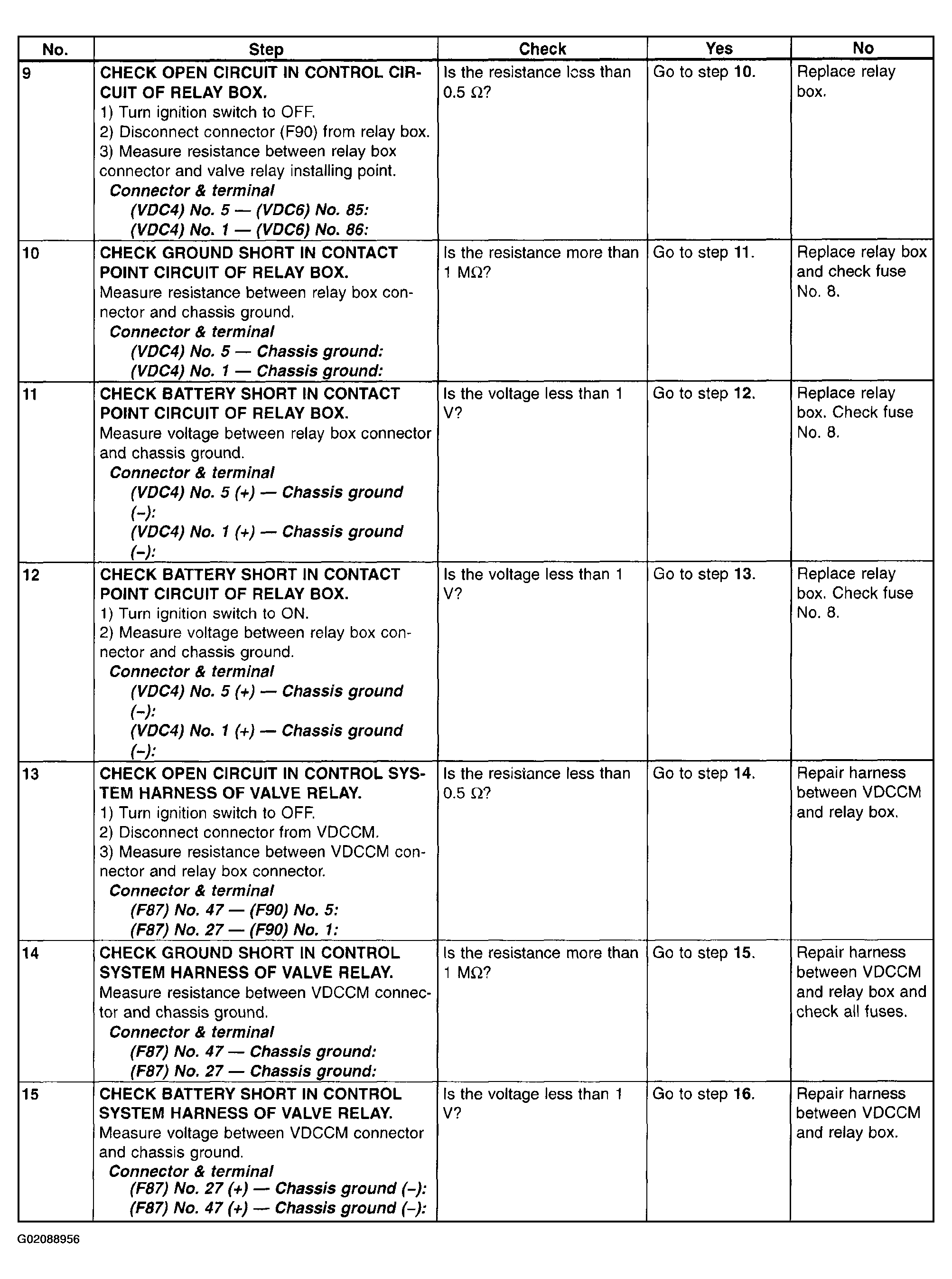

Fig 2: Diagnostic Chart - Trouble Code 51 - With Diagnostic Connector (2 Of 5)
G02088956

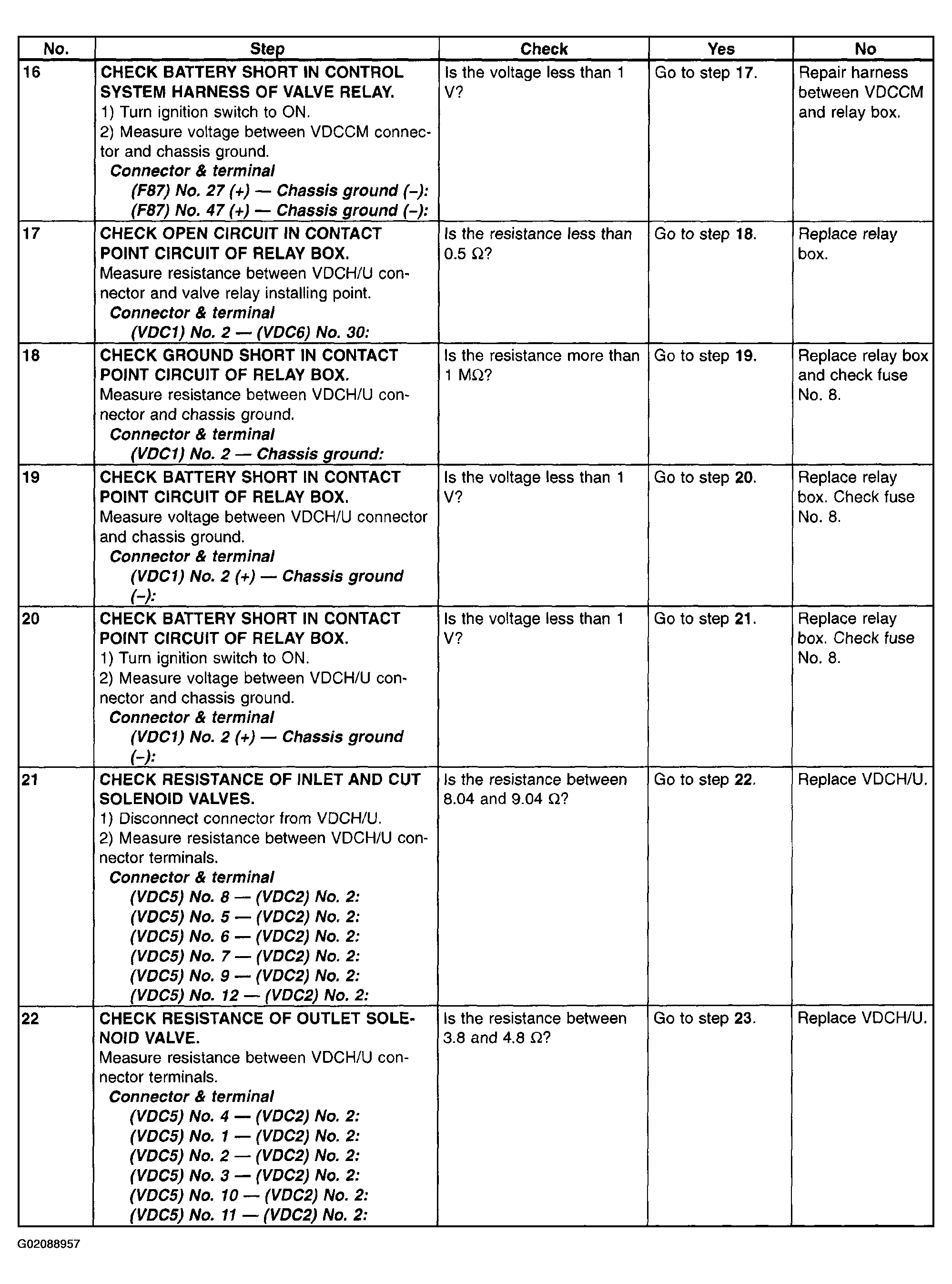

Fig 3: Diagnostic Chart - Trouble Code 51 - With Diagnostic Connector (3 Of 5)
G02088957

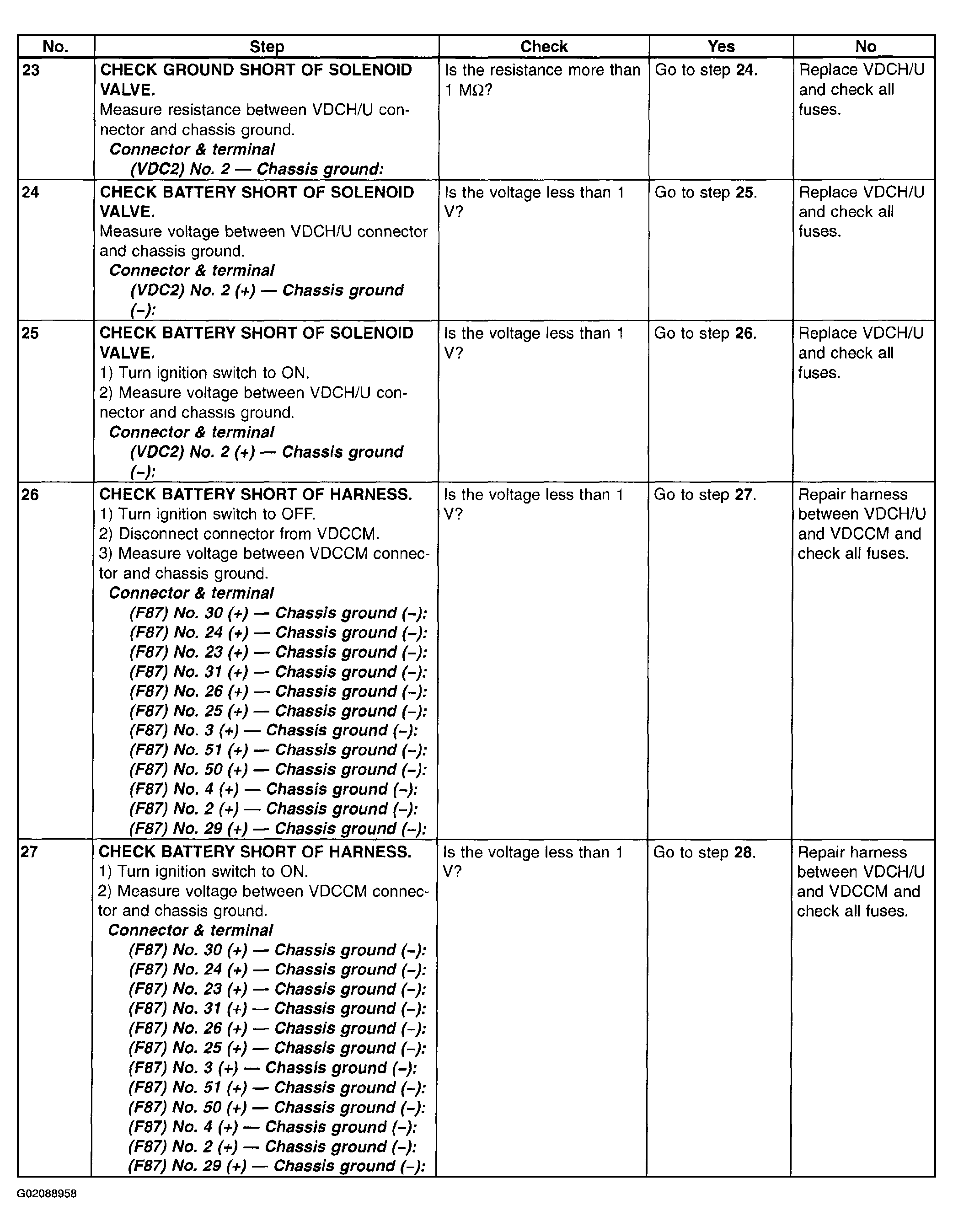

Fig 4: Diagnostic Chart - Trouble Code 51 - With Diagnostic Connector (4 Of 5)
G02088958

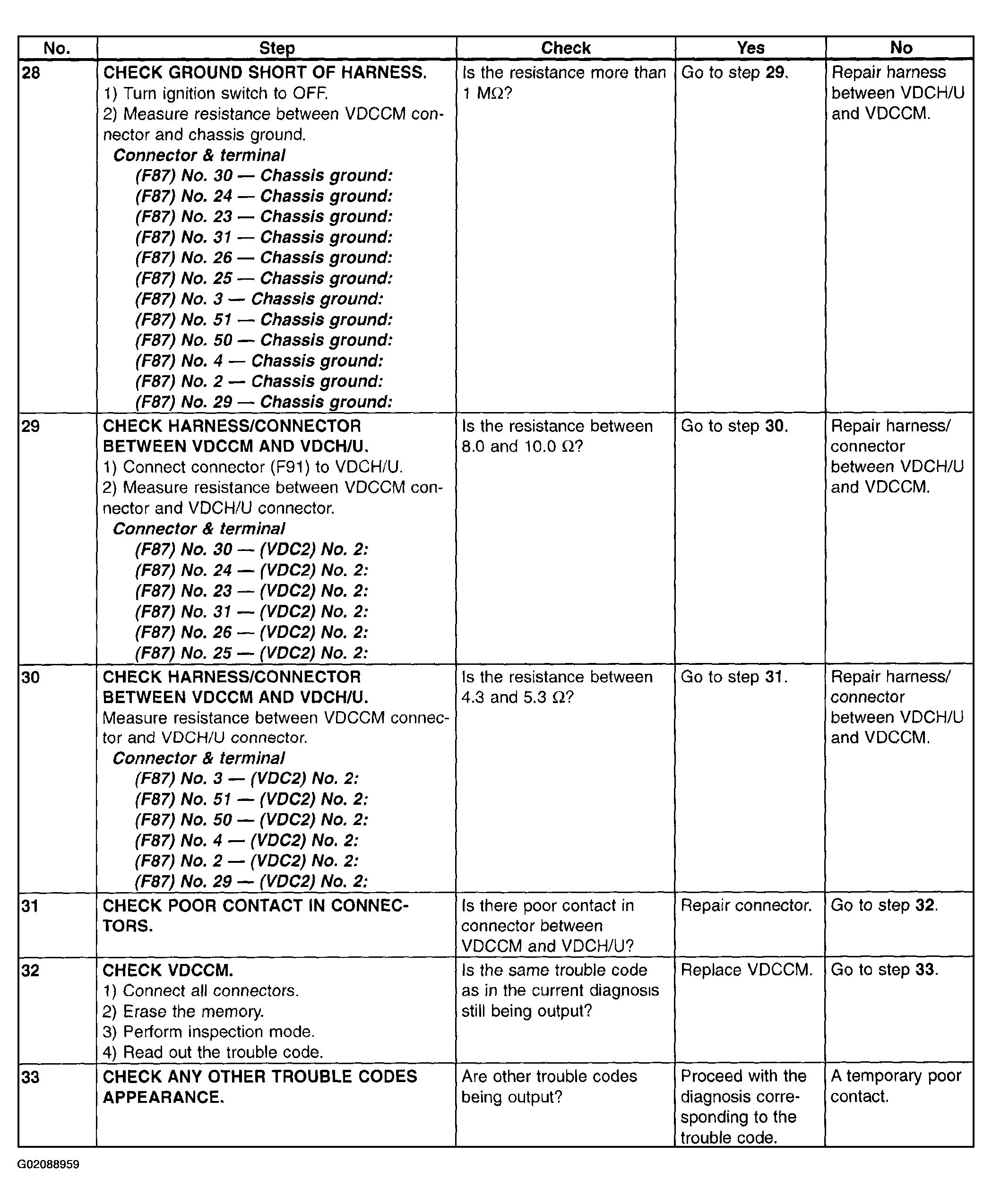

Fig 5: Diagnostic Chart - Trouble Code 51 - With Diagnostic Connector (5 Of 5)
G02088959
