Code 47: Faulty Can Communication Line: Wiring Diagram

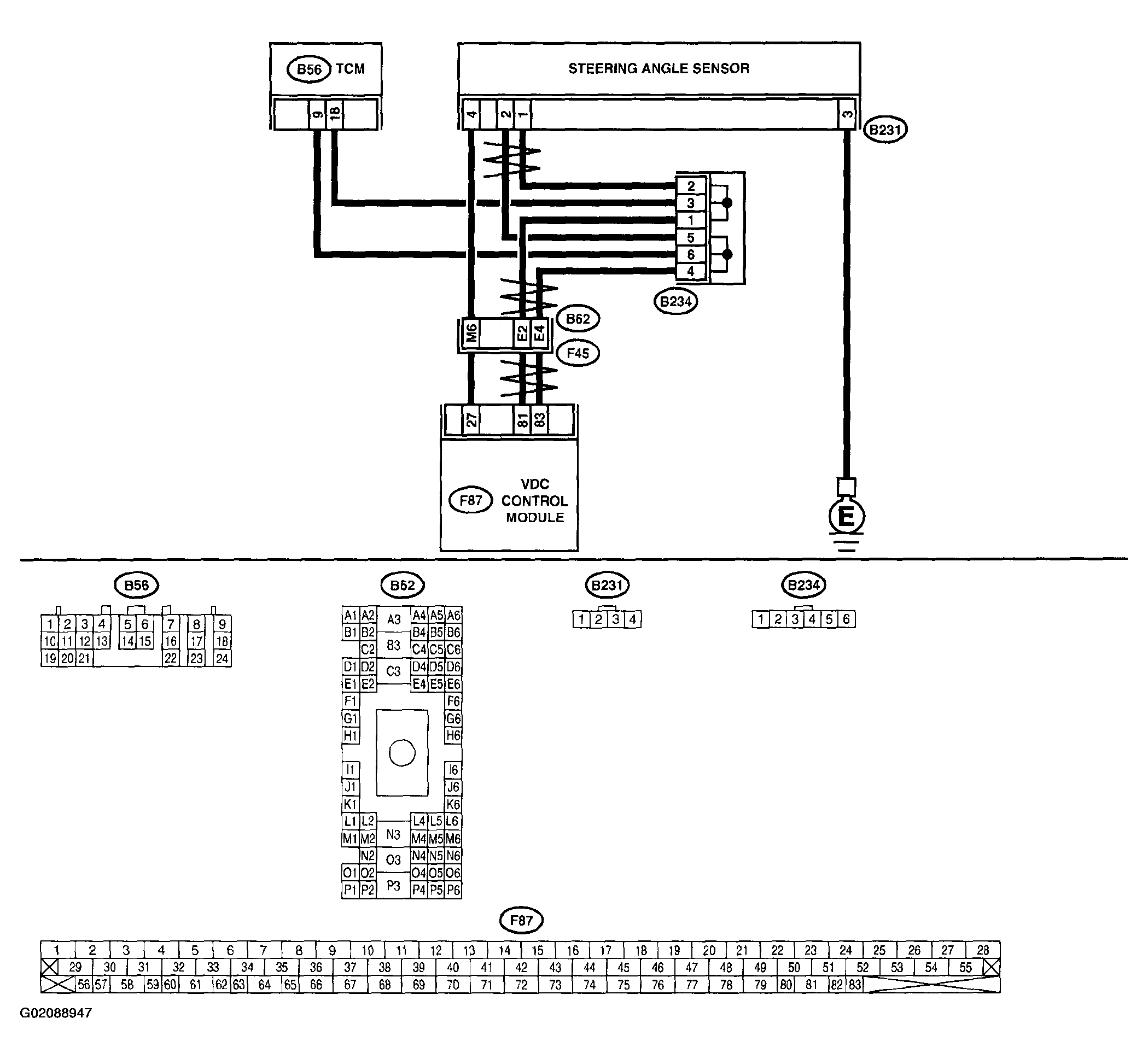

Fig 1: Wiring Diagram - Trouble Code 47 - With Diagnostic Connector

G02088947
