M/T Gear Shift Lever: Disassembly

Disconnect locking wire.

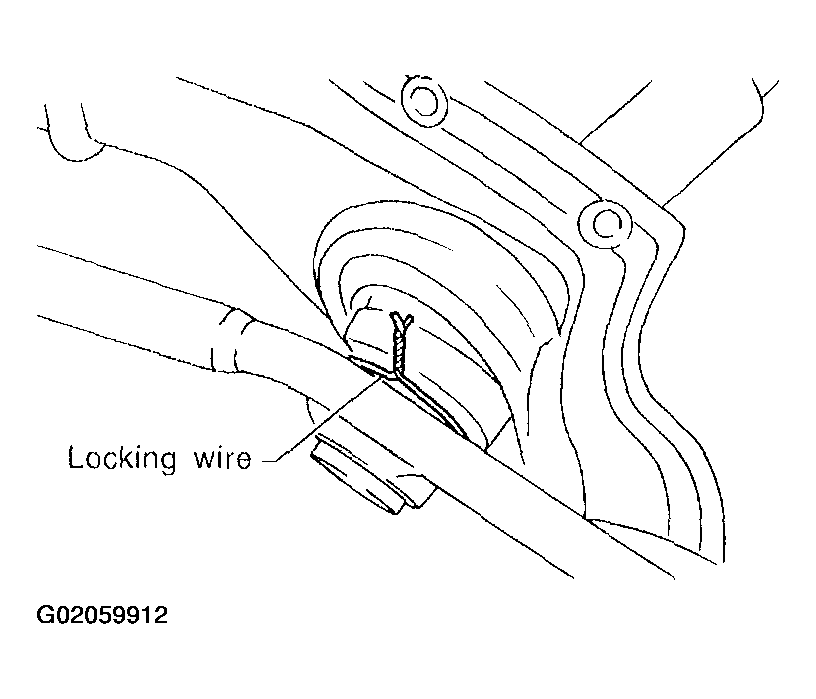

Fig 1: Removing Locking Wire
Remove rod from lever.

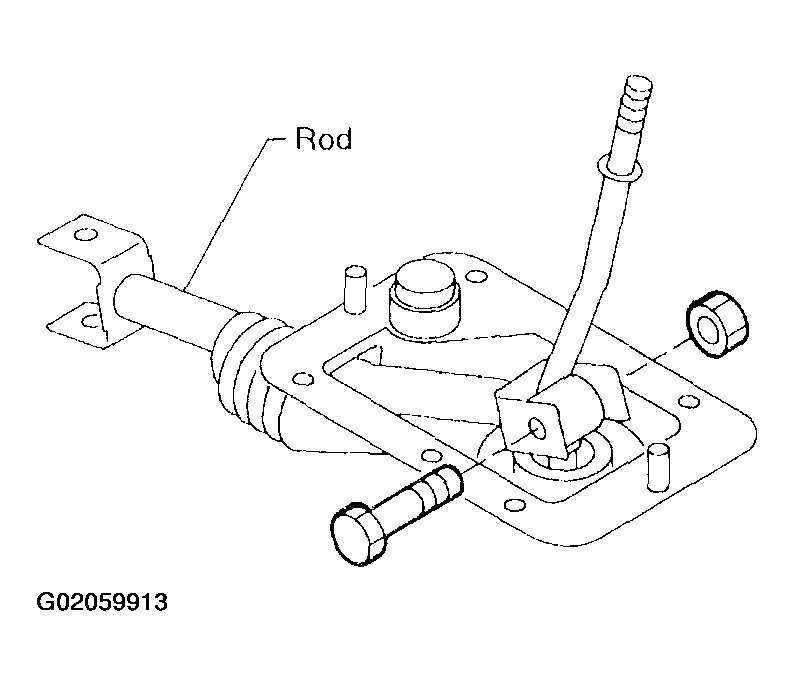

Fig 2: Removing Rod From Lever
Remove snap ring, then disconnect lever from stay.

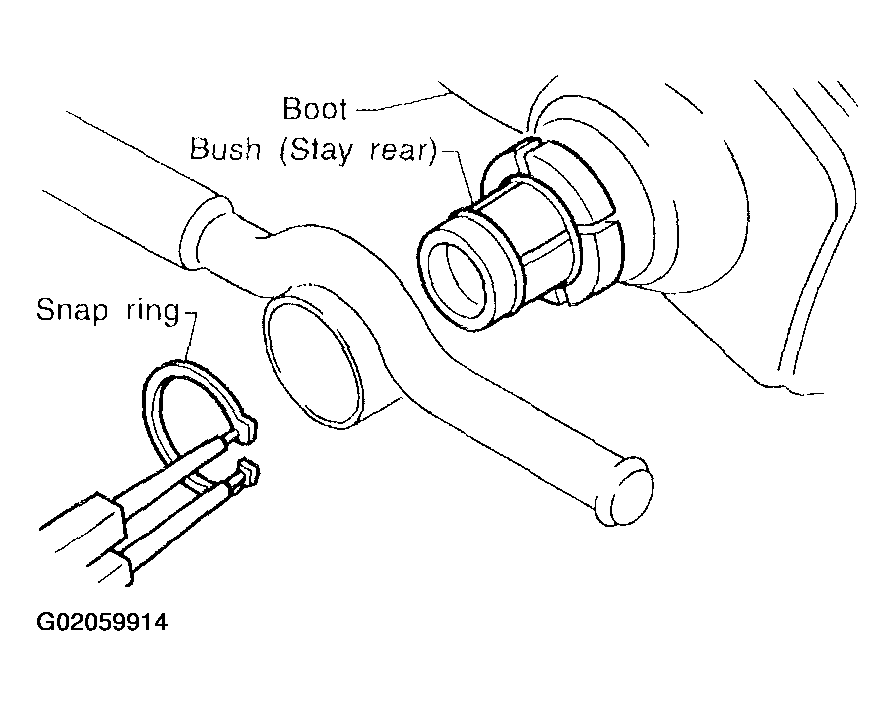

Fig 3: Removing Snap Ring
Remove boot from gearshift lever.
Remove O-ring, then disconnect bush (Stay rear)

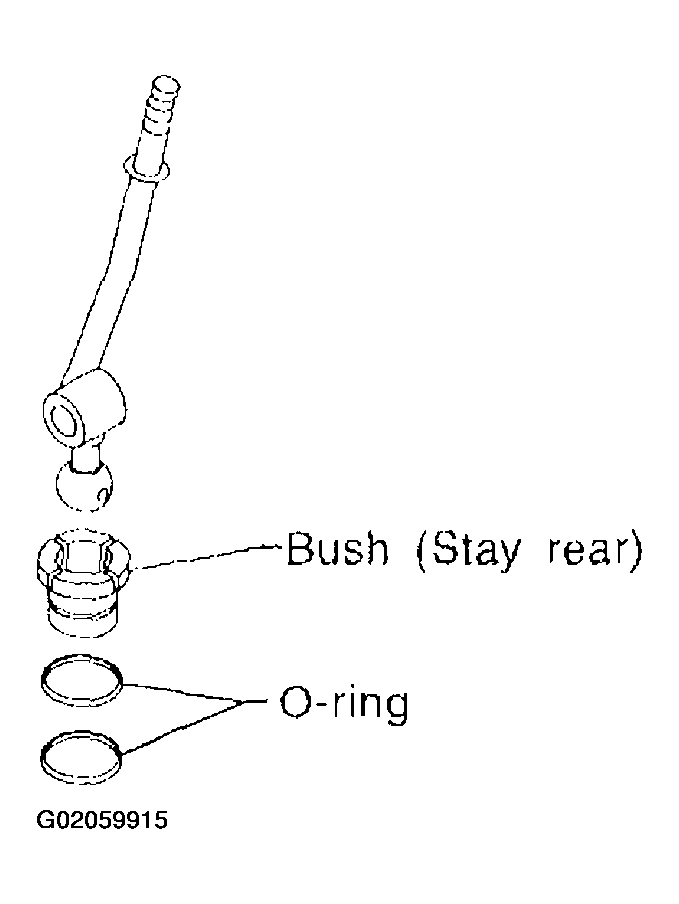

Fig 4: Removing O-Ring
Draw out spring pin, then remove bush (Shift lever) from lever.

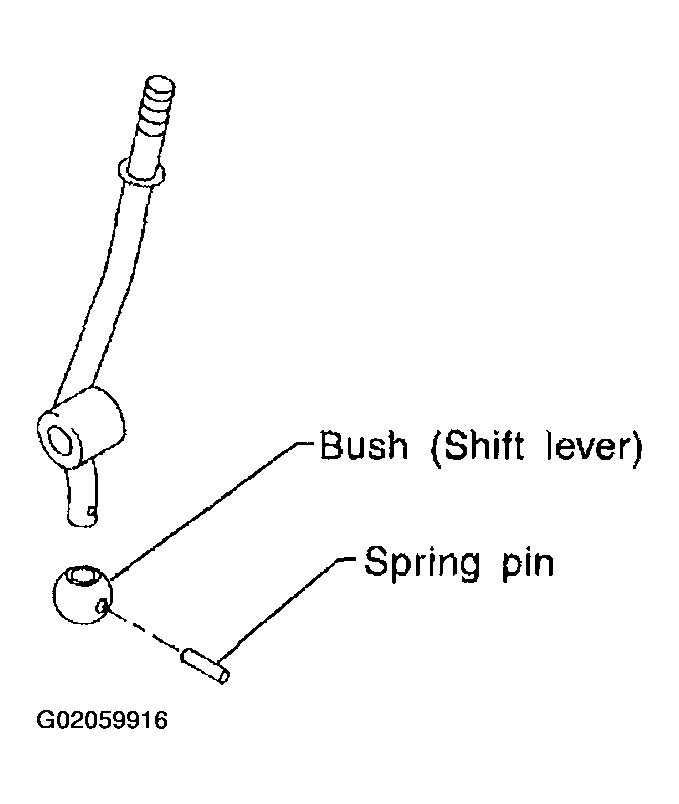

Fig 5: Identifying Spring Pin At Shift Lever
