A/T Select Lever: Installation

  1. Mount the select lever onto the vehicle body.
  2. Tighten the six bolts to install the select lever to the vehicle body, then connect connectors.
    1. Tightening torque:  4.5 N.m (0.46 kgf-m, 3.3 ft-lb)

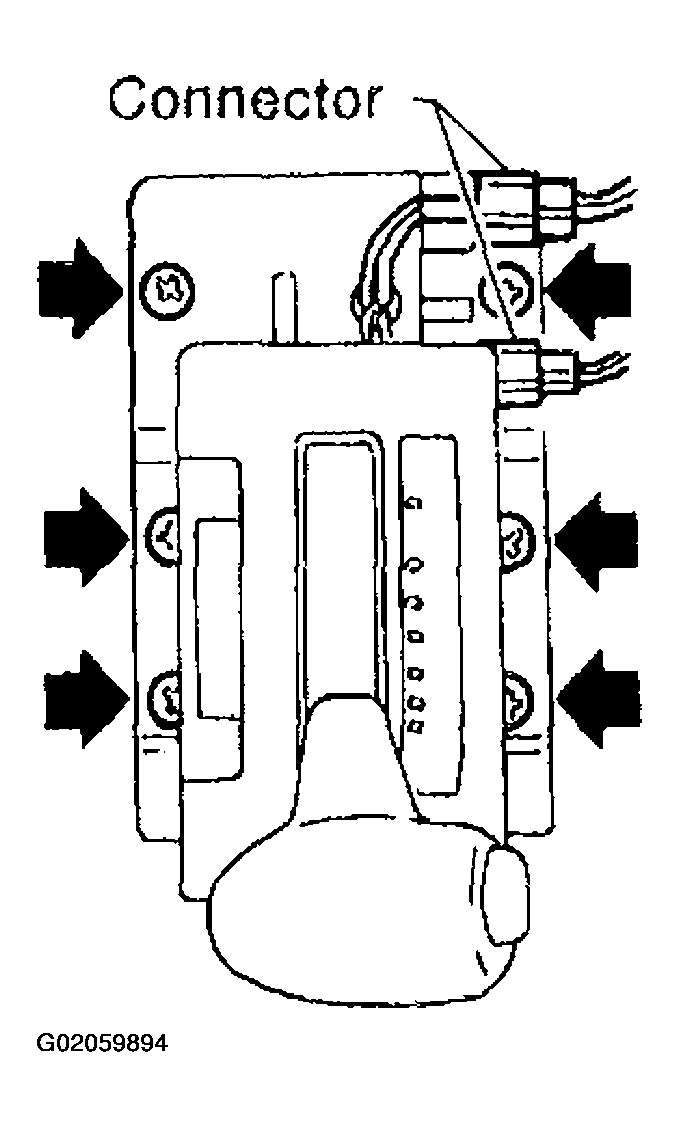

    Fig 1: Installing Select Lever To Vehicle Body
    G02059894
  3. Install console box.
  4. Set location of select lever at "N" position.
  5. Set location of selector arm installed on the transmission body at "N" position.
    Fig 2: Setting Location Of Select Lever & Selector Arm
    G02059895
  6. Pass inner cable through selector arm pin and then connect it using a washer and snap pin.
  7. Attach outer cable to plate on transmission case with the bolts.
    1. Tightening torque:  33 N.m (3.4 kgf-m, 25 ft-lb)

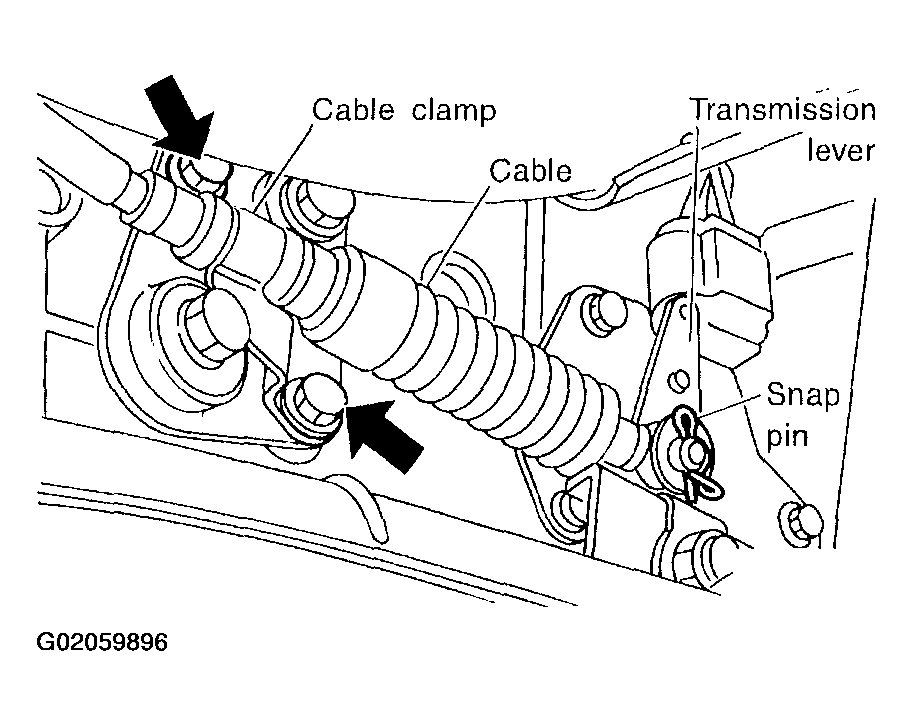

    Fig 3: Installing Outer Cable To Plate On Transmission Case
    G02059896
  8. Insert the thread portion of the other inner cable and into the connector hole of the select lever, and fix the other outer cable end to the bracket.
    1. Tightening torque:  18 N.m (1.8 kgf-m, 13.0 ft-lb)
  9. Adjust the inner cable length.
    1. Put connector into contact with nut (A).
    2. Tighten nut (B)
    1. Tightening torque:  7.4 N.m (0.75 kgf-m, 5.4 ft-lb)

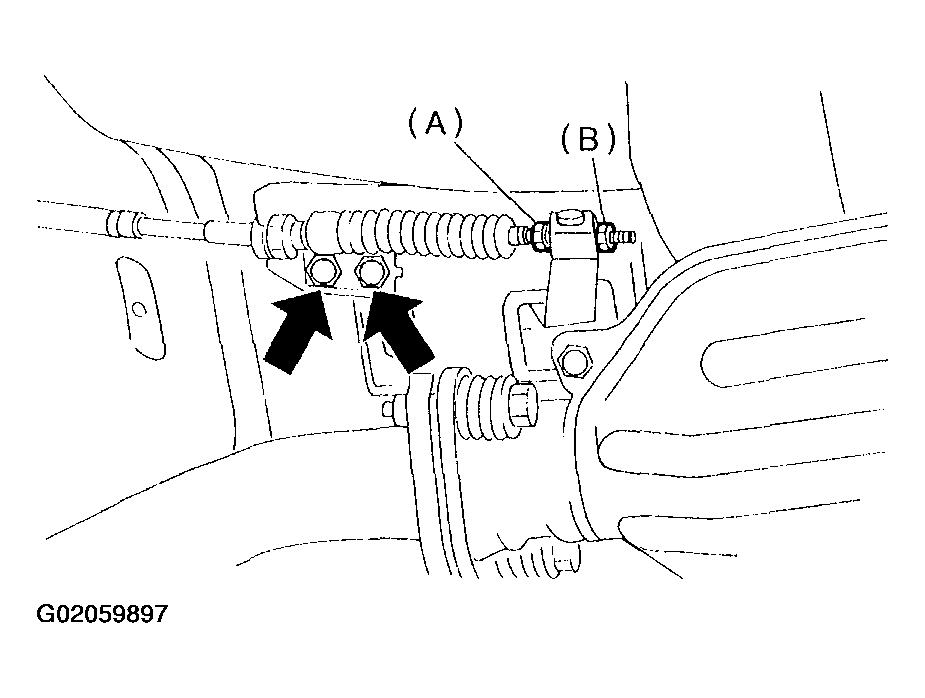

    Fig 4: Putting Connector Into Contact With Nut
    G02059897
  10. After completion of fitting, make sure that the select lever operates smoothly all across the operating range.
  11. Connect the harnesses and check the following items.
    1. The engine starts operating when select lever is in position "P", but not in other positions.
    2. The back-up light is lit when the select lever is in position "R", but not in other positions.
  12. Check select lever operation.
    WARNING: Stop the engine while checking operation of select lever.
    1. Check that select lever does not move from "N" to "R" without pushing the button.
    2. Check that select lever does not move from "R" to "P" without pushing the button.
    3. Check that select lever does not move from "P" to "R" without pushing the button.
    4. Check that select lever does not move from "3" to "2" without pushing the button.

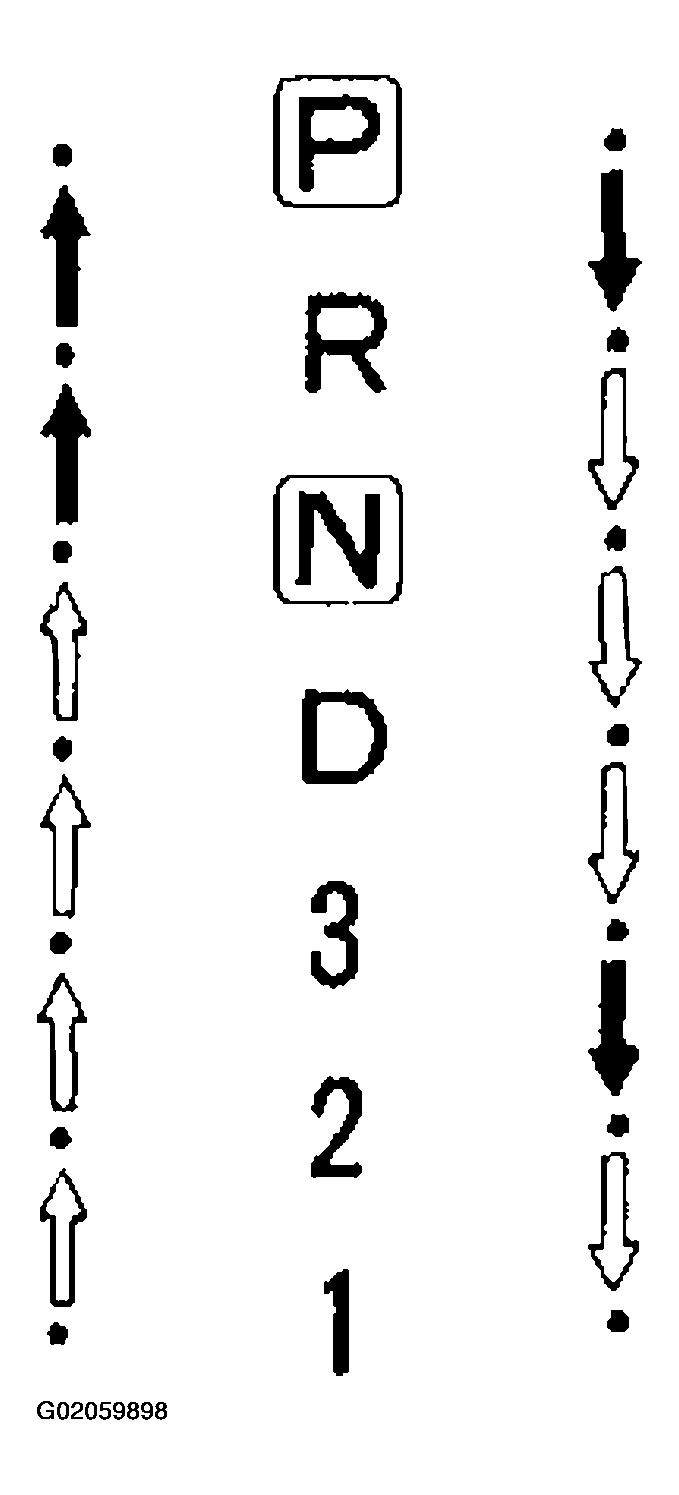

    Fig 5: Checking Select Lever Operation
    G02059898
  13. Check shift-lock system.
    1. Ensure ignition switch rotates from "ACC" to "LOCK" when the select lever is set at "P". Also check that ignition key can be removed only from the "LOCK" position.
    2. Ensure select lever moves from "P" to any other position when the brake pedal is depressed with ignition key set at "ON" or "START".
