A/T Select Lever: Disassembly

  1. Remove connector from plate.
    Fig 1: Removing Connector From Plate
    G02059899
  2. Remove indicator light and two screws.
  3. Remove retainer spring, then pull up select lever grip with indicator cover for holding select lever button.
    CAUTION: Pull the select lever grip carefully so that the select lever button may not jump out.
    Fig 2: Removing Indicator Light & Other Components From Select Lever
    G02059900
  4. Remove shift-lock solenoid and "P" position switch.

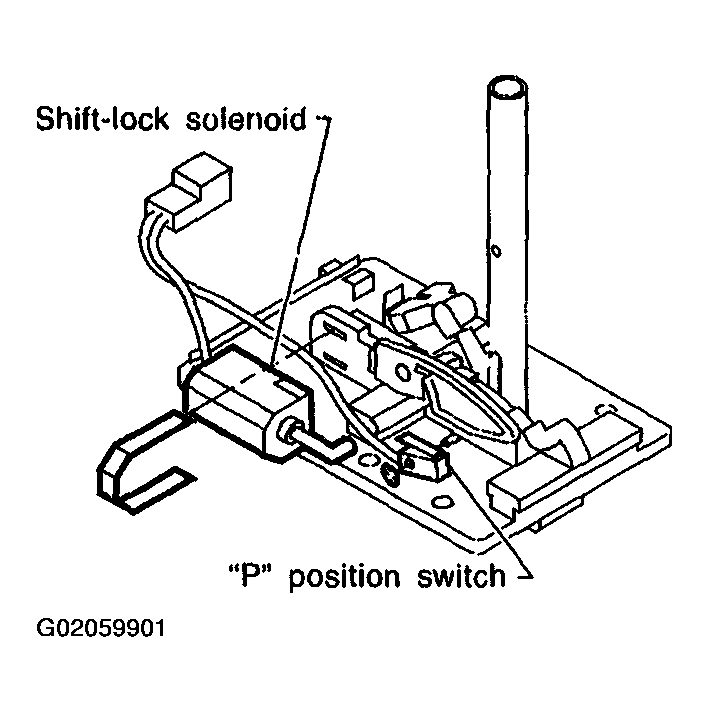

    Fig 3: Removing Shift-Lock Solenoid & "P" Position Switch
    G02059901
  5. Remove cap and clip, then extract pin.
  6. Remove select lever lower then take away select lever upper from plate.
    Fig 4: Removing Cap & Clip
    G02059902
