Wheel Alignment

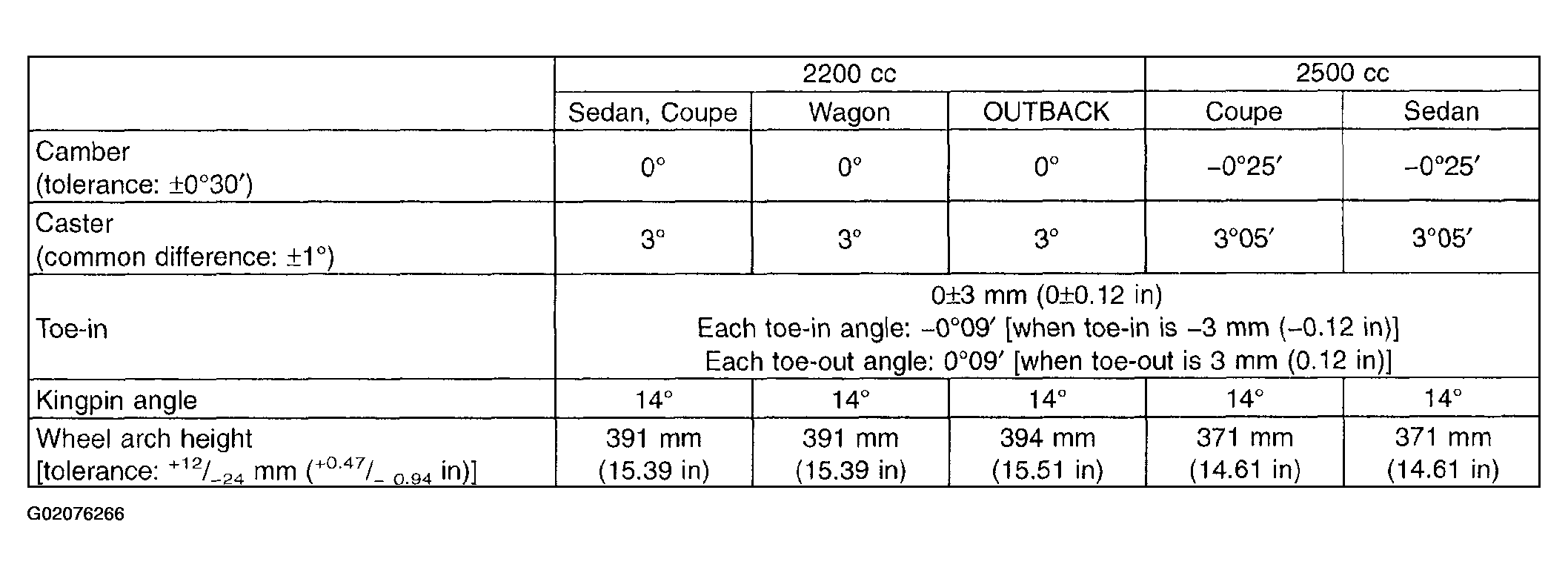

Fig 1: Front Wheel Alignment Specifications

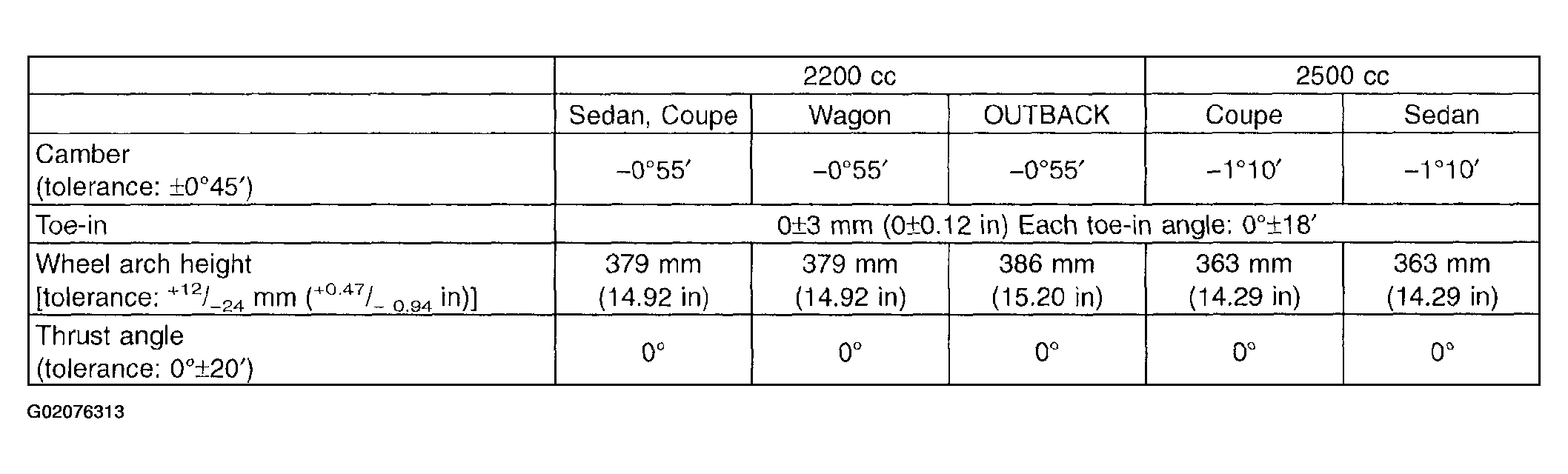

Fig 2: Rear Wheel Alignment Specifications

NOTE:

Front and rear toe-ins and front camber can be adjusted. If toe-in or camber tolerance exceeds specifications, adjust toe-in and camber to the specification.
The other items indicated in the specification table cannot be adjusted. If the other items exceeds specifications, check suspension parts and connections for deformities; and replace with new ones as required.

Fig 3: Wheel Alignment Angles
