Front Suspension

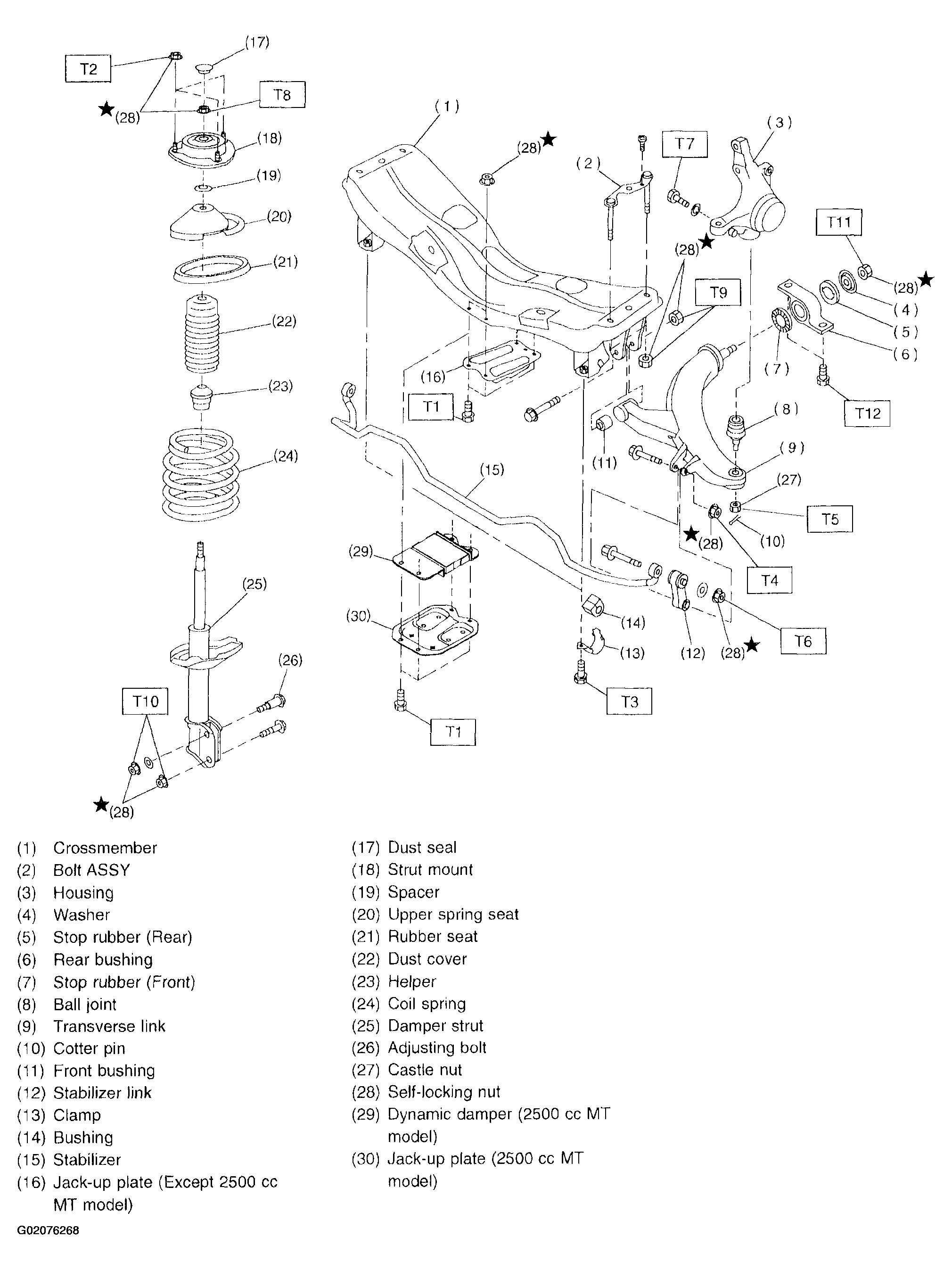

Fig 1: Identifying Front Suspension Components

Tightening torque: N.m (kgf-m, ft-lb)

1. T1:  18 (1.8, 13.0)
2. T2:  20 (2.0, 14.5)
3. T3:  25 (2.5, 18.1)
4. T4:  29 (3.0, 21.7)
5. T5:  39 (4, 29)
6. T6:  44 (4.5, 32.5)
7. T7:  49 (5.0, 36)
8. T8:  54 (5.5, 39.8)
9. T9:  98 (10.0, 72)
10. T10:  152 (15.5, 112)
11. T11:  186 (19.0, 137)
12. T12:  245 (25.0, 181)
