Roll Over Valve: Installation

Install in the reverse order of removal.

CAUTION:
  • Do not install top side of valve down.
  • Before installing bracket on body, securely fit concave part of bracket to hole in body.

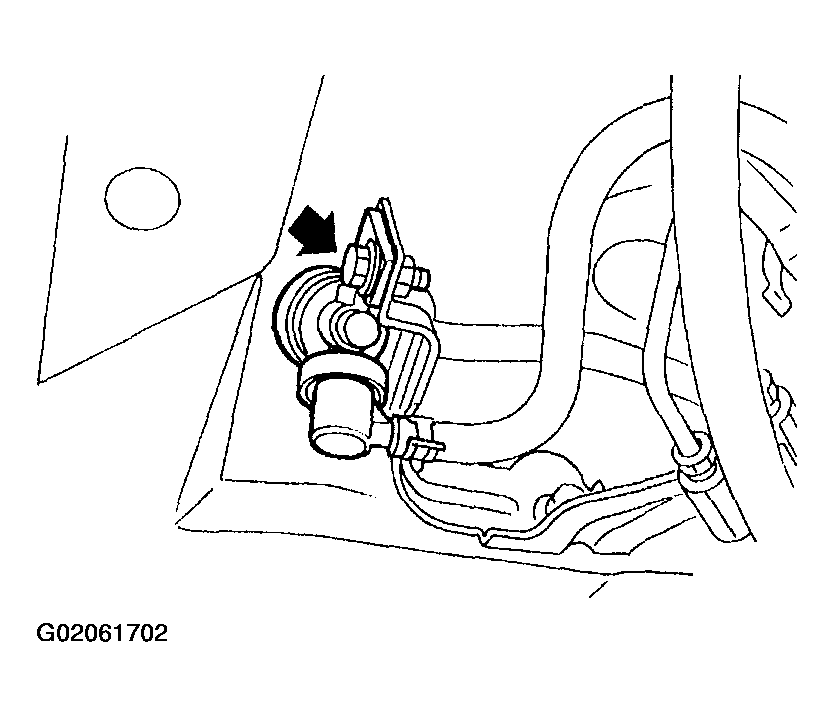

    Fig 1: Securing Concave Part Of Bracket To Hole In Body
    G02061702
