Main Relay: Removal

  1. Disconnect battery ground cable.

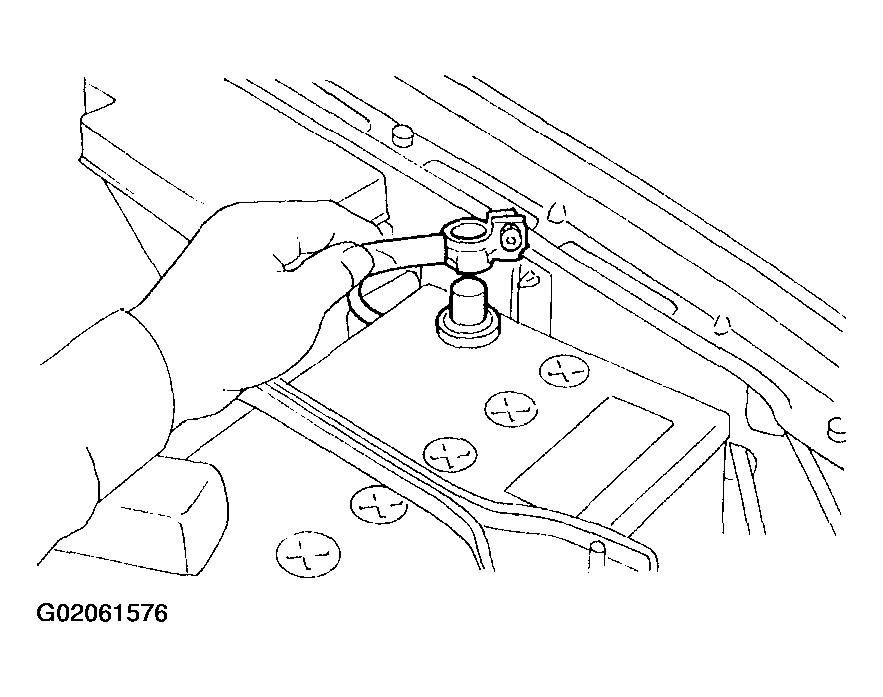

    Fig 1: Disconnecting Battery Ground Cable
    G02061576
  2. Remove bolt which holds bracket of main relay and fuel pump relay.

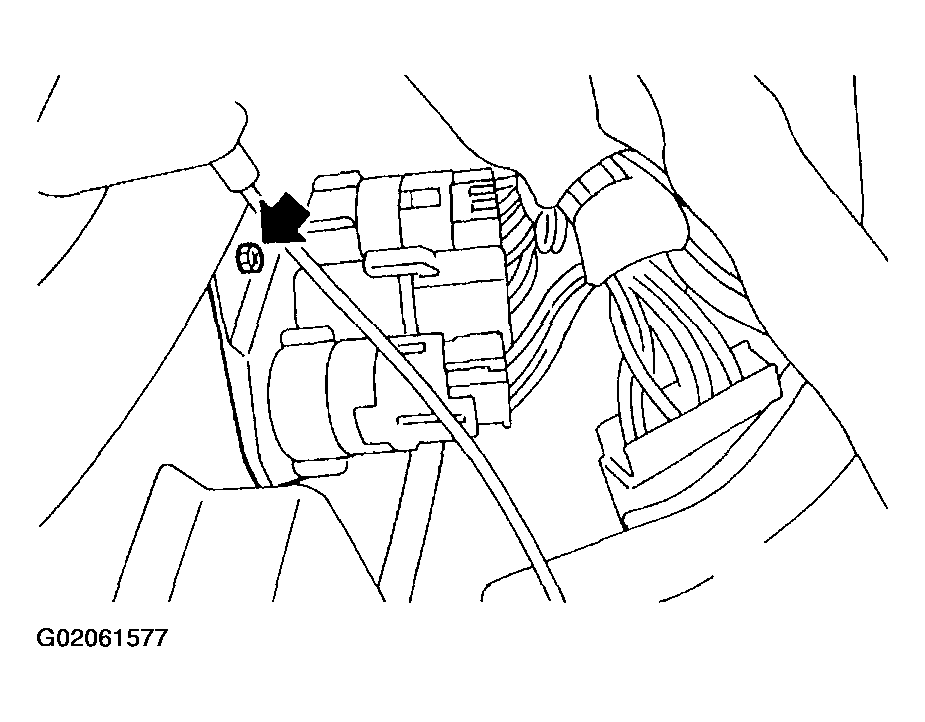

    Fig 2: Removing Bolt From Bracket Of Main Relay & Fuel Pump Relay
    G02061577
  3. Disconnect connectors from relays.

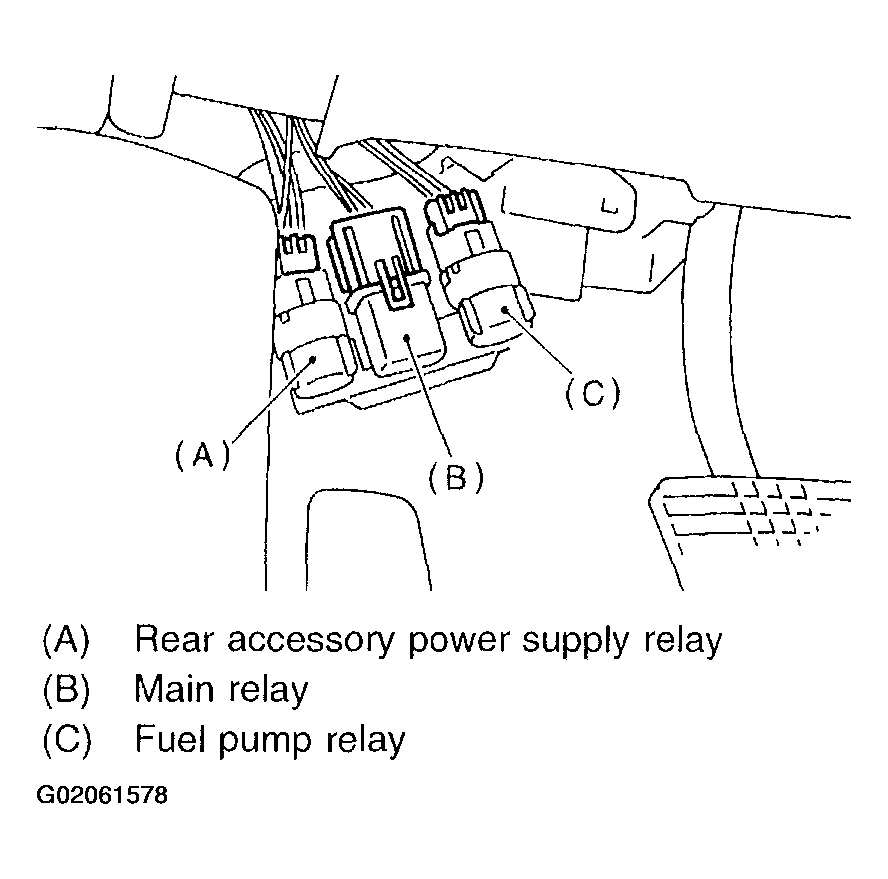

    Fig 3: Disconnecting Connectors From Relays
    G02061578
  4. Remove main relay from mounting bracket.
    Fig 4: Removing Main Relay From Mounting Bracket
    G02061579
