Fuel Tank: Removal

Set the vehicle on the lift.
Release fuel pressure. See RELEASING OF FUEL PRESSURE , Fuel.

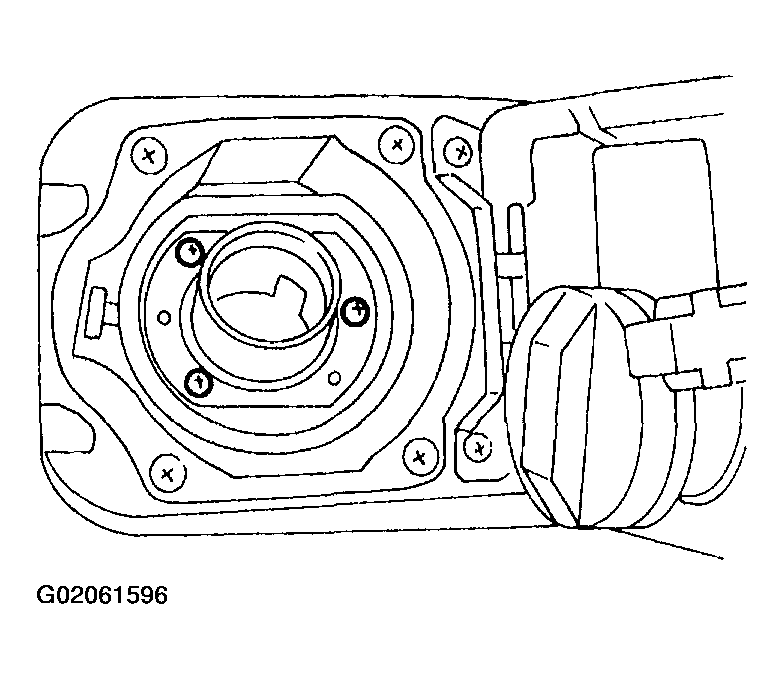

Open fuel flap lid, and remove fuel filler cap.

Fig 1: Removing Fuel Filler Cap

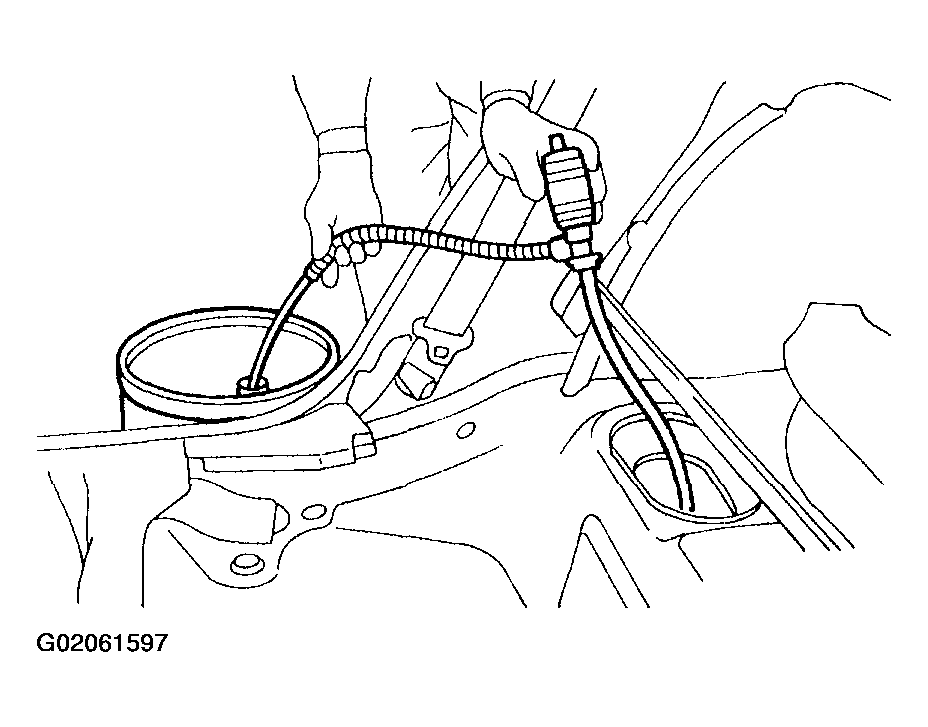

Drain fuel from fuel tank. See DRAINING FUEL , Fuel.

Fig 2: Draining Fuel From Fuel Tank
Remove rear seat cushion. (Sedan model)

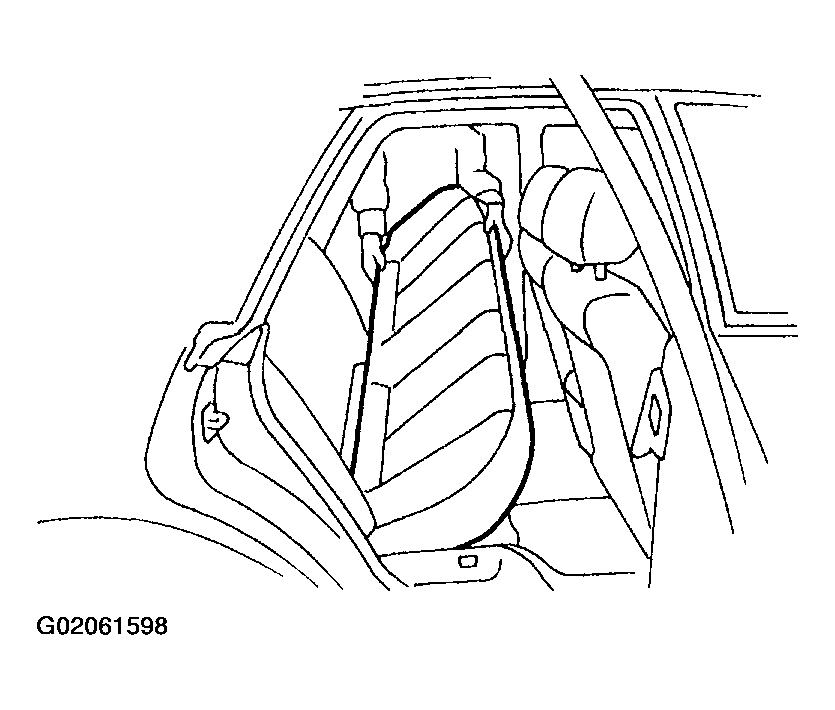

Fig 3: Removing Rear Seat Cushion (Sedan Model)

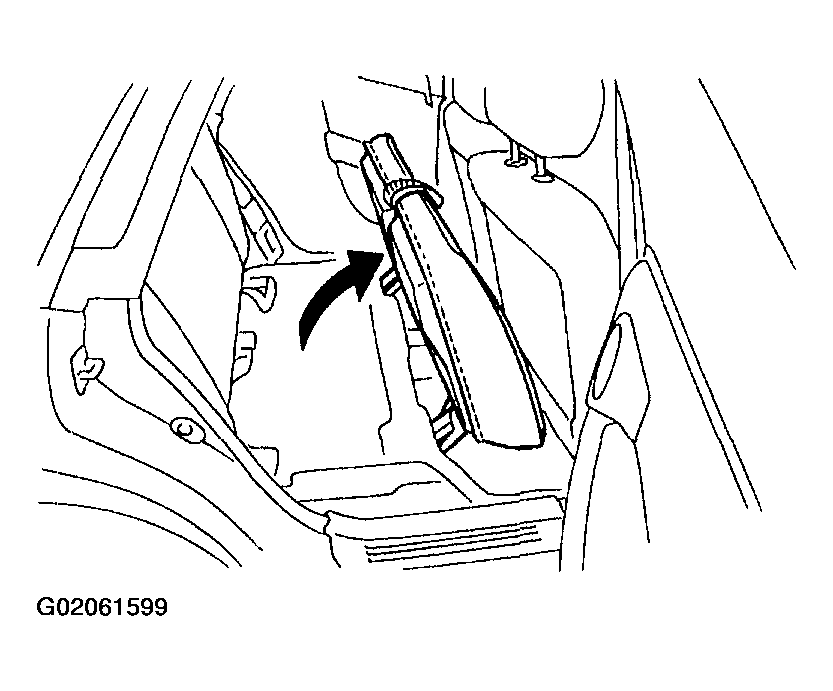

Move rear seat cushion forward. (Wagon model)

Fig 4: Moving Rear Seat Cushion Forward

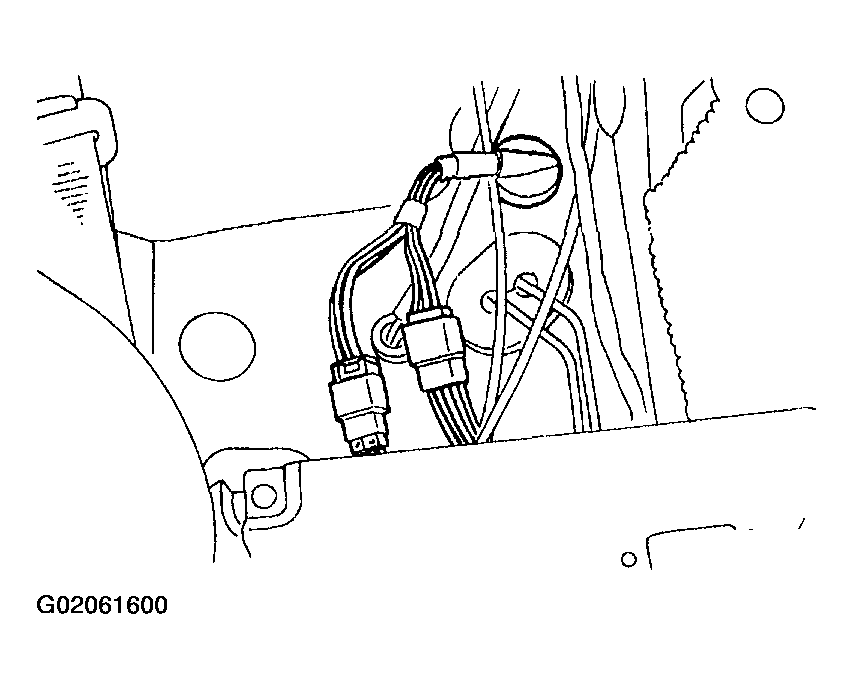

Disconnect connector of fuel tank cord from rear harness.

Fig 5: Disconnecting Connector Of Fuel Tank Cord From Rear Harness

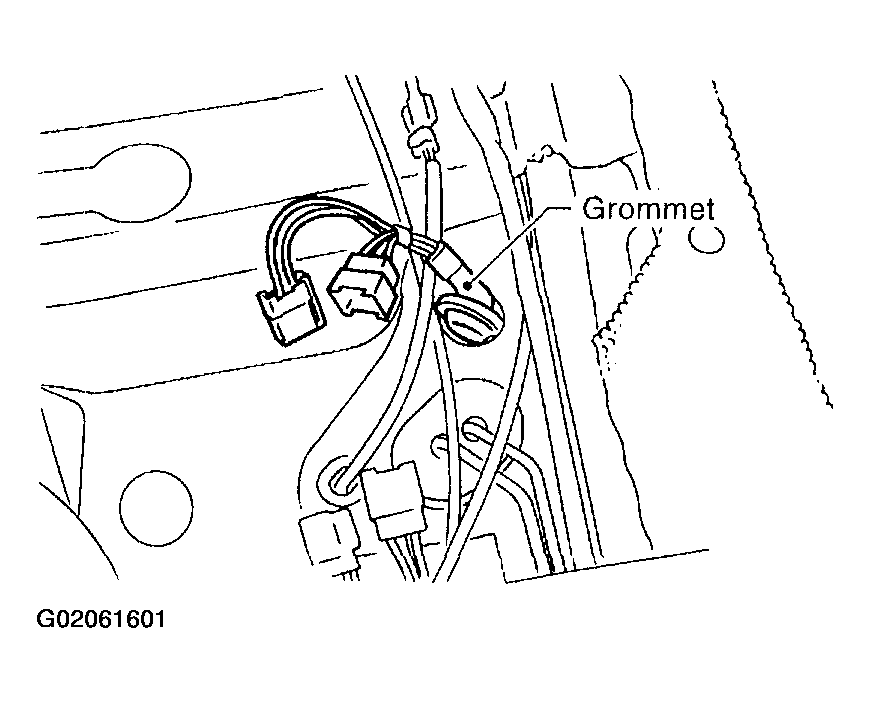

Push grommet which holds fuel tank cord on floor panel into the body side.

Fig 6: Pushing Grommet From Fuel Tank Cord On Floor Panel Into Body Side
Lift-up the vehicle.

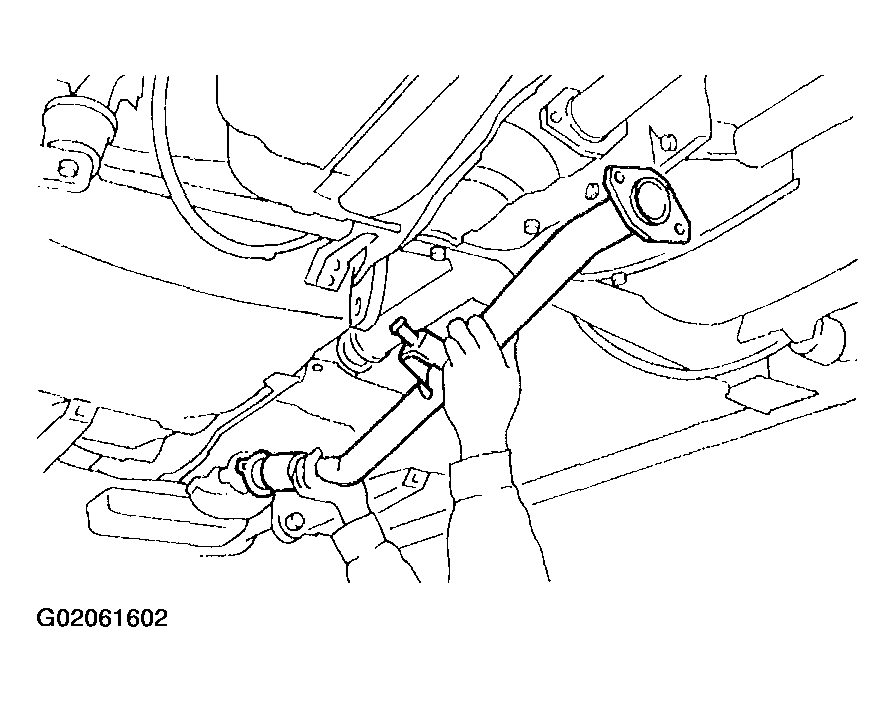

Remove rear exhaust pipe. See REMOVAL , Rear Exhaust Pipe.
NOTE: To facilitate the removal of parts, apply a coat of SUBARU CRC5-56 (Part No. 004301003).

Fig 7: Removing Rear Exhaust Pipe

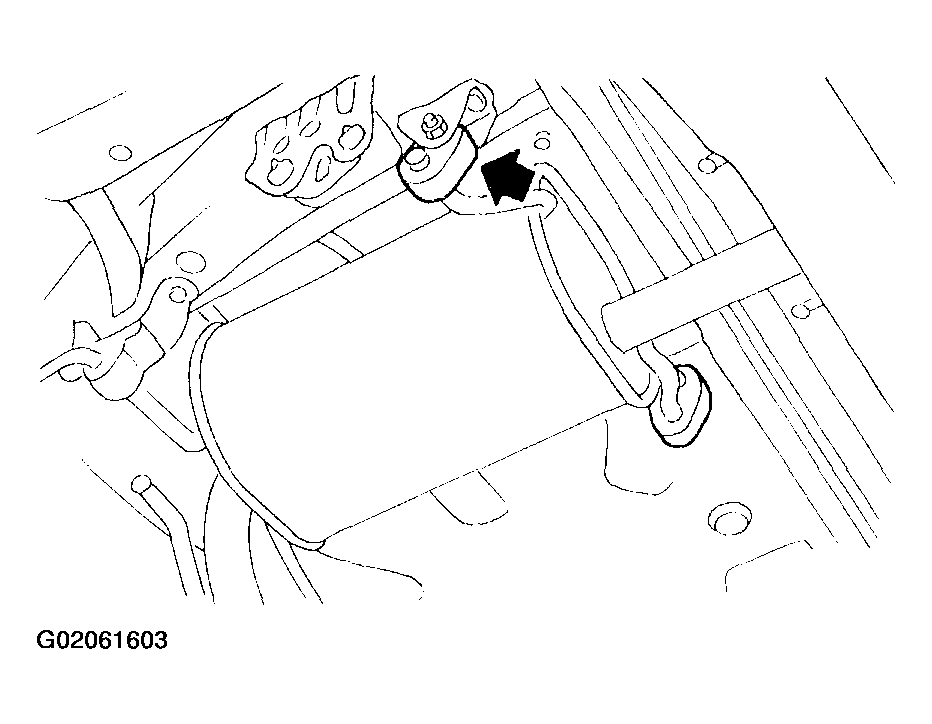

Remove muffler assembly. See REMOVAL , Muffler.
NOTE: To facilitate the removal of parts, apply a coat of SUBARU CRC5-56 (Part No. 004301003).

Fig 8: Removing Muffler Assembly
Remove heat sealed cover.

Fig 9: Removing Heat Sealed Cover
Move clamp, and disconnect evaporation hose from canister.

Fig 10: Disconnecting Evaporation Hose From Canister

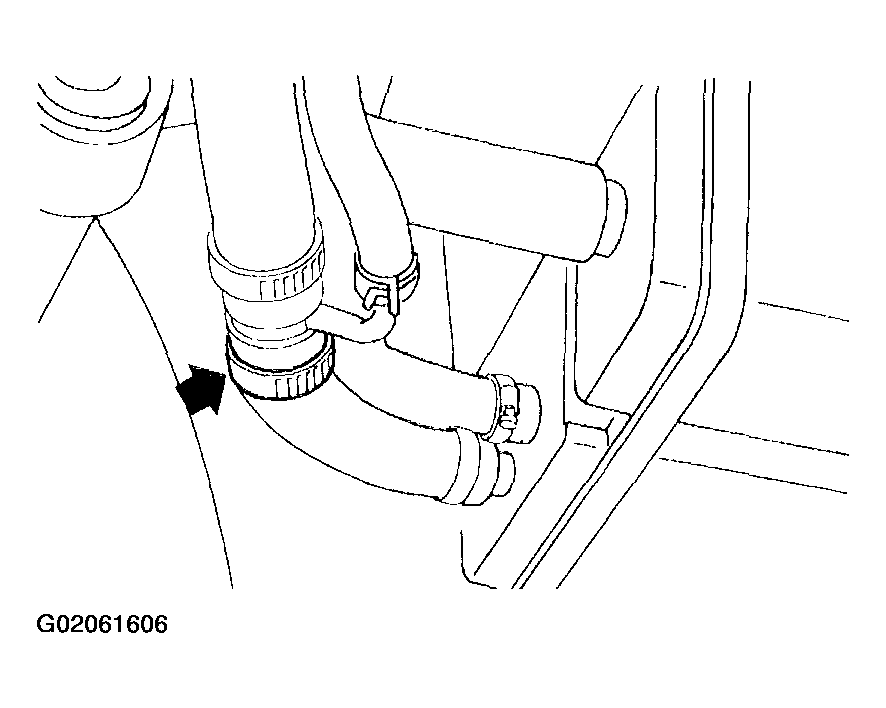

Disconnect hose from joint pipe.

Fig 11: Disconnecting Hose From Joint Pipe
Disconnect connector from pressure control solenoid valve.
Disconnect connector from drain valve.

Fig 12: Disconnecting Connector From Drain Valve
Disconnect hoses from roll over valve.

Fig 13: Disconnecting Hoses From Roll Over Valve

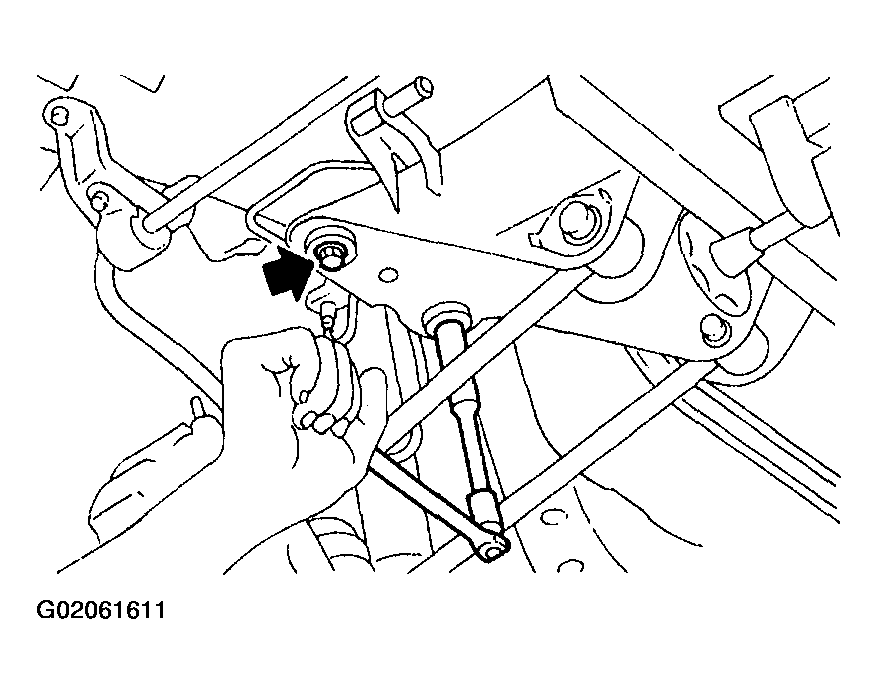

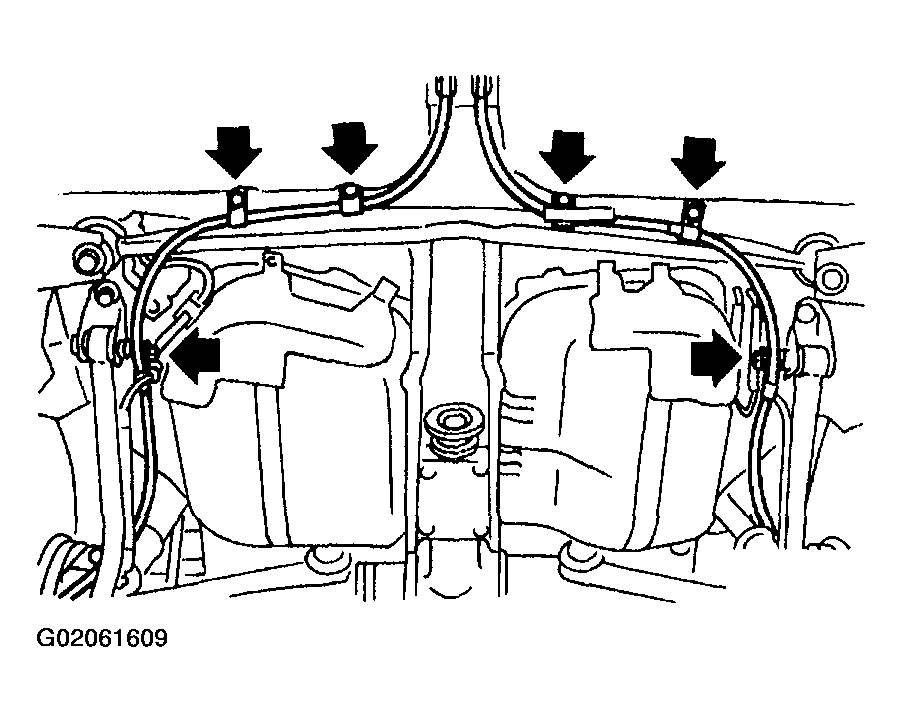

Remove bolts which hold parking brake cable holding bracket.

Fig 14: Removing Bolts From Parking Brake Cable Holding Bracket

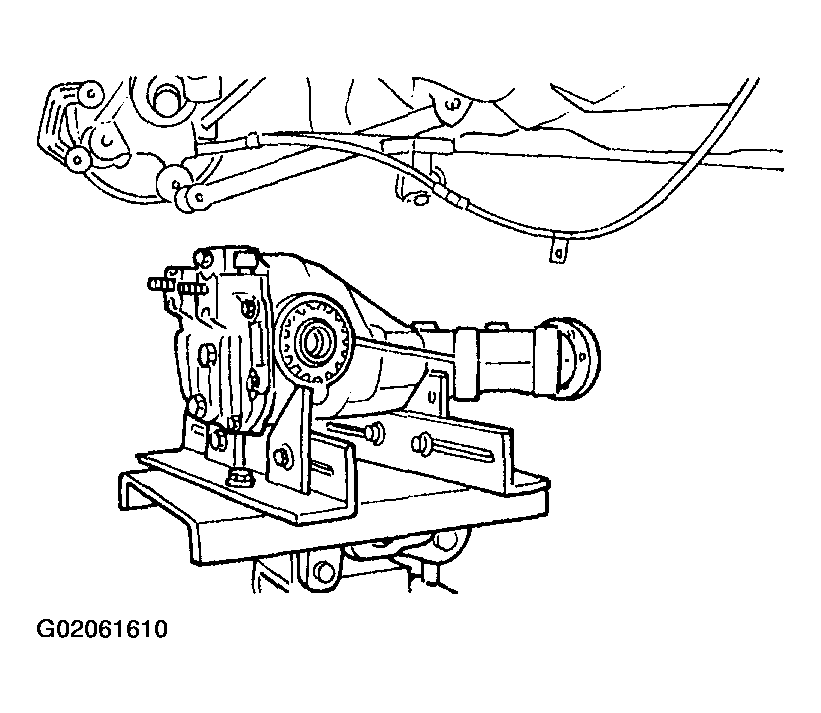

Remove rear differential assembly. See REMOVAL , Rear Differential for T-type or REMOVAL , Rear Differential for VA-type.

Fig 15: Removing Rear Differential Assembly
Remove rear crossmember. See REMOVAL , Rear Crossmember.

Fig 16: Removing Rear Crossmember

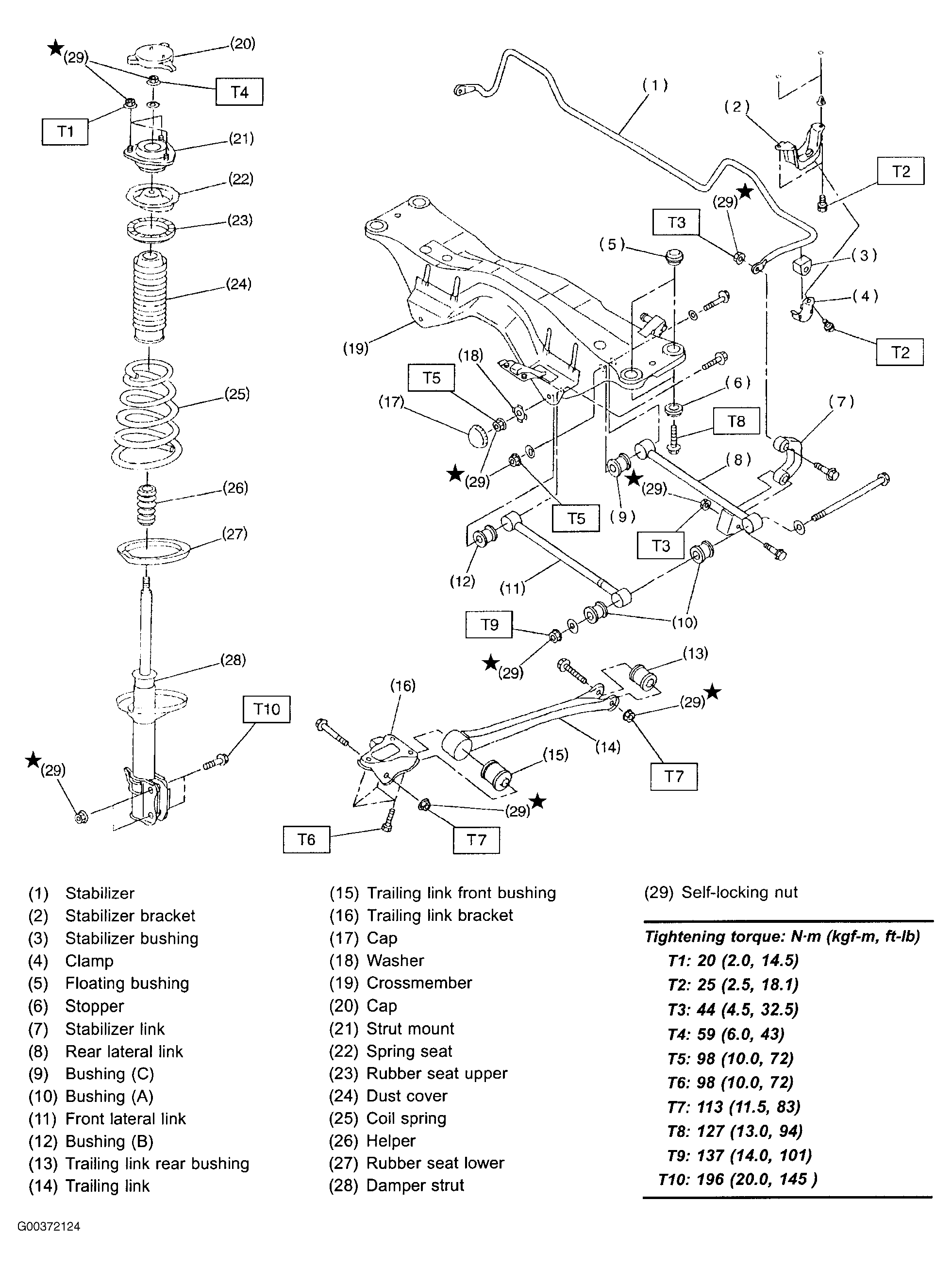

Fig 17: Identifying Rear Suspension Components
Courtesy of SUBARU OF AMERICA, INC.

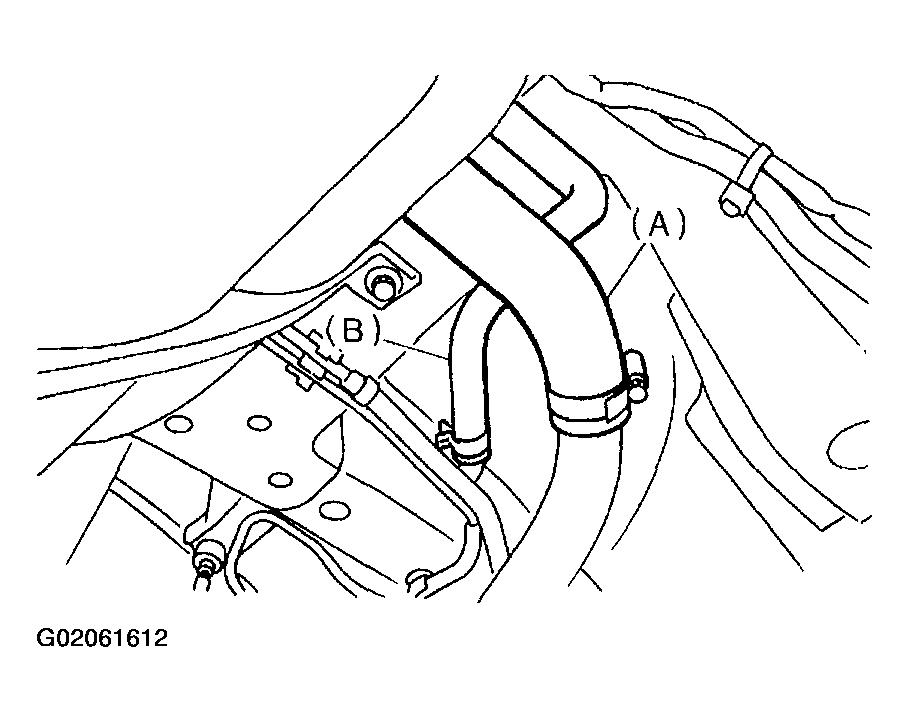

Loosen clamp, and disconnect fuel filler hose (A) and air vent hose (B) from fuel filler pipe and air vent pipe.

Fig 18: Disconnecting Fuel Filler Hose & Air Vent Hose From Fuel Filler Pipe & Air Vent Pipe
Move clips, and disconnect fuel return hose (B) and evaporation hose (C).
Disconnect quick connector, and then disconnect fuel delivery hose (A).

Fig 19: Disconnecting Fuel Delivery Hose

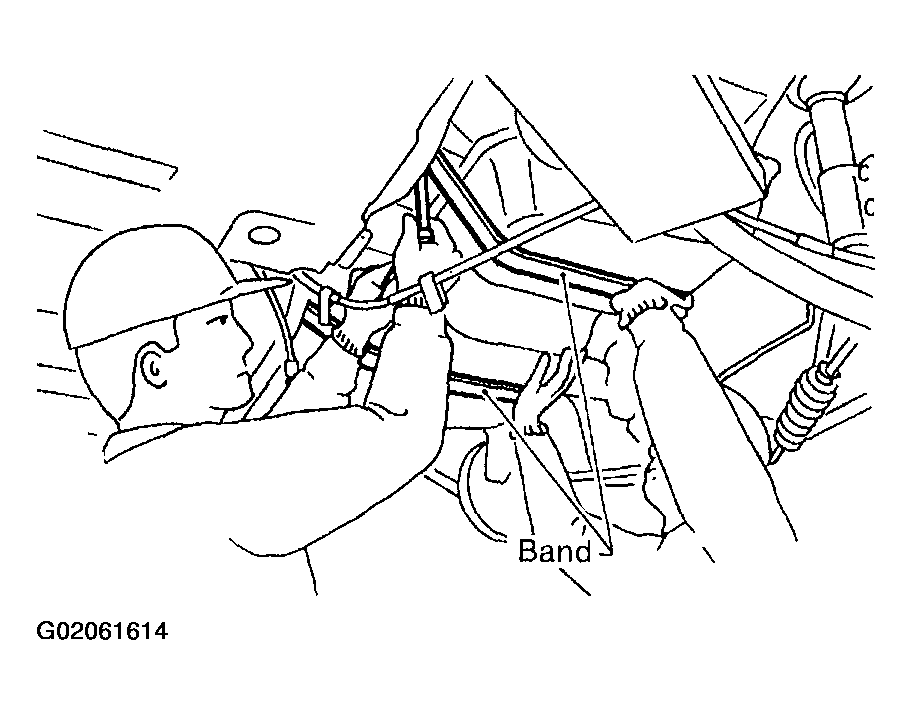

While holding fuel tank, remove bolts from bands and dismount fuel tank.
WARNING: A helper is required to perform this work.

Fig 20: Removing Bolts From Bands & Dismount Fuel Tank
