Fuel Pump: Removal

  1. Release fuel pressure. See RELEASING OF FUEL PRESSURE  , FUEL.
  2. Open fuel flap lid, and remove fuel filler cap.

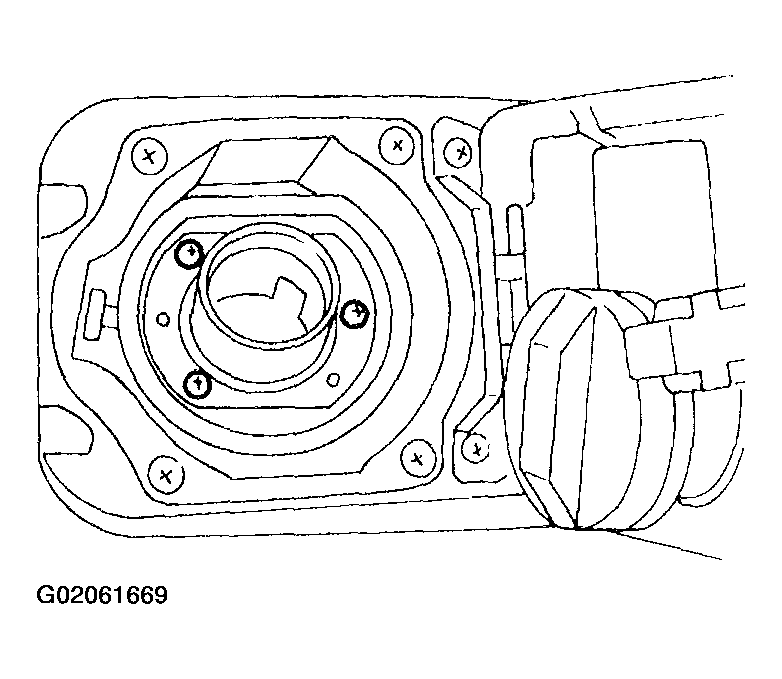

    Fig 1: Removing Fuel Filler Cap
    G02061669
  3. Disconnect battery ground cable.

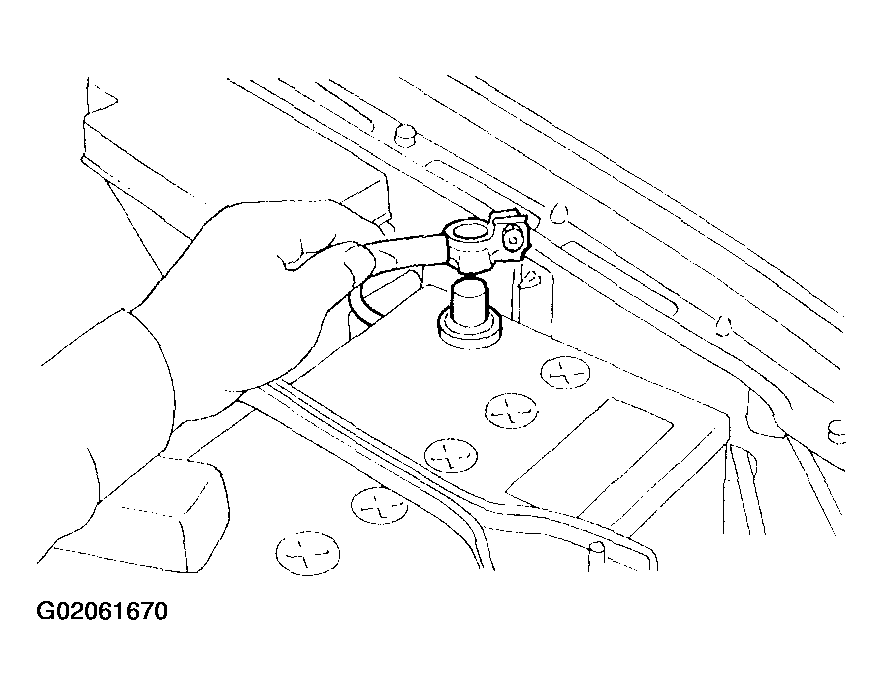

    Fig 2: Disconnecting Battery Ground Cable
    G02061670
  4. Disconnect connector from fuel pump.

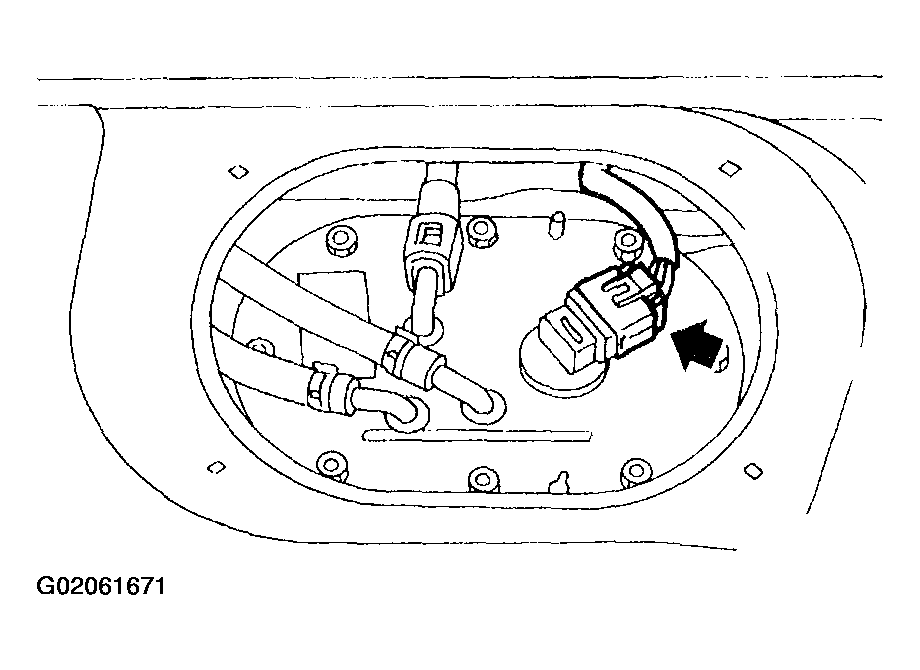

    Fig 3: Disconnecting Connector From Fuel Pump
    G02061671

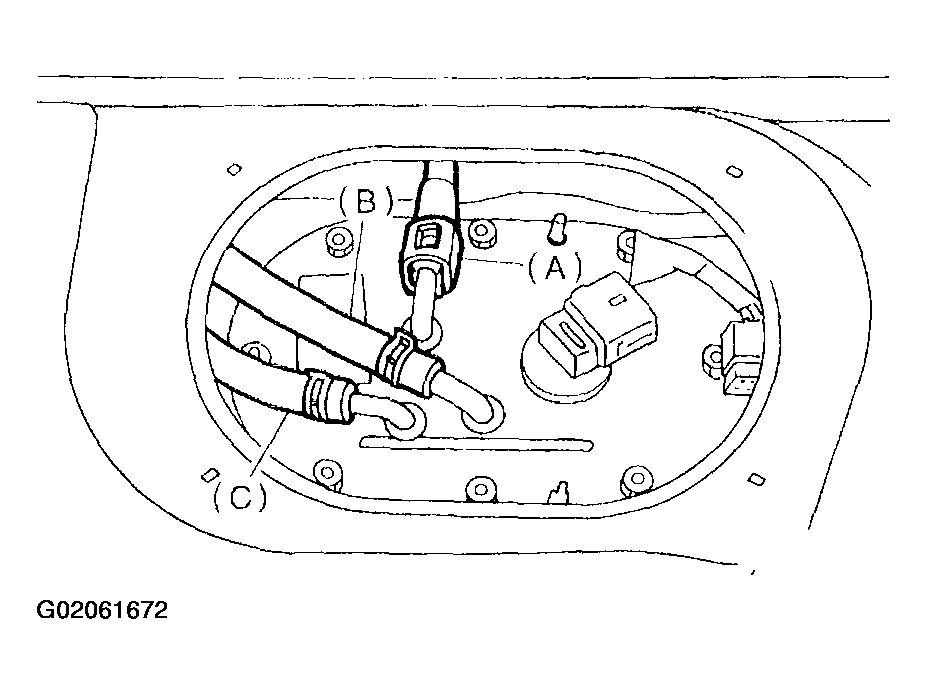

  5. Move clips, and then disconnect fuel delivery hose (A), return hose (B) and jet pump hose (C).
  6. Disconnect quick connector, and then disconnect fuel delivery hose.
    Fig 4: Disconnecting Fuel Delivery Hose
    G02061672
  7. Remove nuts which install fuel pump assembly onto fuel tank.
  8. Take off fuel pump from fuel tank.
    Fig 5: Removing Fuel Pump From Fuel Tank
    G02061673
