Fuel Level Sensor: Removal

NOTE: Fuel level sensor is built in fuel pump assembly.
  1. Release fuel pressure. See RELEASING OF FUEL PRESSURE  , FUEL.
  2. Open fuel flap lid, and remove fuel filler cap.

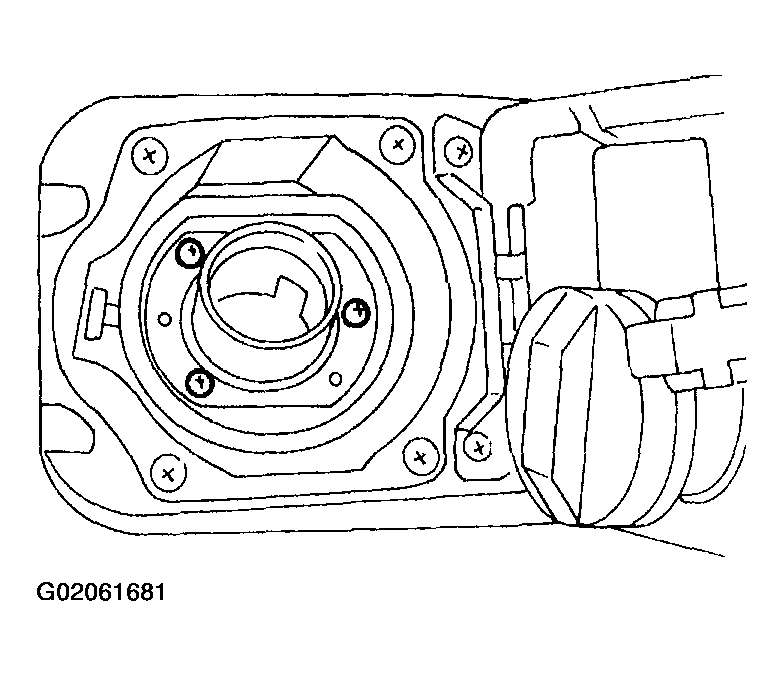

    Fig 1: Removing Fuel Filler Cap
    G02061681
  3. Disconnect battery ground cable.

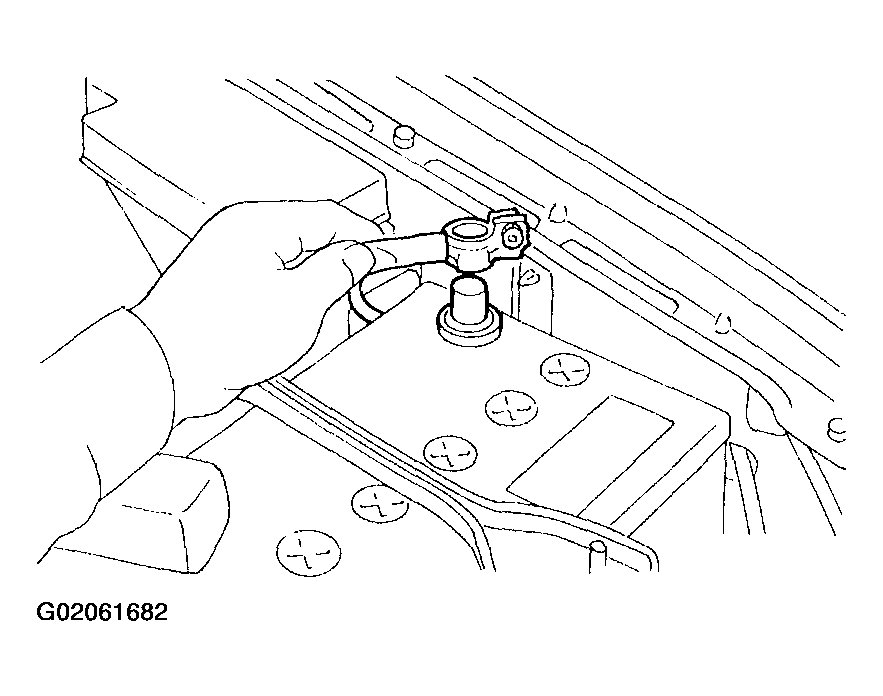

    Fig 2: Disconnecting Battery Ground Cable
    G02061682
  4. Disconnect connector from fuel pump.

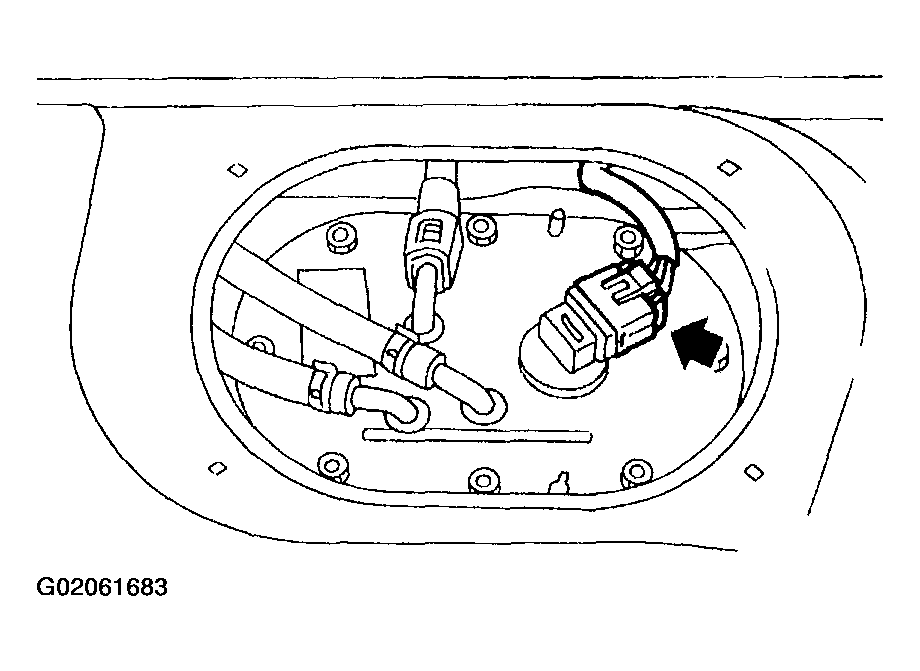

    Fig 3: Disconnecting Connector From Fuel Pump
    G02061683
  5. Move clips, and then disconnect fuel return hose (B) and jet pump hose (C).
  6. Disconnect quick connector, and then disconnect fuel delivery hose.

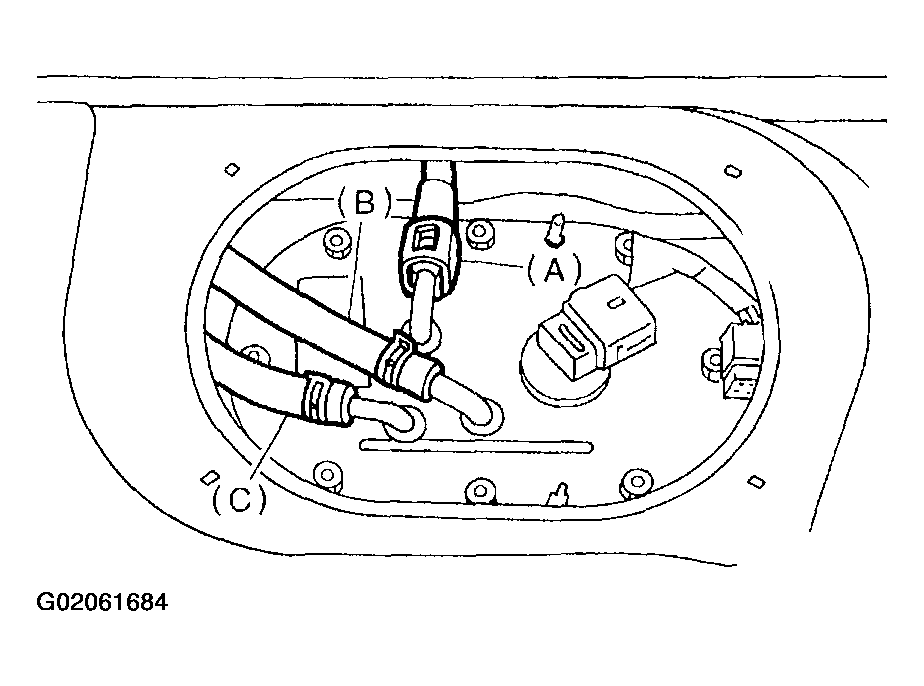

    Fig 4: Disconnecting Quick Connector
    G02061684
  7. Remove nuts which install fuel pump assembly onto fuel tank.
  8. Take off fuel pump assembly.
  9. Disconnect connector from fuel pump bracket.

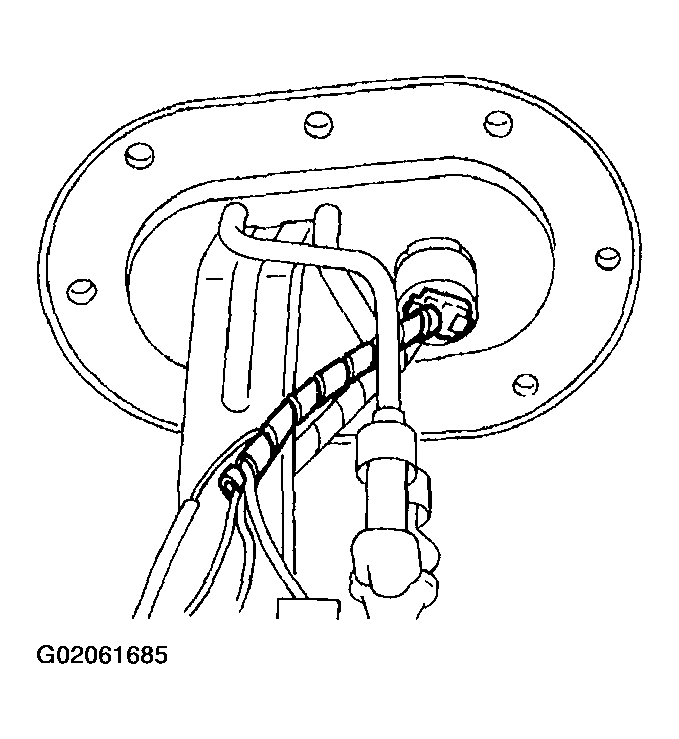

    Fig 5: Disconnecting Connector From Fuel Pump Bracket
    G02061685
  10. Remove bolt which installs fuel level sensor on mounting bracket.

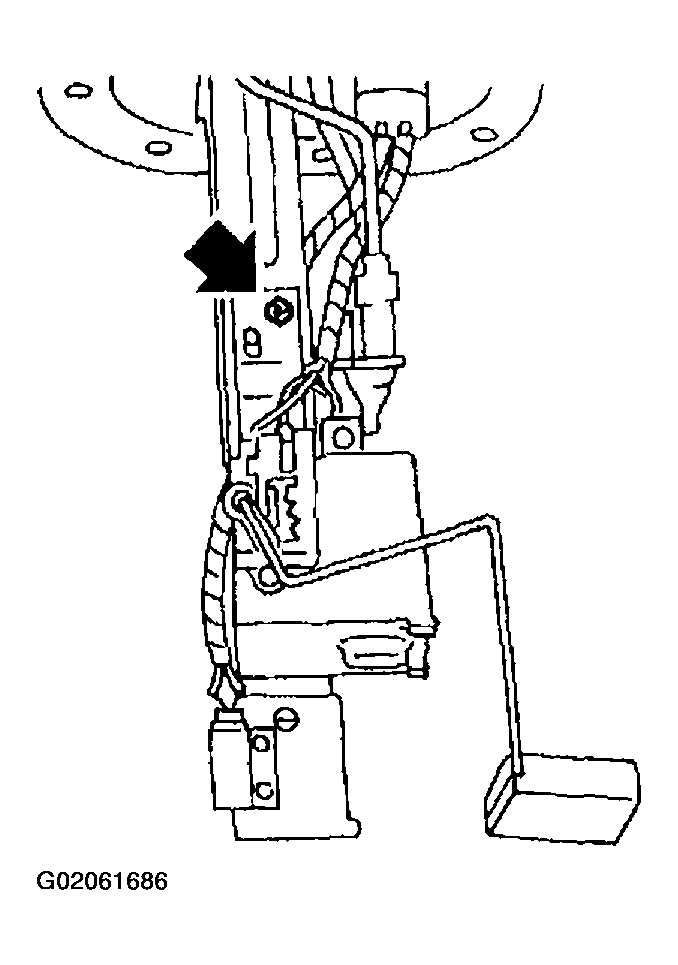

    Fig 6: Removing Bolt From Fuel Level Sensor On Mounting Bracket
    G02061686
